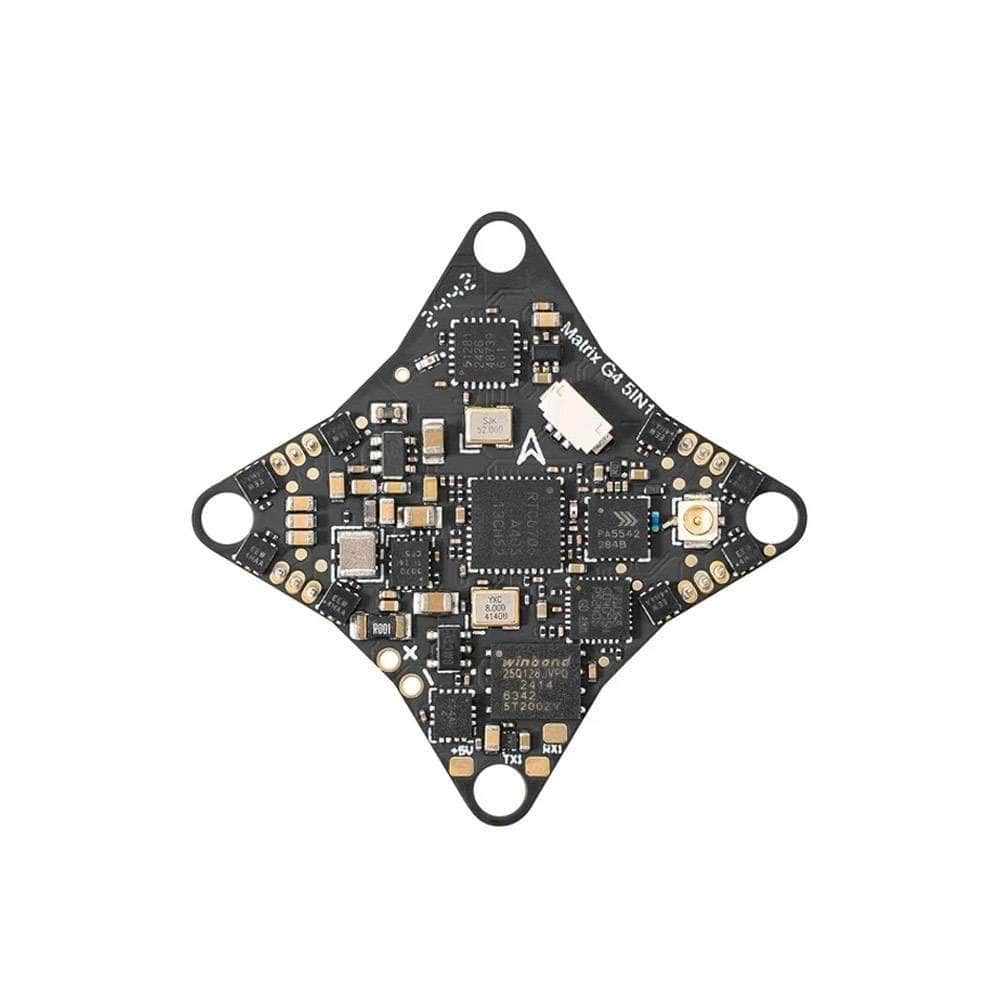

BETAFPV Matrix 5-in-1 AIO - G4 FC + 1S ESC + 400mW VTX + ELRS RX + OSD

BETAFPV Matrix 5-in-1 AIO - G4 FC + 1S ESC + 400mW VTX + ELRS RX + OSD

$49.99
$49.99 - $49.99
$49.99 - $49.99
$49.99
In Stock
Add to Wishlist
Ask a Question

Details

Description

Introducing the BETAFPV Matrix 1S Brushless AIO! This user-friendly, integrated solution has a durable 1mm-thick board and built-in motor plug makes for easy repairs. Upgraded with a G473 processor, it offers a 55% performance boost over the F411 for precise racing and freestyle control. The premium 5.8GHz 400mW VTX ensures stable, high-quality video transmission.

Check out all our whoop flight controllers, and all our BetaFPV gear!

Features

  • Stable, High-Quality Video Transmission
  • Premium Video Transmission
  • Upgraded Performance
  • Simplified Installation
  • G473 Processor
  • Built Tough

MATRIX AIO

The Matrix 1S Brushless Flight Controller is crafted for beginners and casual pilots, offering enhanced durability with its thicker board and requiring no welding, making it perfect for entry-level users. As a result, it is slightly heavier than the Air Brushless Flight Controller 5IN1 version. For advanced FPV pilots seeking a more responsive, race-oriented experience, the Air Brushless FC 5IN1 version is highly recommended. Both the Matrix 1S Brushless FC and the Air Brushless FC 5IN1 version have undergone rigorous testing and meet competition-grade standards.

Specifications

ELECTRONIC SPEED CONTROLLER (ESC)

  • ESC Firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay firmware
  • Digital Signal Protocol: DShot300, DShot600
  • Current: 5A continuous, 8A peak
  • Power Input: 1S only

VIDEO TRANSMITTER (VTX)

  • Frequency: 5.8GHz, 48 channels, with Raceband: 5658~5917MHz
  • Operating Temperature: -10°C to +80°C
  • Frequency Precision: ±200KHz (Typical)
  • Frequency Stability: ±100KHz (Typical)
  • Output Power: 25/100/200/400/PIT
  • Channel Carrier Error: ±1.5dB
  • Channel SEL: SmartAudio 2.0
  • All Harmonic: Max -50dBm
  • Frequency Control: PLL
  • Modulation Type: FM
  • Antenna Port: 50 Ω

FLIGHT CONTROLLER (FC)

  • UART: UART 1, UART 2 (for VTX), UART 3 (for RX), UART 4
  • FC Firmware: Betaflight_4.5.0_BETAFPVG473
  • VTX: 5.8GHz, 48 channels, Max 400mW
  • Mounting Hole Size: 26mm × 26mm
  • RX: Serial ELRS 2.4GHz (V3.4.3)
  • BetaFlight OSD: AT7456E
  • Battery Connector: BT2.0
  • Sensor: Voltage & Current
  • MCU: STM32G473CEU6
  • Blackbox Memory: 16MB
  • USB Port: SH1.0-4Pin
  • Motor Plug: JST1.25
  • ESC: 5A continuous
  • Gyro: ICM42688P
  • Weight: 3.92±0.1g
  • BEC: 5V, Max 3A

Includes

  • 1x BETAFPV Matrix 5-in-1 AIO - G4 FC + 1S ESC + 400mW VTX + ELRS RX + OSD
  • 1x SH1.0-4Pin Adapter Cable
  • 1x Type-C to SH1.0 Adapter
  • 4x Shock Absorbing Balls
  • 1x Hardware Kit

More Information:

  • SKU: 22742
  • Barcode: 723326370014
