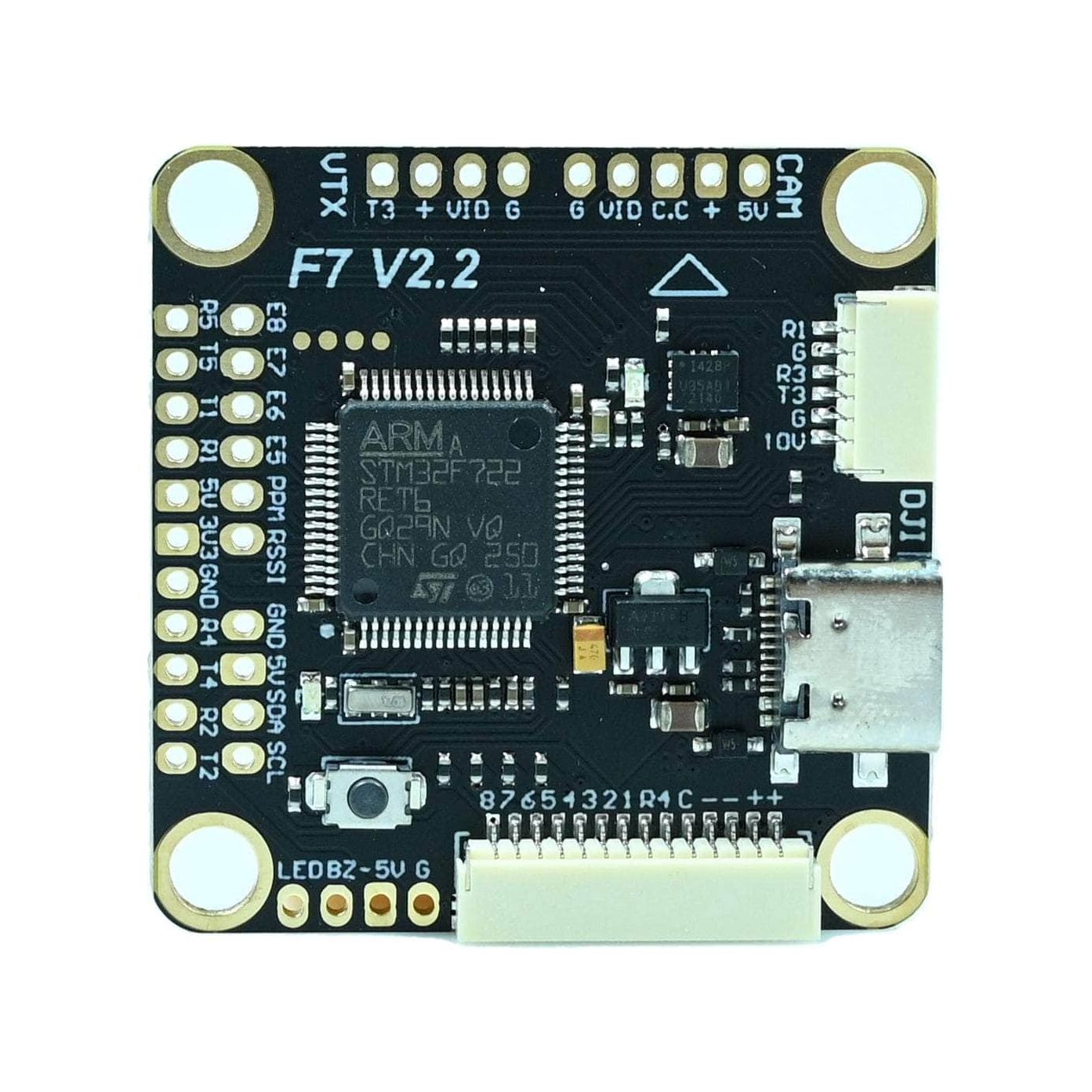

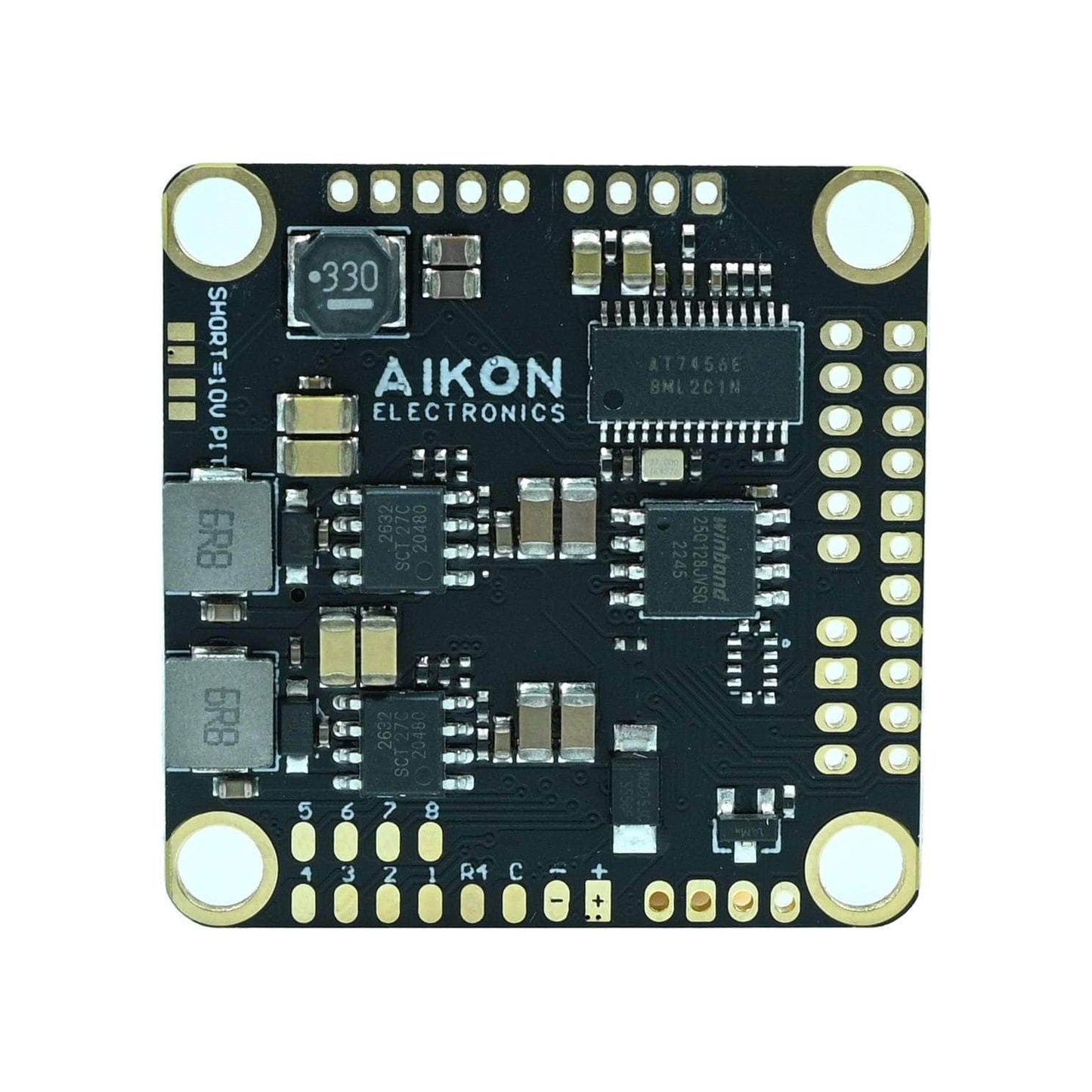

Aikon F7 3030 V2.2 HD 2-6S 30x30 Octo Flight Controller

Description

The Aikon flight controller is a new generation flight controller designed specifically to work with our Aikon 8-in-1 ESCs. We've packed all the greatest features into one seamless flight experience.

Check out all our 30x30 FCs, our DJI compatible gear section, and all our Aikon gear!

Features

• 216mhz F7 processor
• 5 Software invertible hardware UARTS
• Onboard OSD and blackbox
• Software controlled VTX power switch (assigned to USER1 mode by default)
• LED and buzzer outputs (LED input doubles as PPM)
• Quick connection cable for 8-in-1 ESCs
• Quick connection cable for DJI HD system
• On-board high overhead voltage regulators rated up to 6S (50v peak to handle voltage spikes)
• 10v 1.5A voltage regulator for DJI HD system
• USB Type C connector for easy programming

Specifications

• Battery: 2-6s
• Mount Holes: 30.5x30.5mm
• Firmware: Betaflight AIKONF7 Target
• MCU: STM32F722
• IMU: BMI270 (Interrupt pin connected)
• Blackbox: SPI 16MB
• Motor Outputs: Up to 8
• Weight: 12g

Includes

• 1x Aikon F7 3030 V2.2 HD 30x30 Octo Flight Controller
