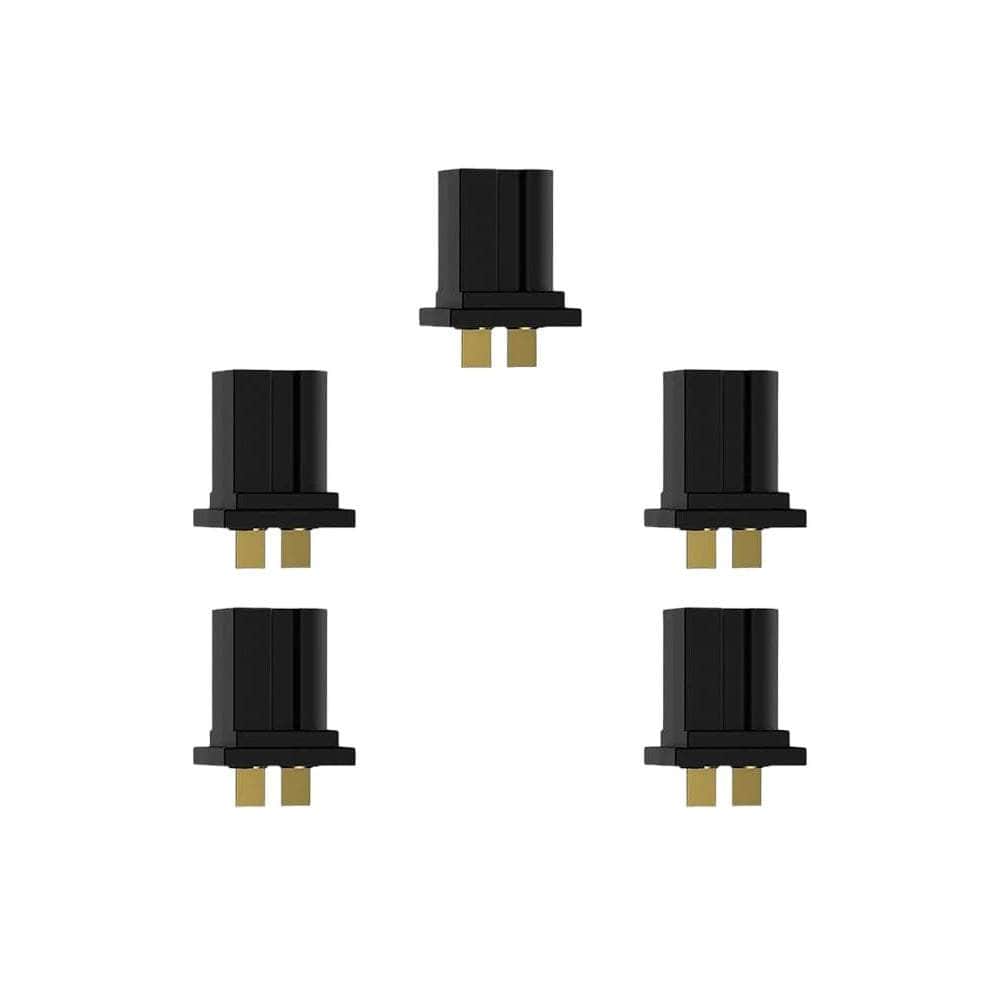

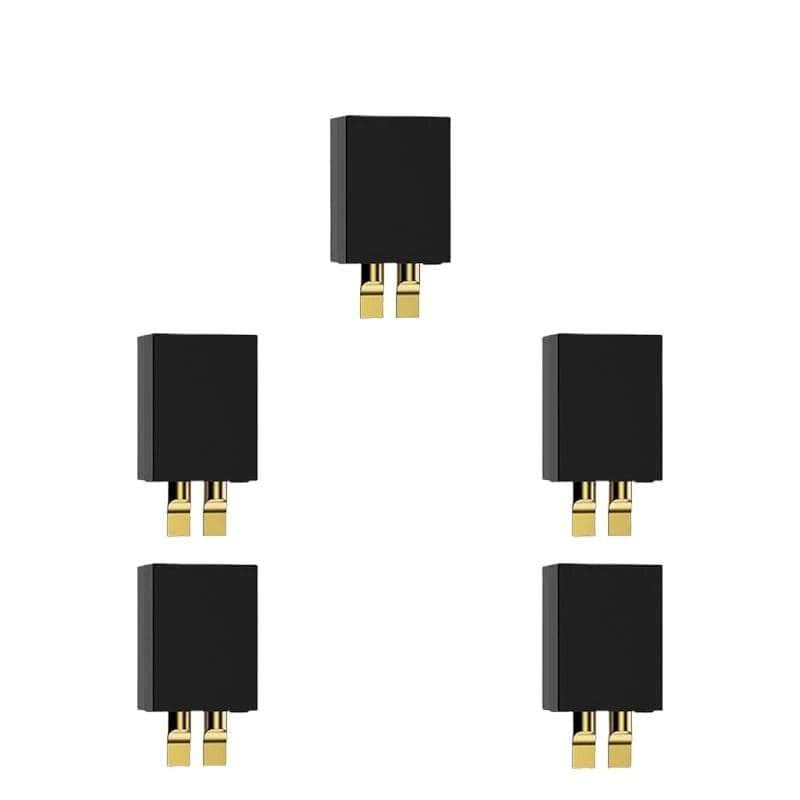

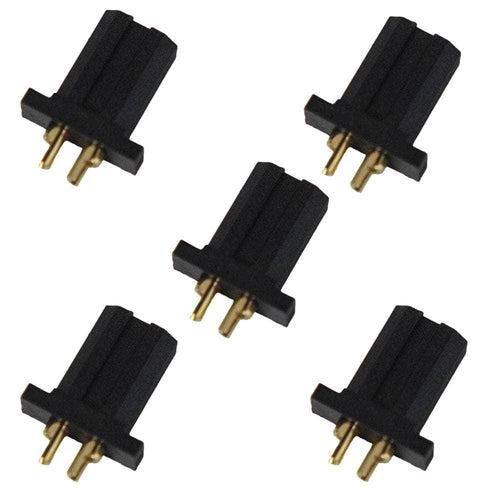

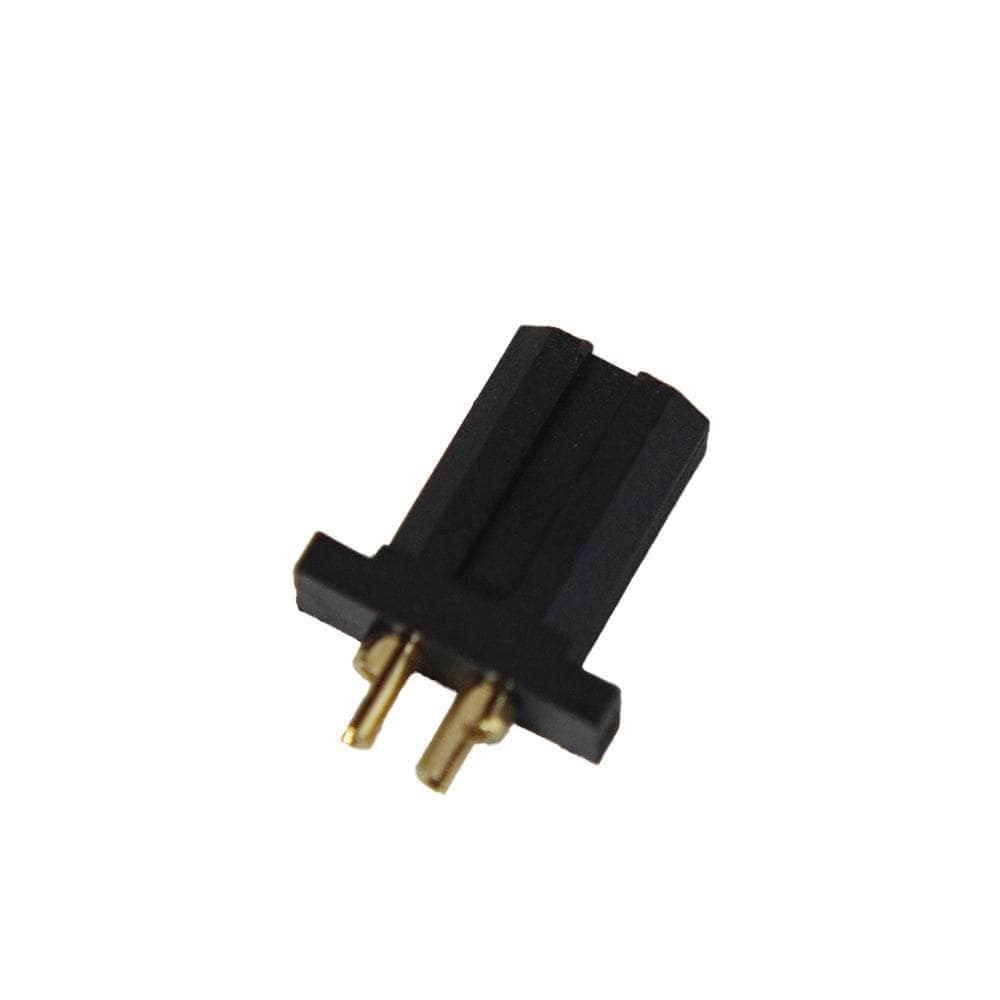

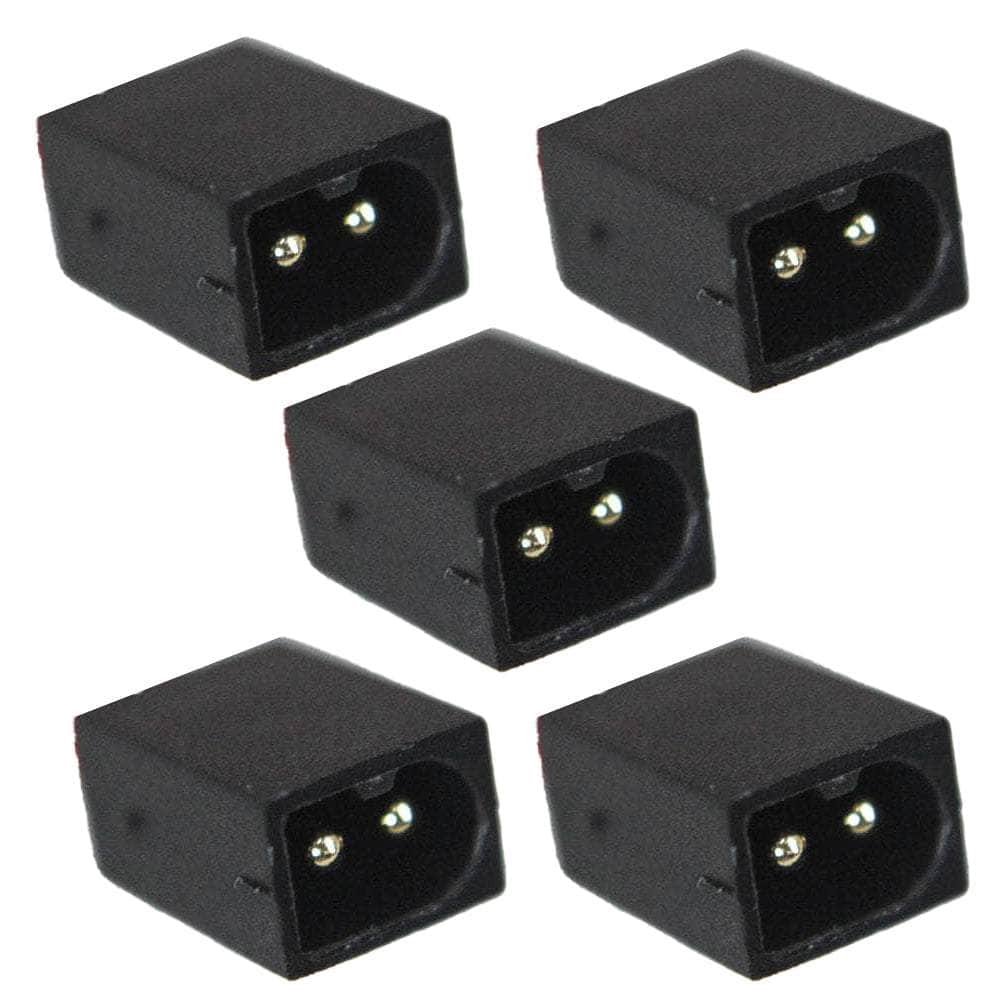

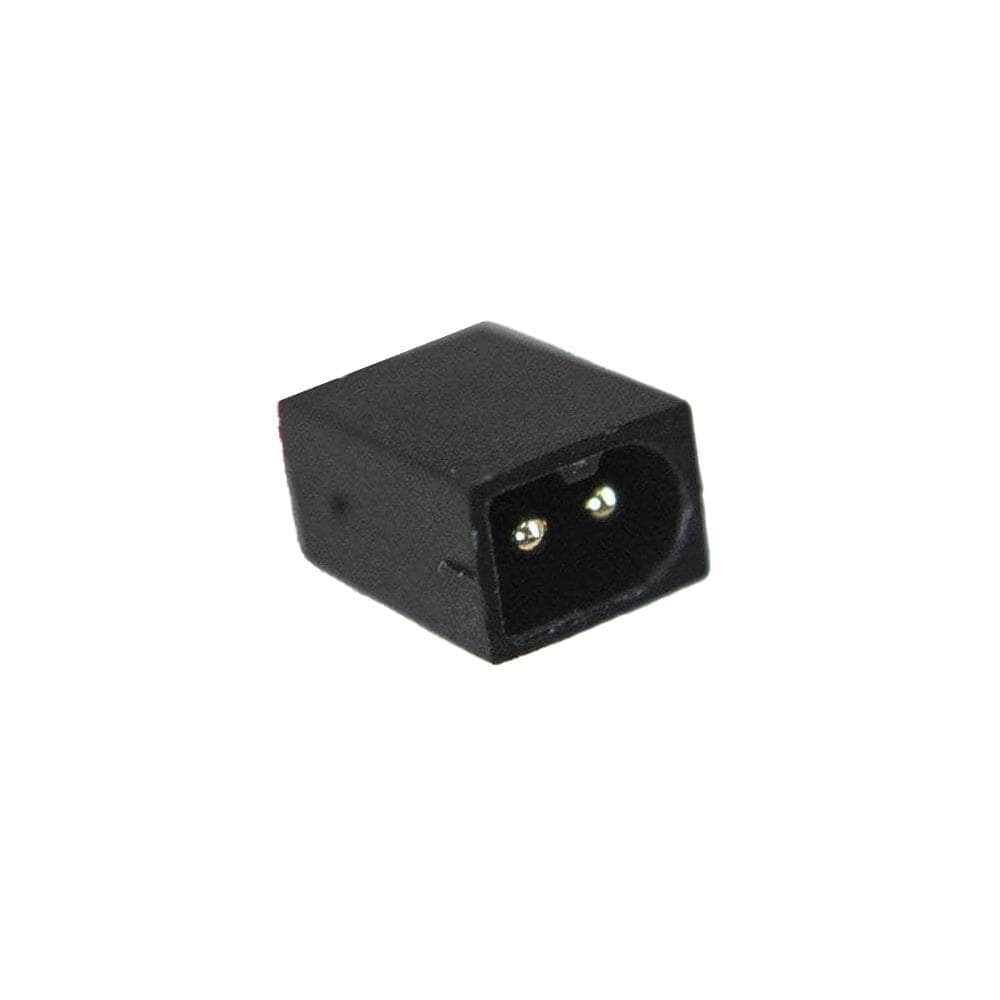

Flywoo A30 Connector Male/Female Set (5 set)

$5.99
Original price $5.99 - Original price $5.99
Original price
$5.99 - $5.99
Current price $5.99
Out Of Stock
Add to Wishlist
Ask a Question

Details

Description

Flywoo A30 Connectors provide a strong and reliable connection up to 15A of continuous current. This set includes 5 MALE and 5 FEMALE connectors, ideal for high current applications. Make sure your connection is secure with the Flywoo A30 Connectors.

Check out all our pigtails and connectors as well as our products from Flywoo!

Specifications

  • Model: A30
  • Plug color: Black
  • Peak Discharge Rate: 30A
  • Standard Current: 15A
  • Contact Impedance 1.6mO
  • Withstand voltage: DC 500V
  • Flame Retardant rating: UL94 VO
  • Metallic Material: Brass gliding
  • Insulating material: Brass gliding
  • Wire: 20#/22#
  • Operating temperature: -20 to 120 °C
  • Applications: Chargers/Battery

Includes

  • 1x  Flywoo A30 Connector Male/Female Set (5x Male Connectors/ 5x Female Connectors)

More Information:

  • SKU: 20793
  • Barcode: 691023530317
