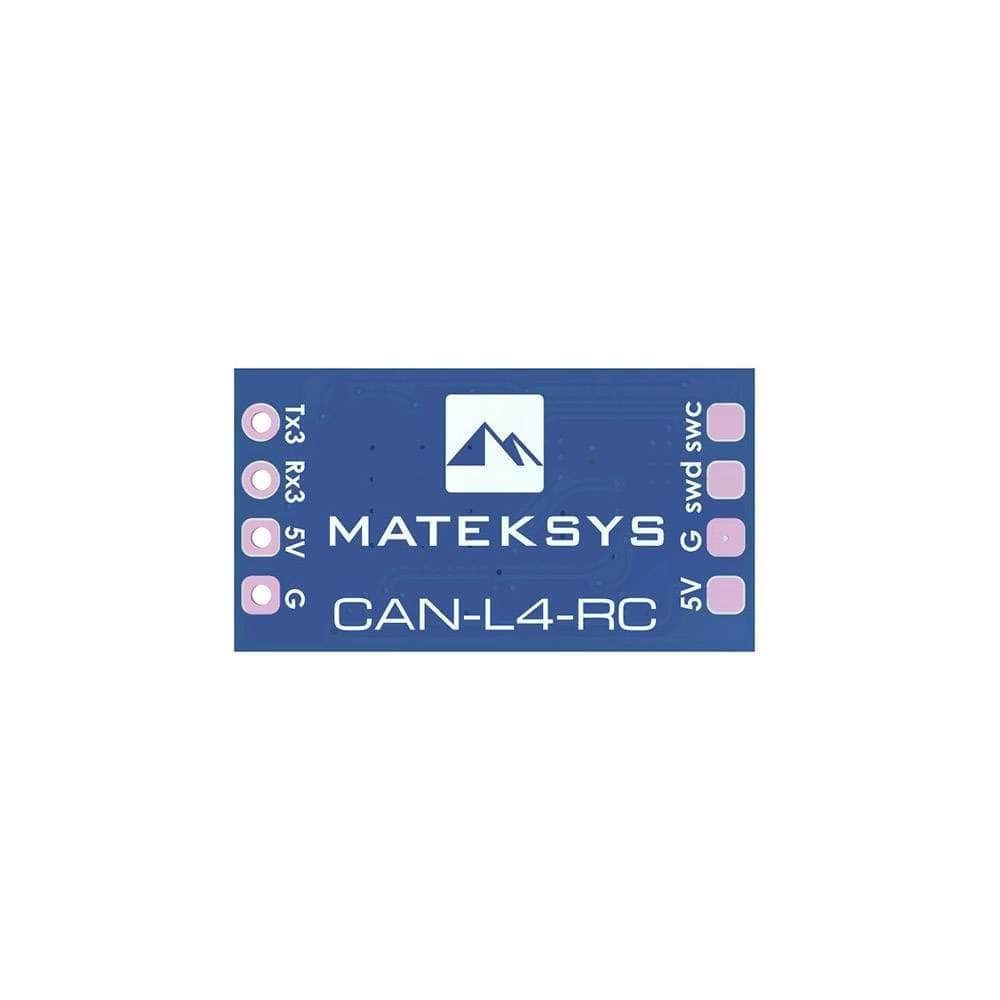

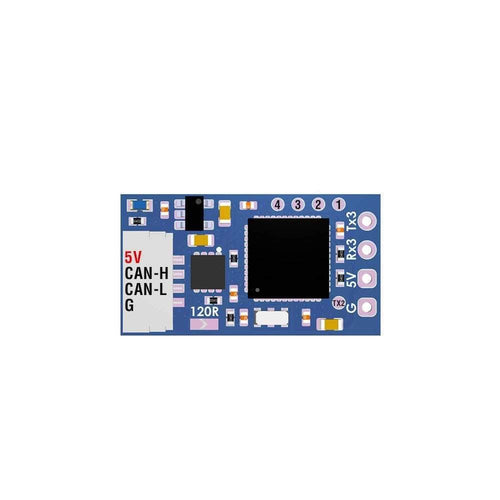

MATEKSYS AP_Periph CAN RC Input Adapter Node

Description

The MATEKSYS AP_Periph CAN RC Input Adapter Node is a compact module for integrating RC input with DroneCAN systems. Powered by the STM32L431 MCU with 256KB Flash, it offers efficient processing and reliable connectivity through a CAN port and a dedicated UART3 port. Its durable design is suitable for rugged environments. Easily update firmware via the DroneCAN GUI Tool.

Check out all our GPS modules, and our full line of Matek products!

Features

• Wide Operating Temperature Range

• Rugged Environment Compatibility

• Seamless Communication

• Low Power Consumption

• High-Performance MCU

• Easy Firmware Updates

• Versatile Input Options

• Durable Construction

• Compact Design

Specifications

• MCU: STM32L431xC, 256KB Flash

• CAN: 1x, DroneCAN Protocol

• UART: 1x (UART3, Tx3/Rx3)

• ST Debug: SWCLK & SWDIO


PHYSICAL

• Connector: 1x JST-GH-4P (SM04B-GHS-TB) for CAN

• Board Size: 23mm x 12.5mm, Weight: 2.5g

• UART3: 2.54mm pitch holes


POWER

• Input Voltage Range: 4.5–5.5V @ 5V pad/pin

• Operating Temperature: -40 to 85 °C

• Power Consumption: 10mA


FIRMWARE

• Firmware Update: Via DroneCAN GUI Tool

• ArduPilot AP_Periph: MatekL431-RC


LED INDICATORS

• Blue (Fast Blinking): Booting

• Blue (Slow Blinking): Working

Includes

• 1x MATEKSYS AP_Periph CAN RC Input Adapter Node

• 1x JST-GH-4P to JST-GH-4P 20cm Silicone Wire
