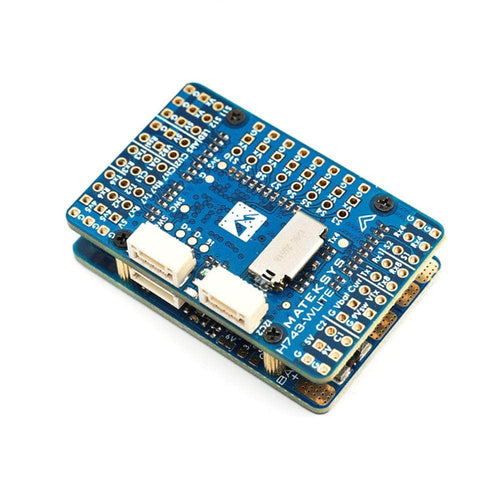

Matek H743-WLITE Wing Flight Controller

$89.99
Original price $89.99 - Original price $89.99
Original price
$89.99 - $89.99
Current price $89.99
In Stock
Add to Wishlist
Ask a Question

Details

Description

Matek has done it again with another top of the line wing FC. You won't find any better quality in the wing game. These parts are trusted by even the most experienced pilots.

Check out our other wing flight controllers, as well as the rest of our Matek selection!

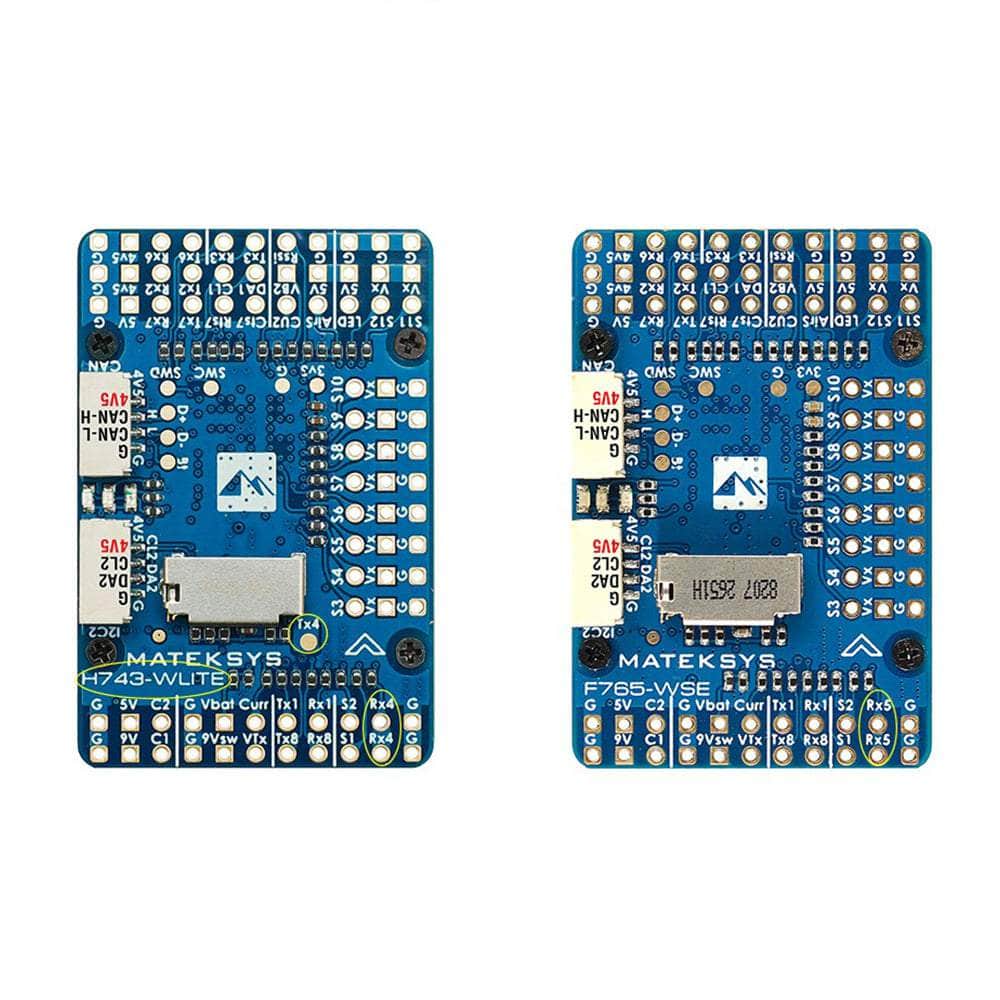

Specifications

  • Input Voltage: 2-6S
  • MCU: STM32H743VIH6, 480MHz , 512KB RAM, 2MB Flash
  • IMU: ICM42688-P
  • Baro: DPS310 (I2C2)
  • OSD: AT7456E
  • Blackbox: MicroSD card slot (SDIO)
  • Uarts: 7 (1,2,3,4,6,7,8) with built-in inversion.
  • PWM Outputs: 13(12+LED)
  • ADC: Yes (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
  • Status LED: Yes
  • I2C: Yes (2)
  • CAN: Yes
  • Dual Camera Inputs Switch: Yes
  • High-precision Current Sense: 220A range
  • ADC VB2 voltage divider: 1K:20K
  • ADC AirSpeed voltage divider: 20K:20K
  • FC Firmware: Matek H743
  • Mounting Pattern: 25x25mm M2
  • Dimensions: 44x29x14.5mm
  • Weight: 22g

BEC Specifications

BEC 5V output

  • Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
  • Continuous current: 2 Amps, Max.3A

BEC 9V /12V output

  • Designed for Video Transmitter, Camera, Gimbal ect.
  • Continuous current: 2 Amps, Max.3A
  • 12V option with Jumper pad
  • for stable 9V/12V output, input voltage should > output voltage +1V

BEC Vx output

  • Designed for Servos
  • Voltage adjustable, 5V Default, 6V or 7.2V via jumper
  • Continuous current: 8 Amps, Max.10A
  • for stable Vx output, input voltage should > Vx voltage +1V

BEC 3.3V output

  • Designed for Baro / Compass module and external 3.3V peripherals
  • Linear Regulator
  • Continuous current: 200mA

Includes

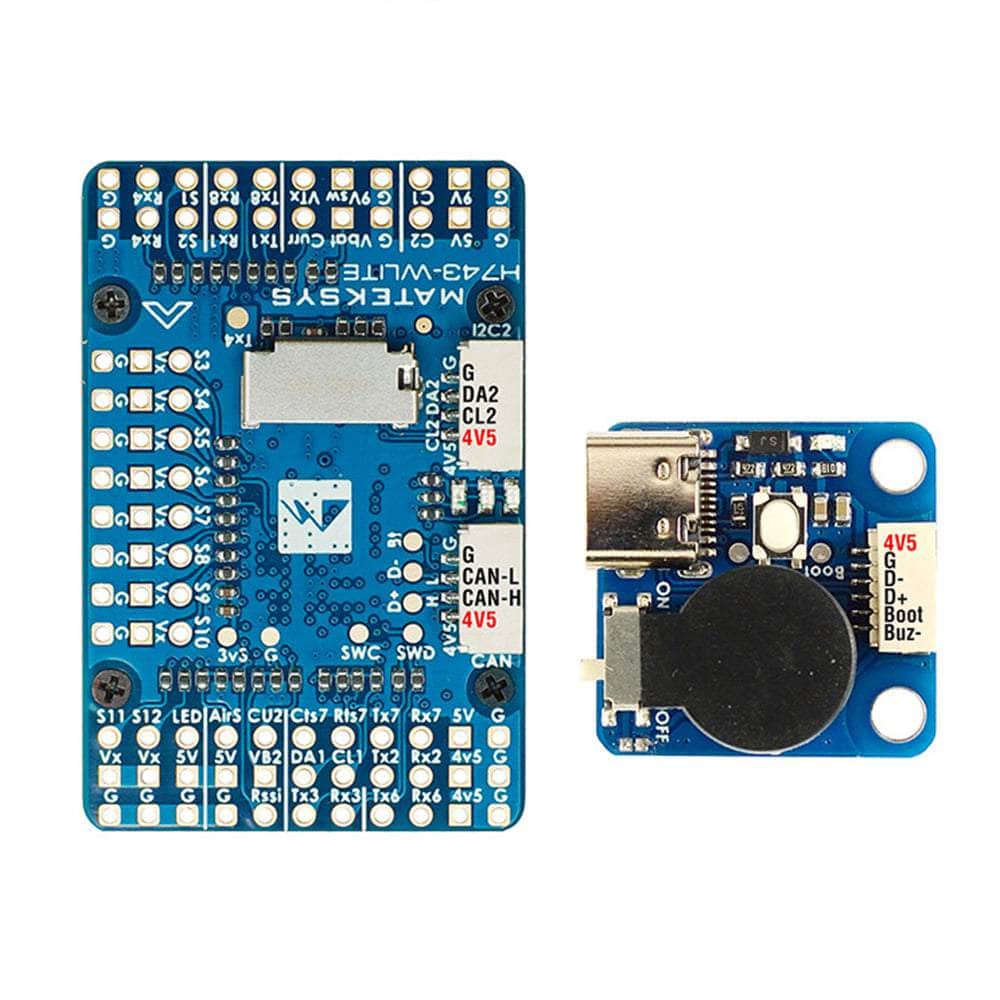

  • 1x Matek H743-WLITE Wing Flight Controller
  • 1x USB(Type-C)/Beep (Passive buzzer) Extender
  • 1x 20cm JST-SH-6P to JST-SH-6P cable for USB extender
  • 2x 20cm JST-GH-4P to JST-GH-4P cable for CAN & I2C port
  • 1x Rubycon ZLH 35V 470uF capacitor
  • 1x Set of Dupont 2.54 pins

Wiring Diagram

More Information:

  • SKU: 19034
  • Barcode: 691023525269
