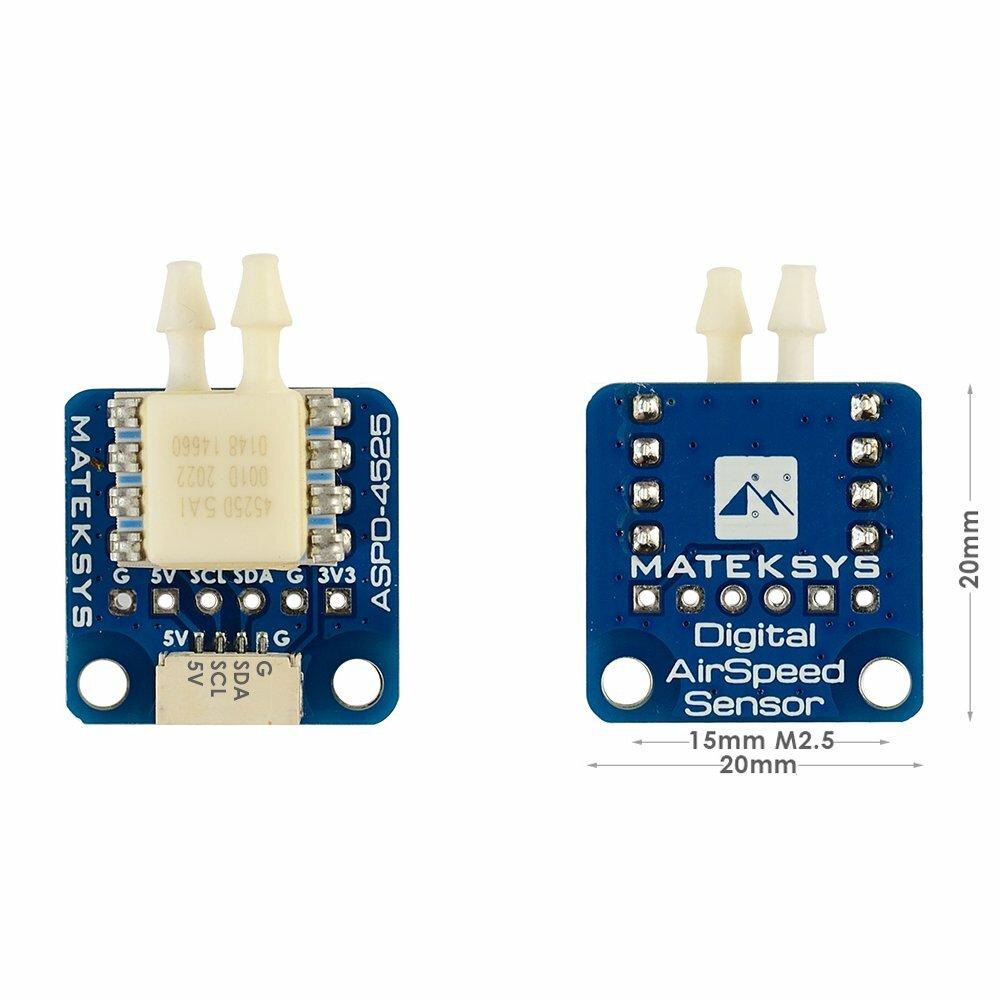

Matek Digital Airspeed Sensor ASPD-4525

$46.99
Original price $46.99 - Original price $46.99
Original price
$46.99 - $46.99
Current price $46.99
Out Of Stock
Add to Wishlist
Ask a Question

Details

Description

If you've ever wanted to see your wing's actual relative airspeed rather than ground speed supplied by GPS, this is the thing for you! The kit includes a sensor, pitot tube and connection rubber tubing.

Check out all our wing parts & our Matek gear selection!

Specifications

  • Board Supply voltage: 4~6V DC
  • Sensor: MS4525
  • Working current: 5mA
  • Output: I2C (SCL & SDA)
  • Pressure Ranges: 1 PSI (6.89kPa)
  • Maximum Pressure: 20 PSI (137.9kPa)
  • Operating Temperature: -40°C ~ 125°C
  • Accuracy: ±0.25% SPAN
  • Red LED: power indicator
  • JST-GH sequence: 5V, SCL, SDA, GND
  • Weight: 3.5g (sensor board)

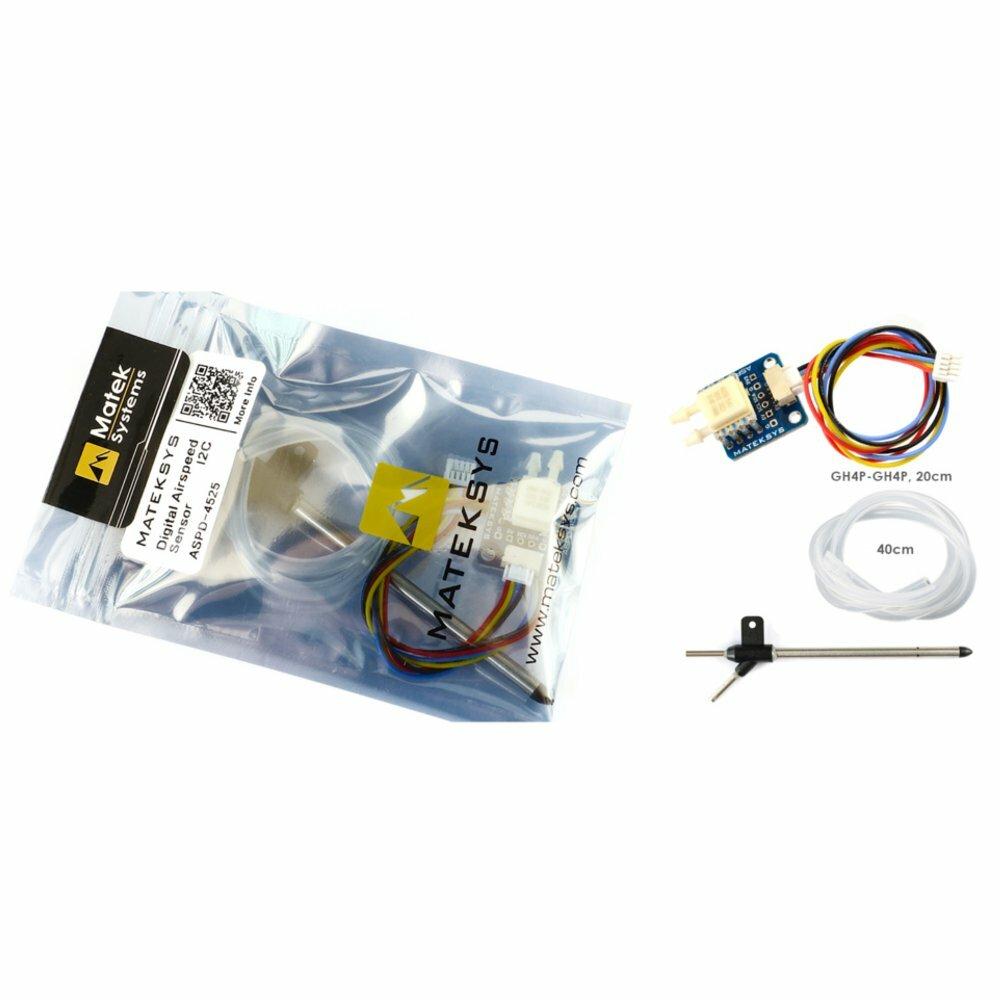

Includes

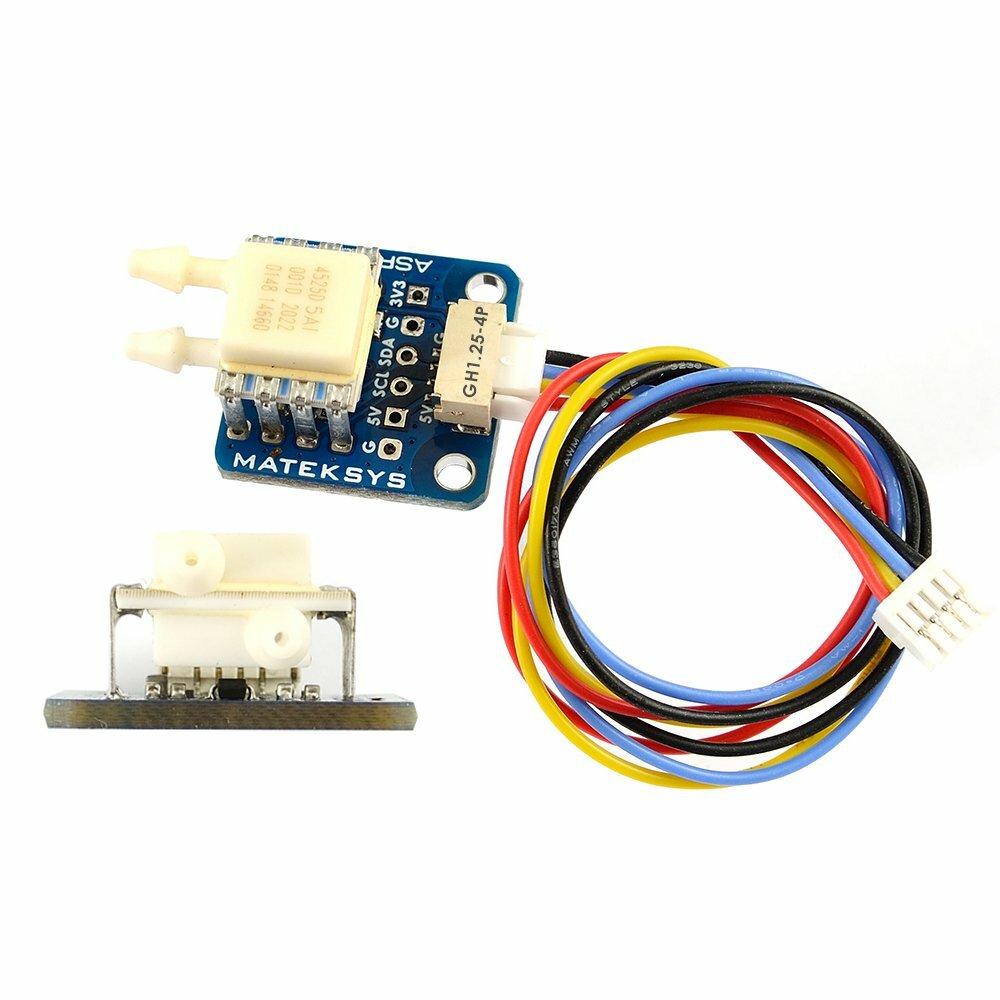

  • 1x Matek Digital Airspeed Sensor ASPD-4525
  • 1x JST-GH to JST-GH 20cm silicon cable.
  • 1x Pitot Tube.
  • 1x Clear silicon tubing 40cm

Wiring Diagram

5V to FC 4~6V
SCL to FC I2C_SCL
SDA to FC I2C_SDA
G to FC GND

More Information:

  • SKU: 14243
  • Barcode: 691023510173
