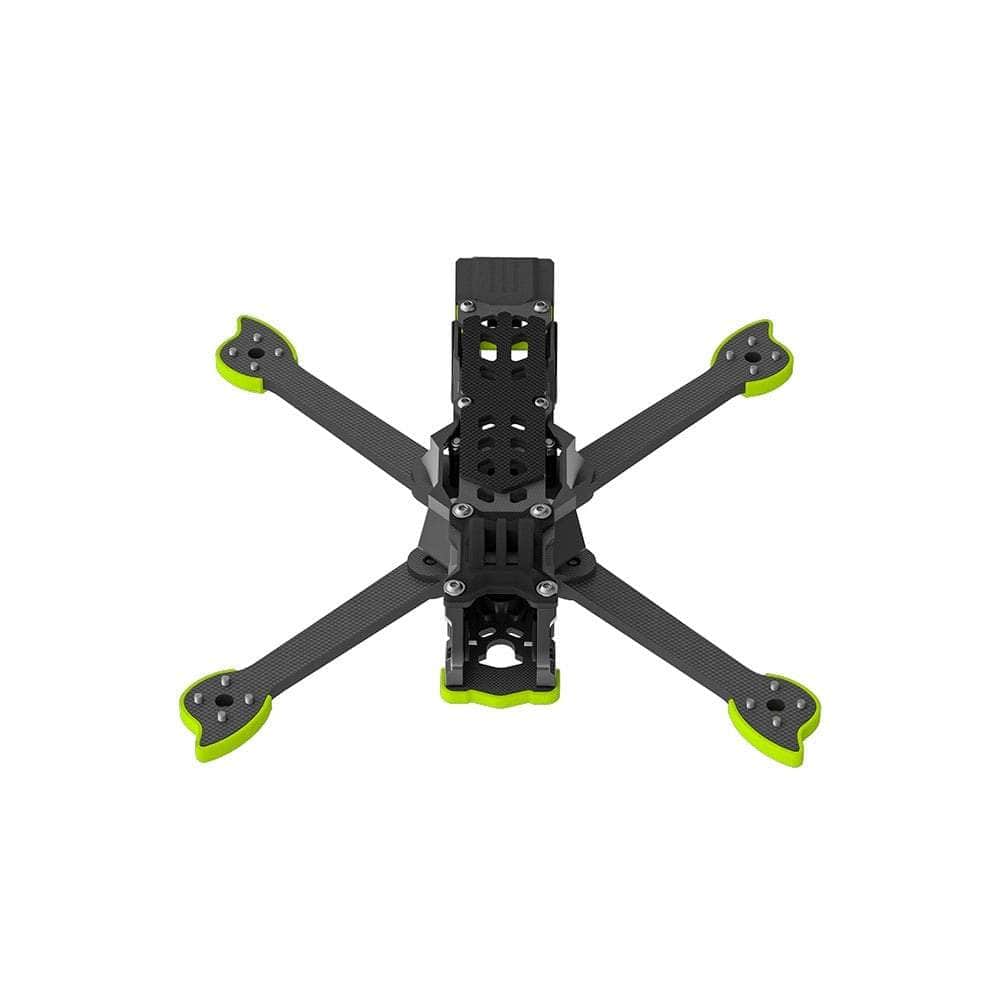

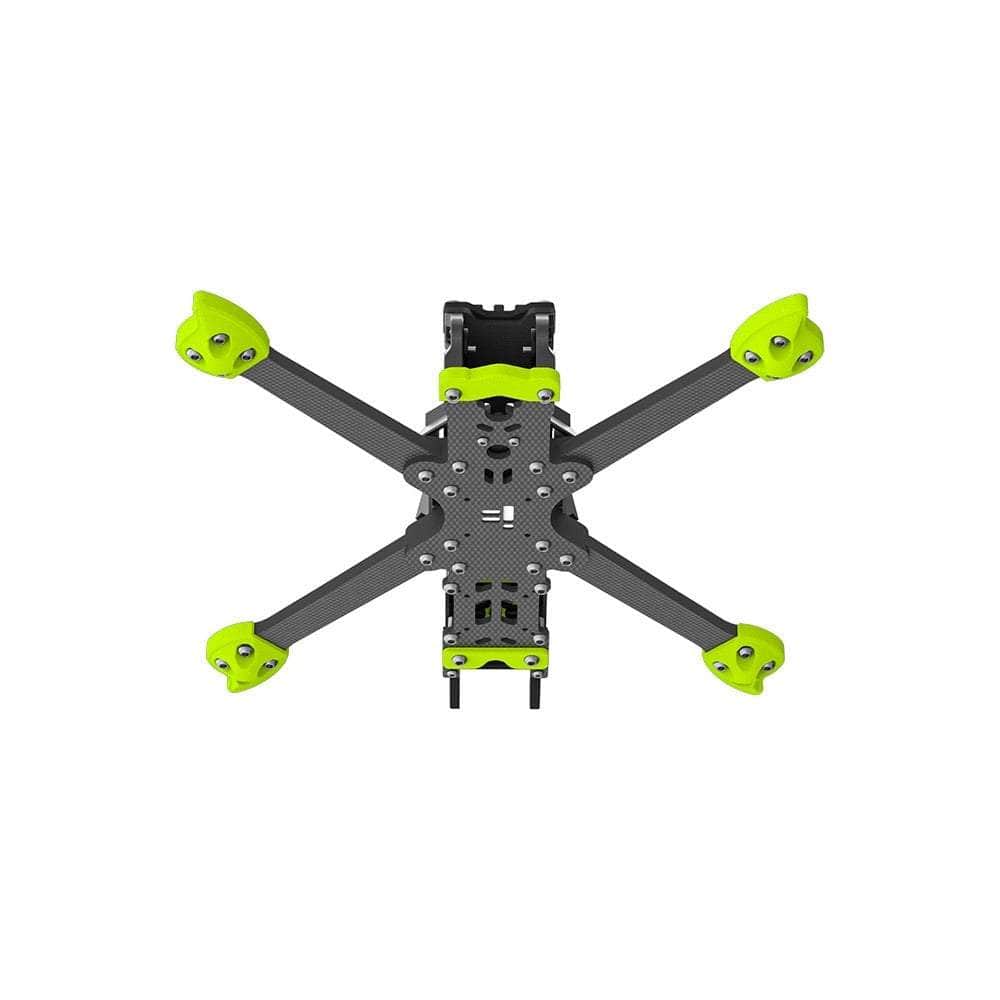

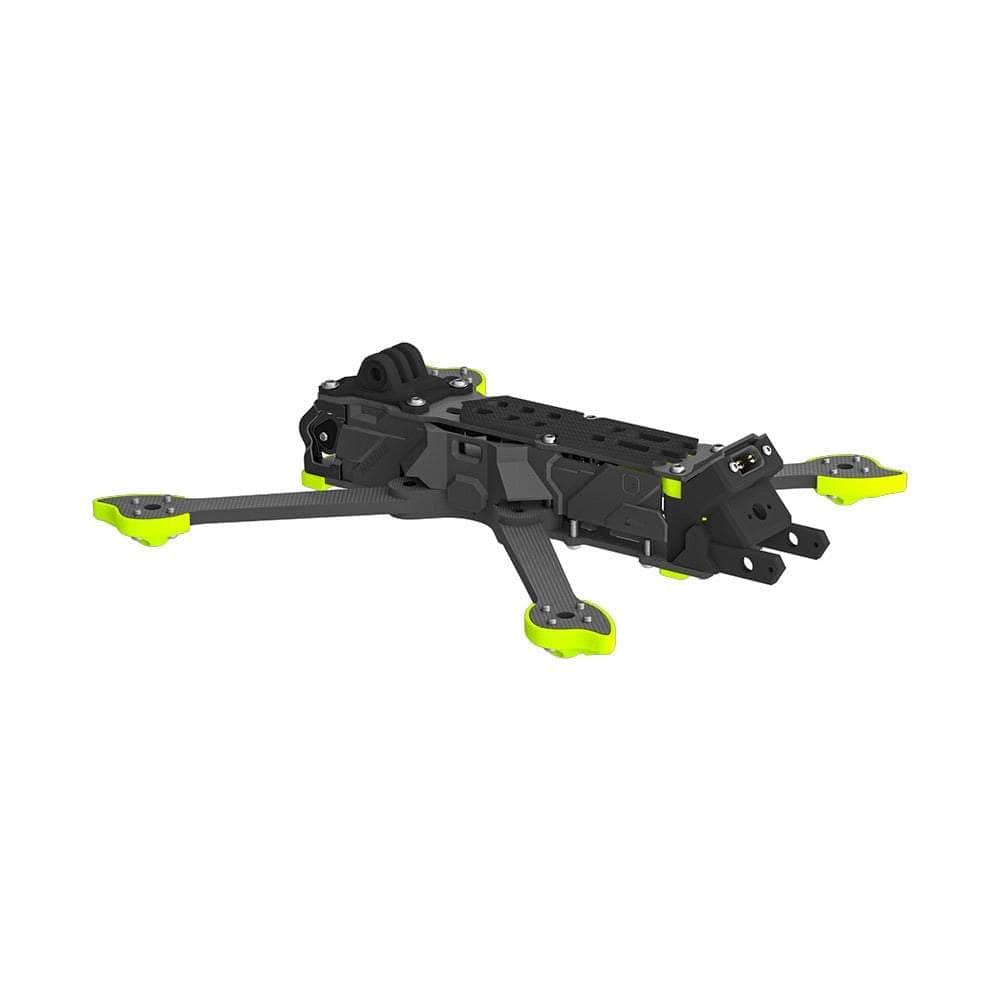

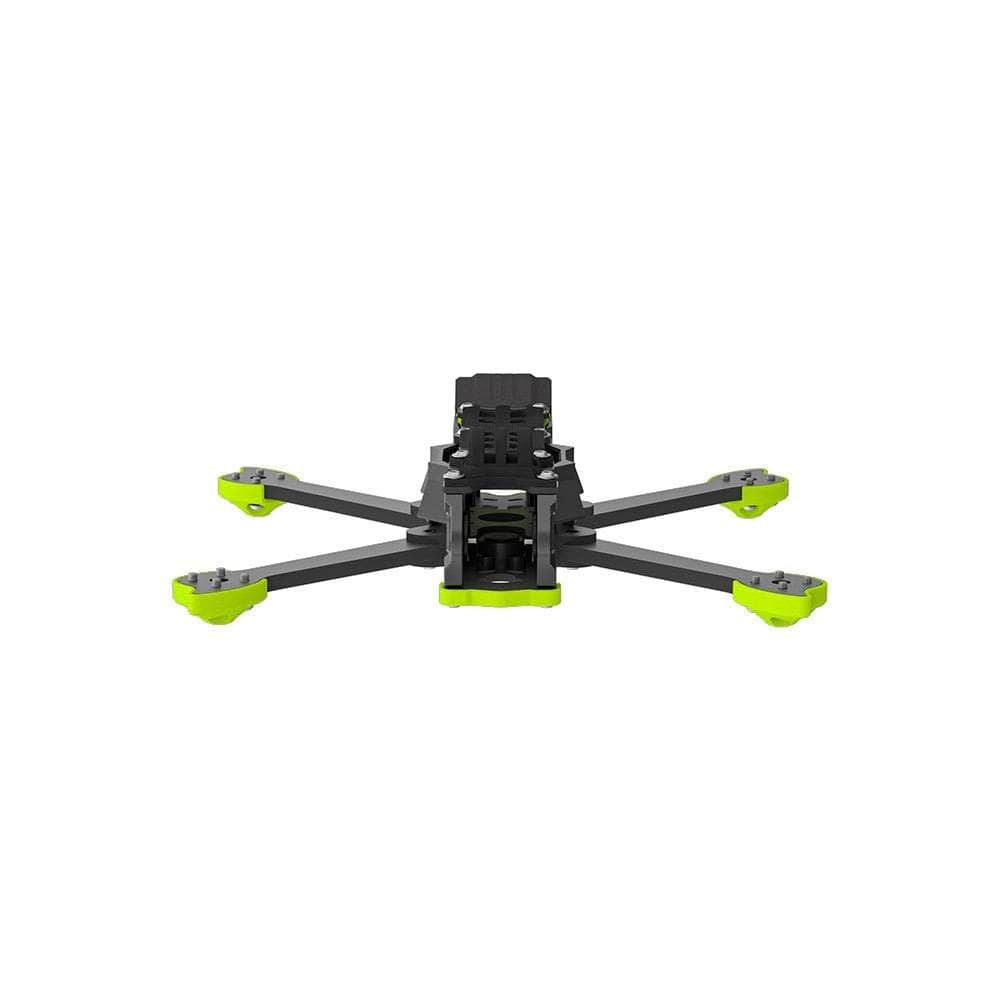

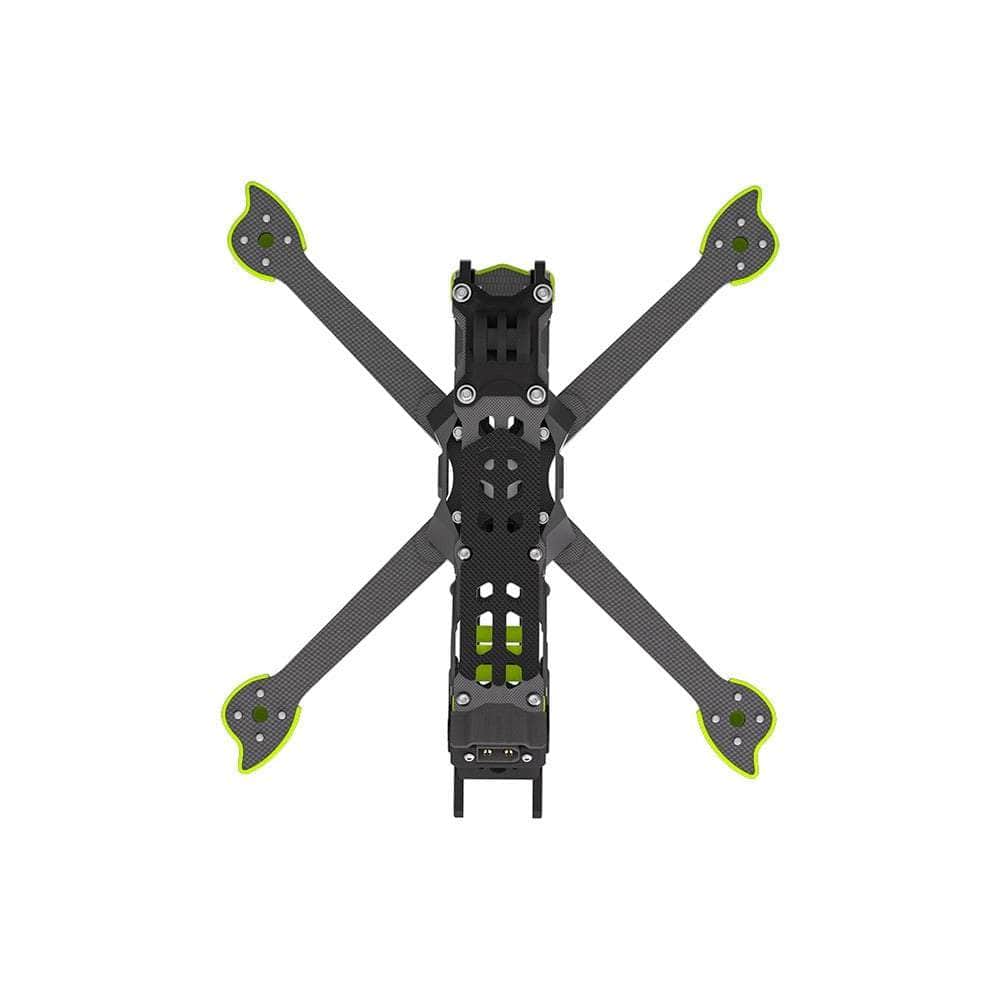

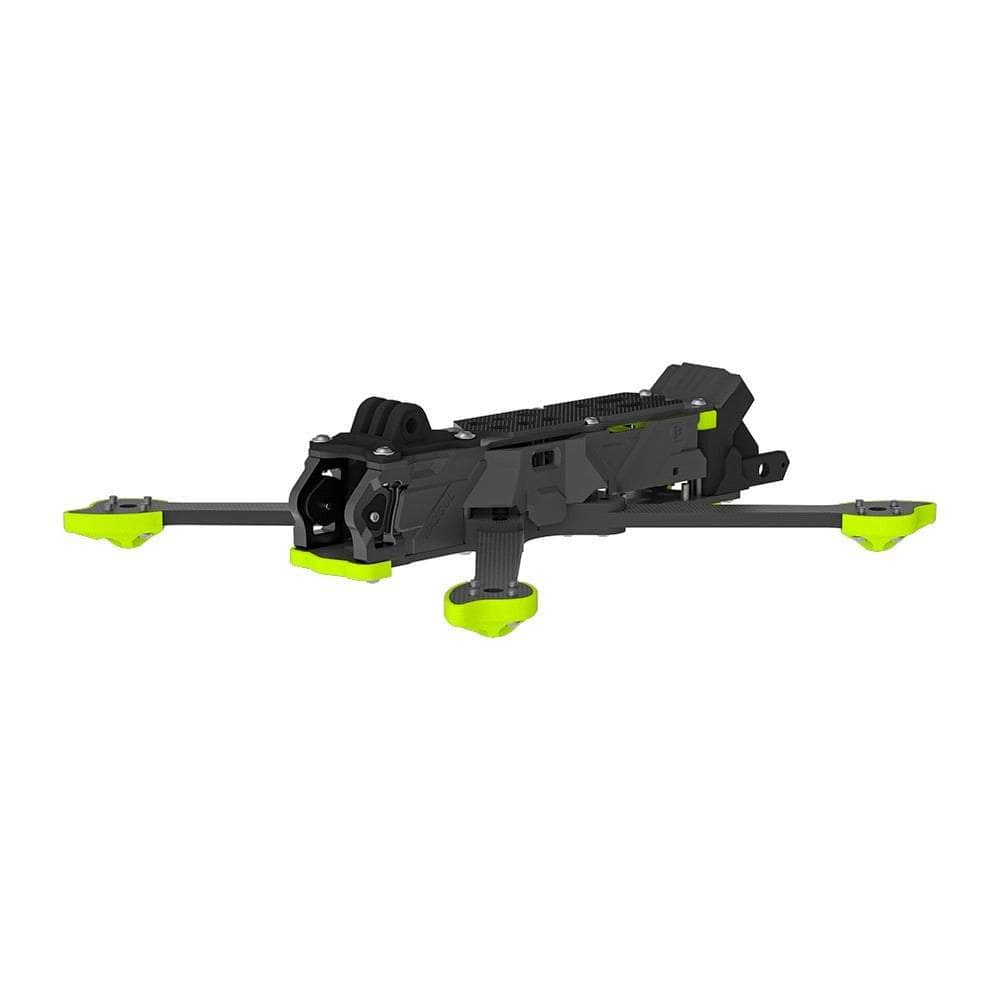

iFlight Nazgul XL5 ECO V1.1 5" Frame Kit

Description

The iFlight Nazgul XL5 ECO is a durable 5" freestyle frame made from stiff carbon fiber for reduced resonance and stable flight. Compatible with 2207 motors and 5" props, it shares the proven design of the Nazgul5 V3 Frame Kit. Send it with a iFlight frame you can trust!

Check out our iFlight selection, as well as all our other 5" frames.

Features

• Supports 30.5 × 30.5mm and 20 × 20mm flight stacks
• Compatible with both 5" and 5.1" propellers
• Designed for the DJI O3 HD System
• Durable 5mm thick arms
• Easy-Swap Arm Design
• LED-Illuminated Logo
• TPU Crash-Guards
• True-X Geometry

Specifications

• Product Name: Nazgul XL5 V1.1 ECO Frame Kit
• Frame Dimensions: L173 × W173 × H36.5mm
• Maximum Flight Stack Height: 22mm
• Weight: 233g (excluding TPU parts)
• Frame Body Dimension: 33.5mm
• Bottom Plate Thickness: 2.5mm
• Maximum VTX Height: 29mm
• Upper Plate Thickness: 3mm
• Top Plate Thickness: 2mm
• Arm Thickness: 5mm
• Wheelbase: 245mm
• Geometry: True-X
• VTX Mounting:30.5 × 30.5, φ3mm

  • 25 × 25, φ1.6mm
  • 20 × 20, φ2mm

Includes

• 1x iFlight Nazgul XL5 ECO V1.1 5" Frame Kit
• 1x Hardware Kit
