iFlight Blitz Whoop F7 AIO [V1.1] 2-6S AIO Toothpick / Whoop Flight Controller (w/ 55A 8Bit 4in1 ESC)

$109.99
Original price $109.99 - Original price $109.99
Original price
$109.99 - $109.99
Current price $109.99
Out Of Stock
Add to Wishlist
Ask a Question

Details

Description

This is our new iFlight BLITZ series AIO FCs for your ultimate build. A future proof all-in-one FC to step up the game and make some more room for future flight firmware development like Betaflight, Emuflight etc. Lightweight, minimum size, minimum work.This could only be achieved by using BGA chipsets instead of ordinary QFP (big size) MCUs and ultra powerful Mosfets for almost any build. Solder your motor wires on and let's go!

 Check out our other AIO FCs, as well as the rest of our iFlight selection!

Features

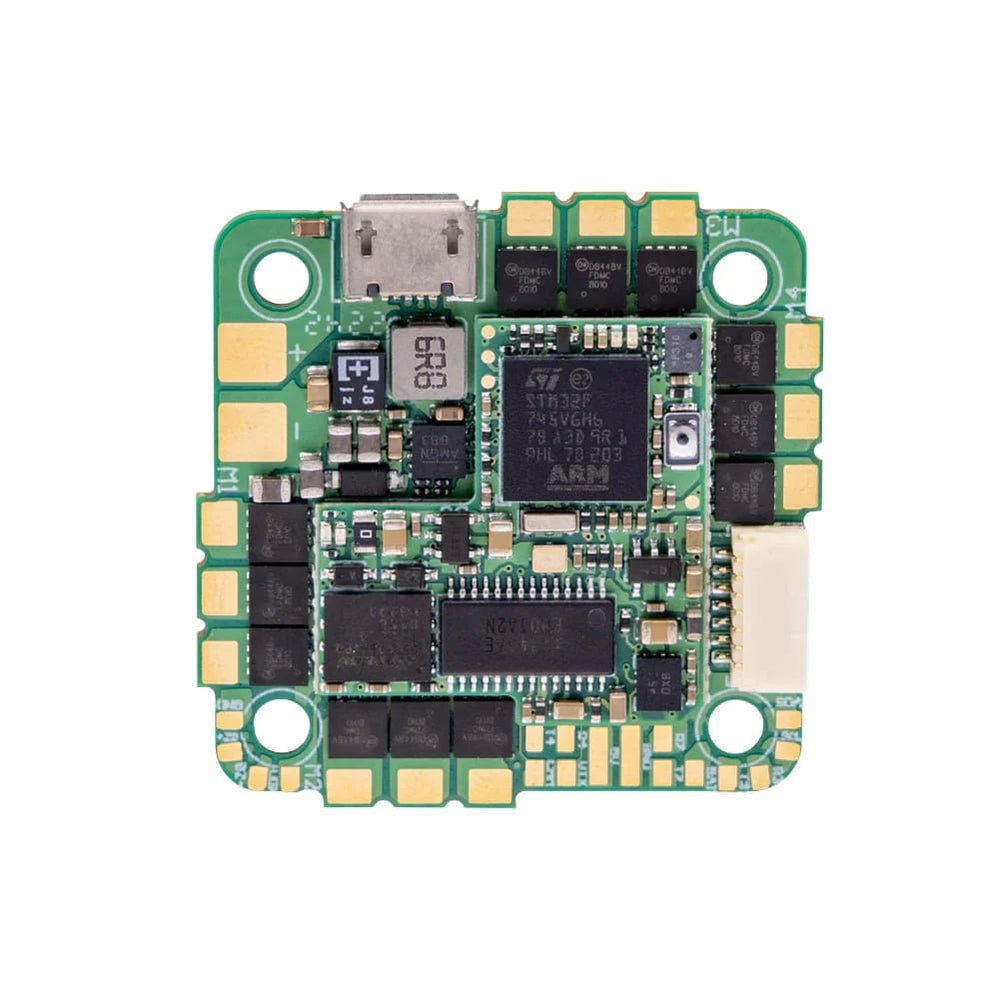

  • Separated Flight Control board to minimize electrical gyro noise
  • Pass-through DJI O3 and Caddx Vista/Polar Connector
  • FC PCB can be disassembled from the ESC PCB; Repair allowed!

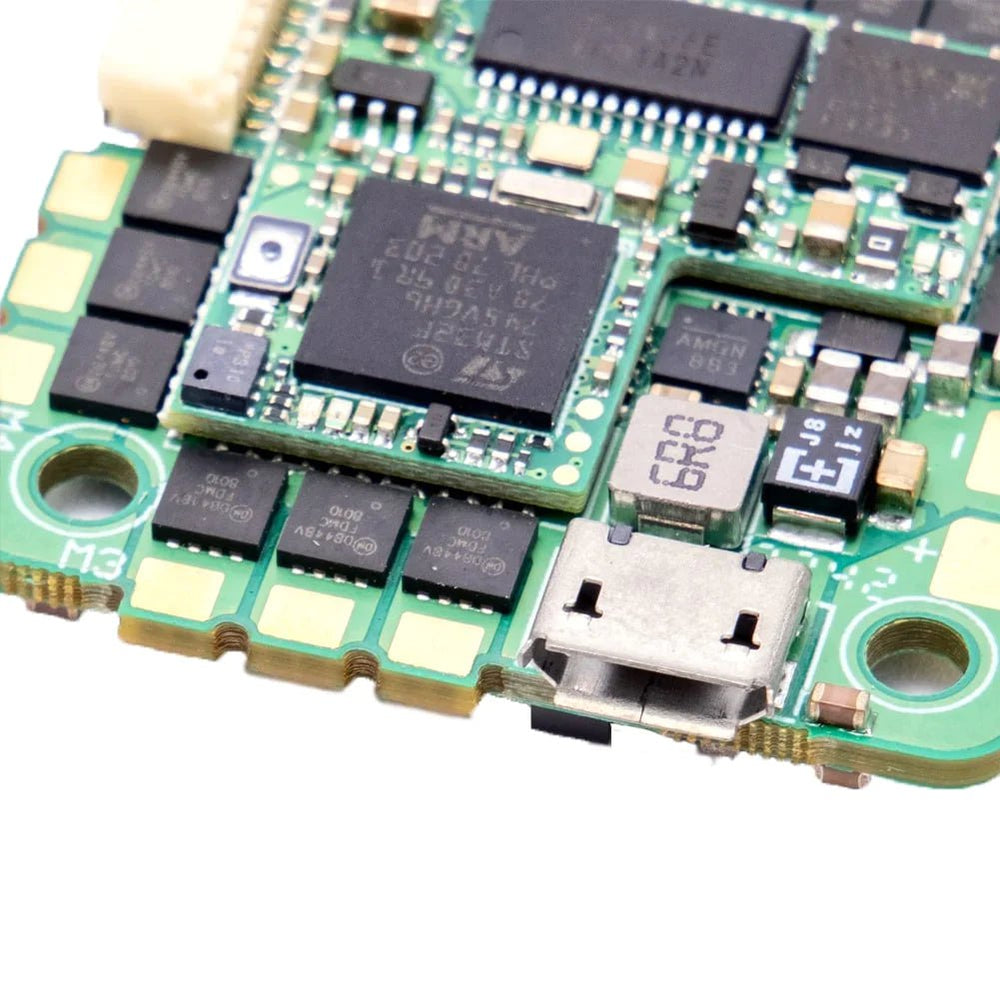

  • MCU: BGA-STM32F745, 216MHz

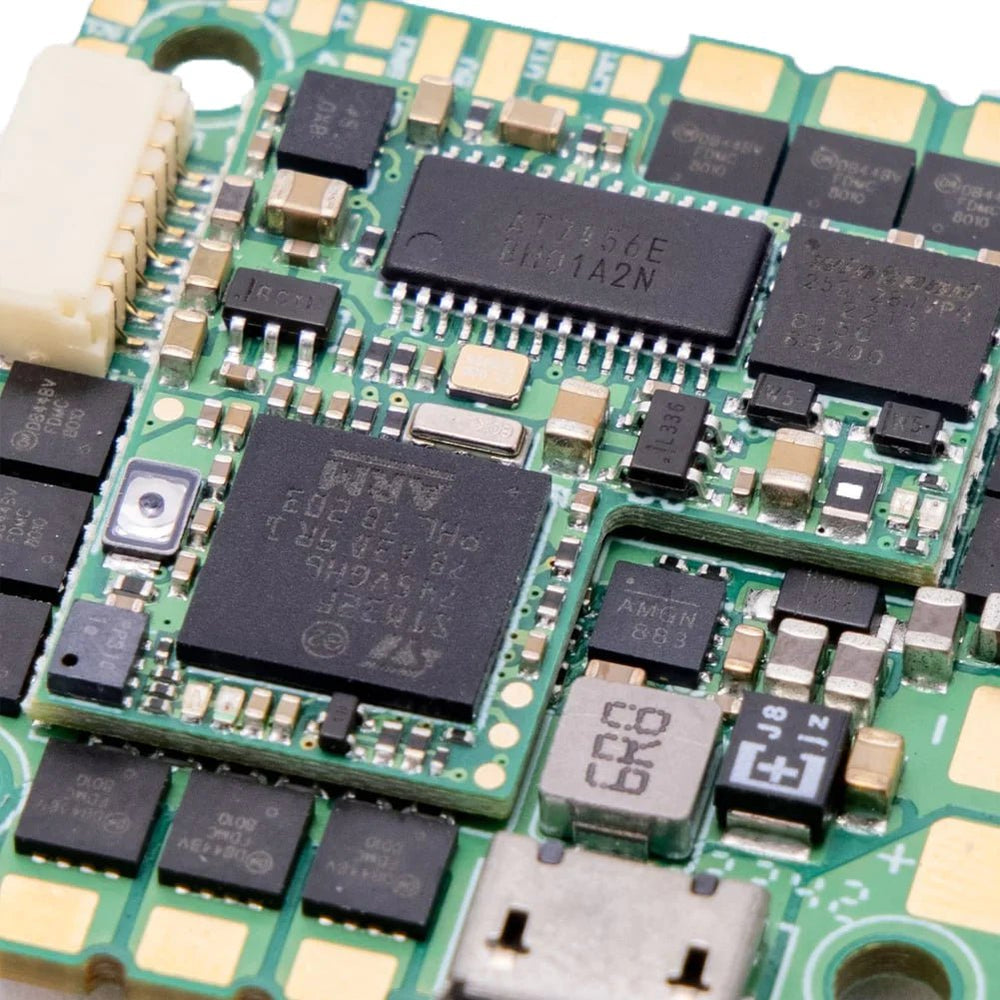

  • OSD: AT7456E
  • Blackbox: 16MB Onboard Flash
  • Gyro: BMI270

Specifications

FC Specifications
  • MCU: BGA-STM32F745
  • Gyro: BMI270
  • Blackbox: 16MB Onboard Flash
  • BEC output: 5V 2.5A
  • WS2812 LED Strip: Yes
  • Buzzer: Yes
  • Barometer: DPS310
  • Connector: Micro-USB
  • OSD: IFLIGHT OSD (AT745E)
  • FC Firmware:IFLIGHT_BLITZ_F7_AIO

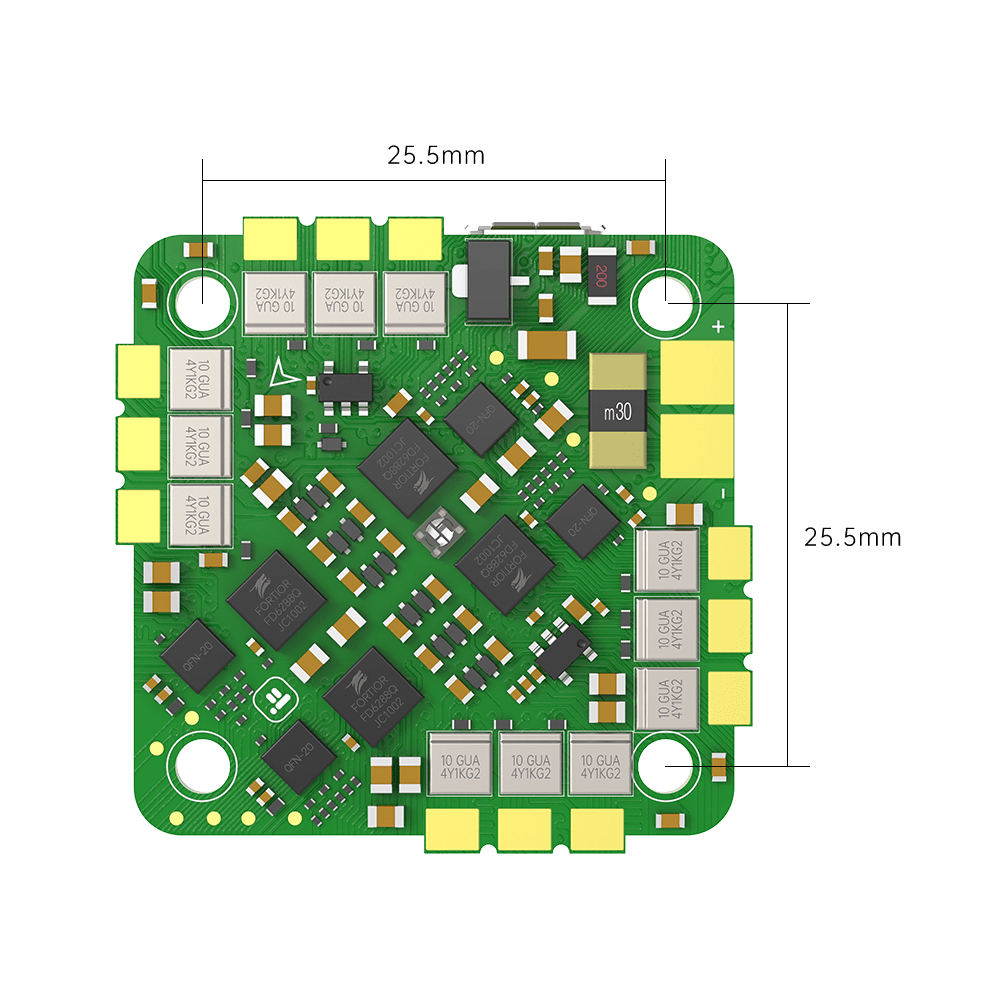

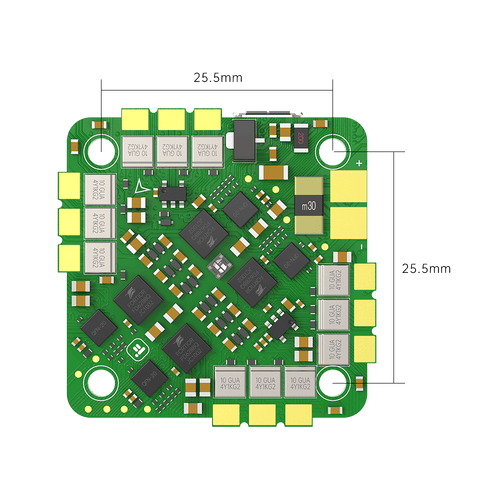

  • Mounting pattern: 25.5 x 25.5mm φ3mm
  • Dimensions: 35mm x 35mm
  • Weight: 10.5g
  • BEC: 5V 2A / 3A
  • Input voltage: 2-6S, support LIHV battery
  • Smartaudio / IRC Tramp VTX protocol supported

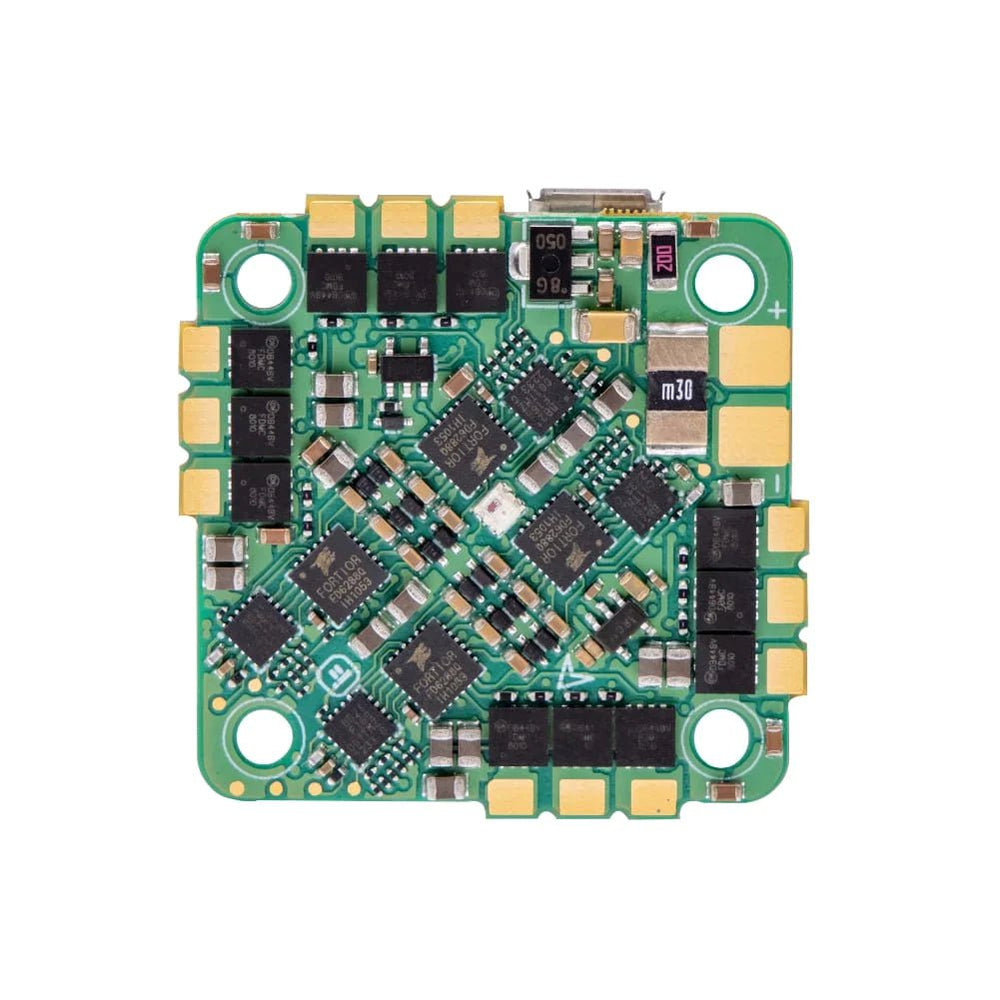

ESC Specifications
  • ESC MCU: BB21

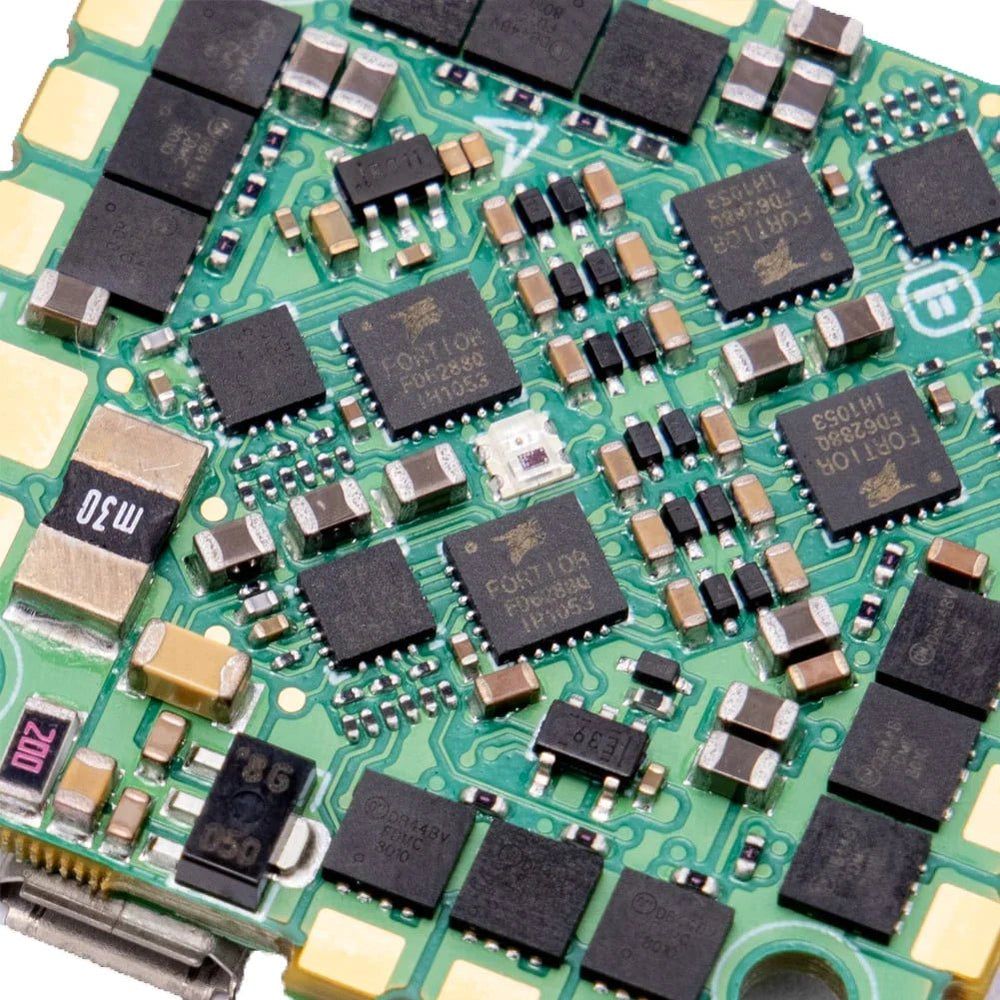

  • Driver: FD6288
  • Input voltage: 2-6S Support LIHV battery
  • Output current: 55A, peak value 65A (10 seconds)
  • ESC firmware: Q-H-40 - Bluejay, 0.16, 24kHz
  • Current sensor: ratio 200 (1/10mV/A)
  • BEC: NO
  • ESC Telemetry: NO
  • Bidirectional DShot: Yes(need to use Bluejay firmware)
  • Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

Includes

  • iFlight Blitz Whoop F7 AIO V1.1 (w/ 55A 8Bit 4in1 ESC)
  • 2 x Capacitor 470uF/35V
  • 1 x XT30U Male 18AWG cable 70mm
  • 1 x 1.0-7P cable 50mm-28mm
  • 1 x 1.0-7P cable 50mm
  • 4 x M2 silicon grommets
  • 8 x M2x12mm screws
  • 8 x M2 Transparent Nylon Nut
  • 10 x 0.8mm black Heat shrink tube 10mm


Wiring Diagram

More Information:

  • SKU: 22249
  • Barcode: 691023520493
