Description

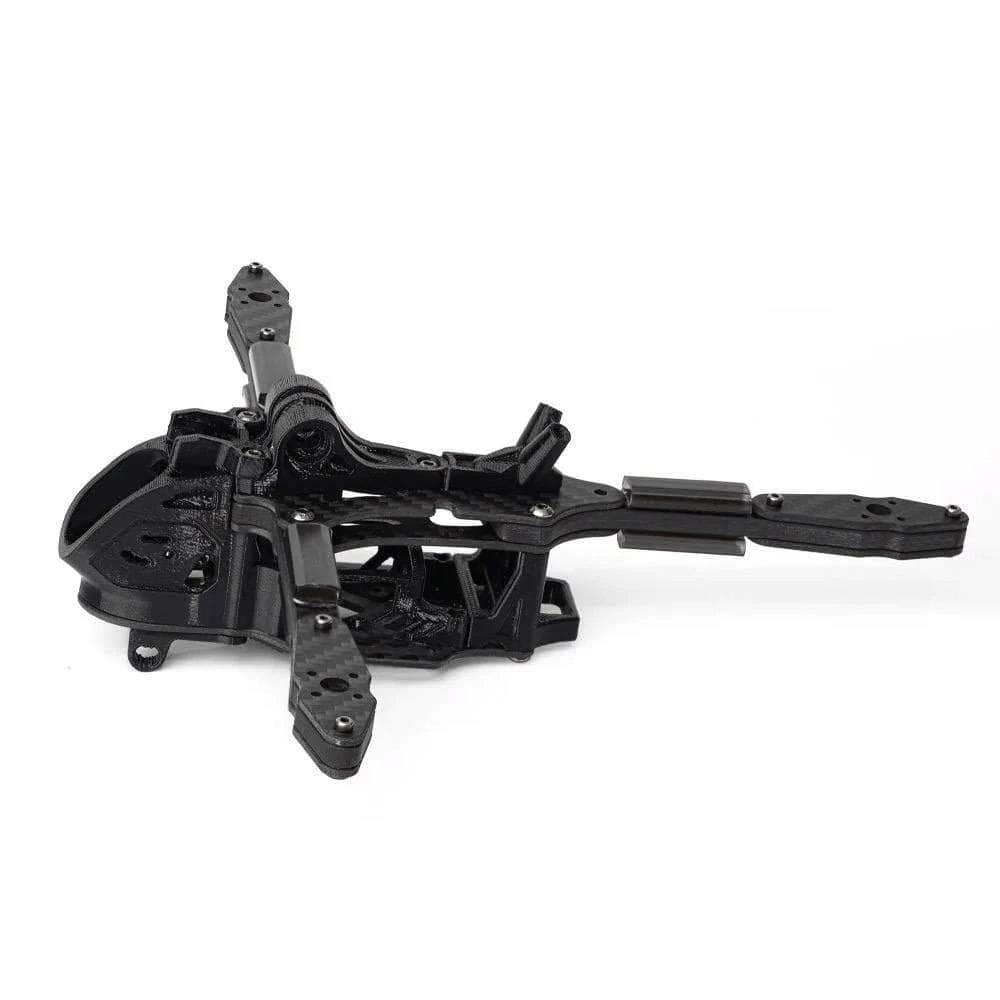

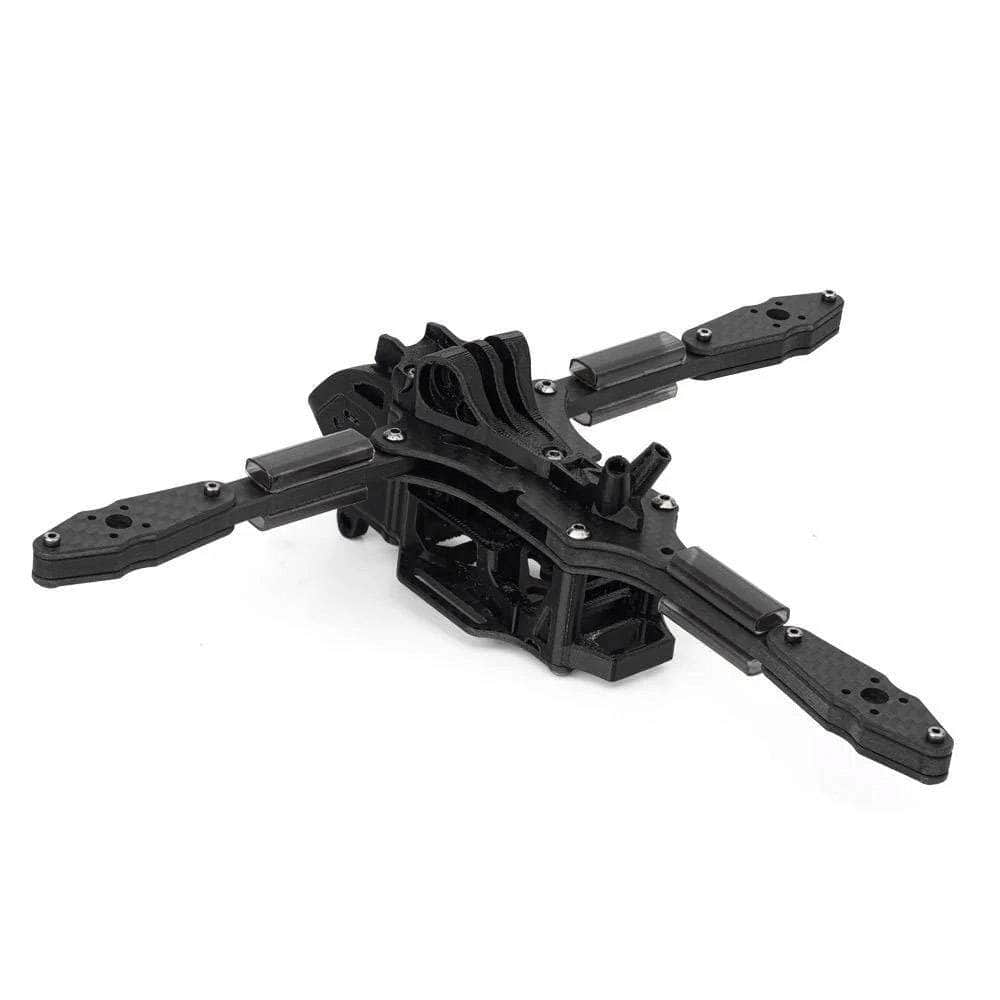

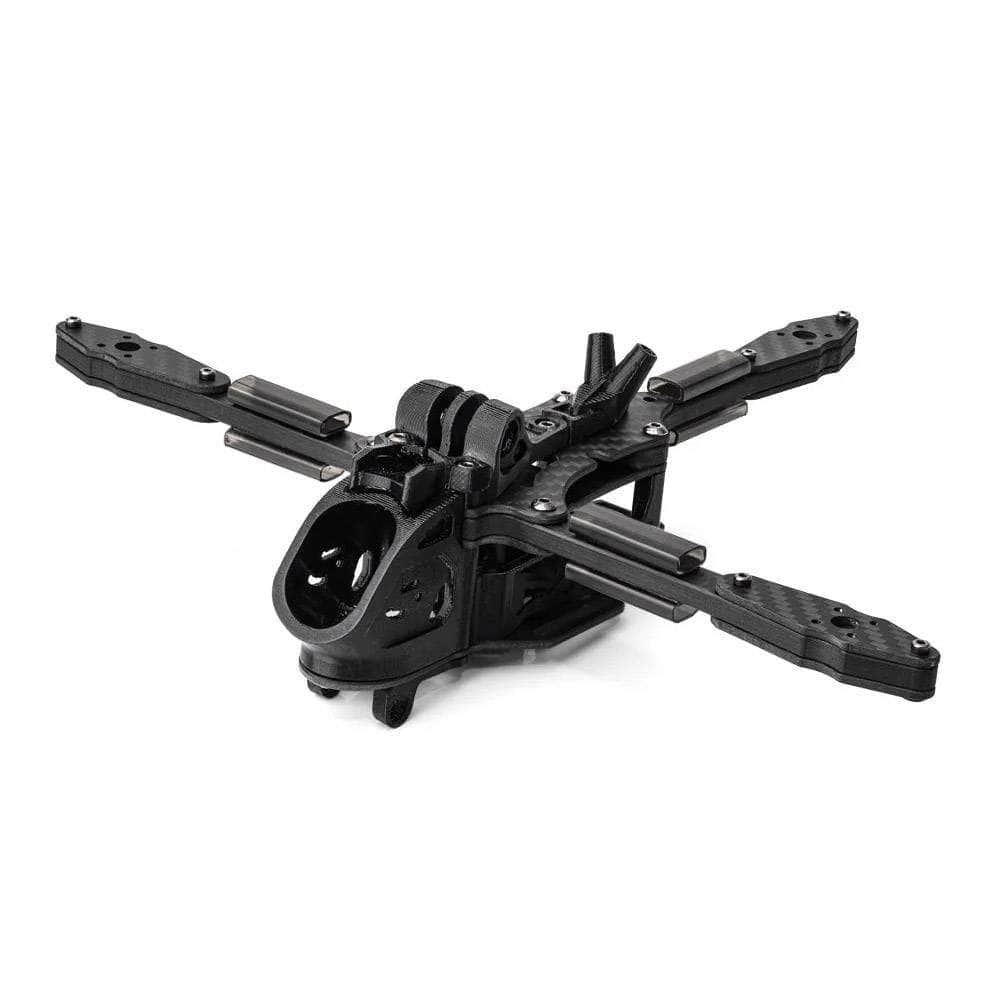

The HGLRC Y6 5" LR Frame Kit features a Y type layout, offering new advantages while flying. With a 50% increase in the propeller area, it carries full-sized action cameras with ease. Key features include a fixed power connector for stable flights, an adjustable side antenna mount to eliminate signal dead zones, and a propeller layout that stays out of your camera’s view for clear video capture. It also includes an M100mini GPS holder for enhanced flight stability. Experience stability, flexibility, and crystal-clear video on your long-range adventures.
Check out all our 5" frames, as well as our whole HGLRC product line!
Features
- 50% Increase in Propeller Area
- Unobstructed Camera Views
- Fixed Power Connector
- M100mini GPS Holder
- Side Antenna Mount
Specifications
- Wheelbase: Front 200mm, Rear 170mm
- Model: Rekon Y6 Frame Kit
- Material: 3K Carbon Fiber
- Product Name: Rekon
- Type: 5 Inch
MOUNTING
- Flight Controller Mounting Hole: 25.5x25.5mm
- Camera Mount: 19x19mm / 20x20mm
- Motor Mounting Hole: 12x12mm
- Weight: 119g
SIZE
- Top and Middle Plate Space: 25mm
- Bottom Plate Thickness: 2mm
- Middle Plate Thickness: 2mm
- Bottom Plate Support: 2mm
- Motor Fixing Seat B: 2mm
- Motor Fixing Seat A: 2mm
- Top Plate Thickness: 2mm
- Front Arm: 5mm
- Rear Arm: 5mm
Includes
- 1x HGLRC Y6 5" LR Frame Kit
More Information:
- SKU: 22637
- Barcode: 723326370045
