HGLRC ELRS 2.4GHz RX-T Receiver

$12.99
Original price $12.99 - Original price $12.99
Original price
$12.99 - $12.99
Current price $12.99
In Stock
Add to Wishlist
Ask a Question

Details

Description

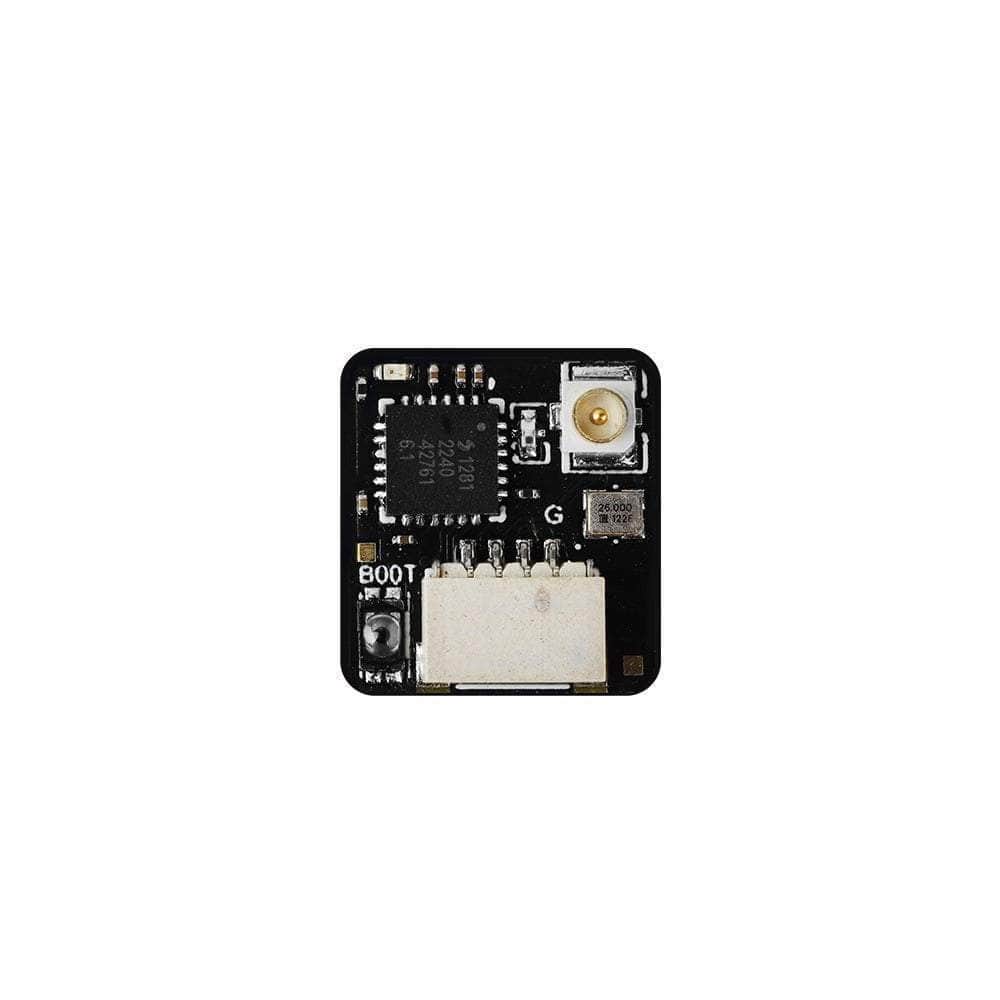

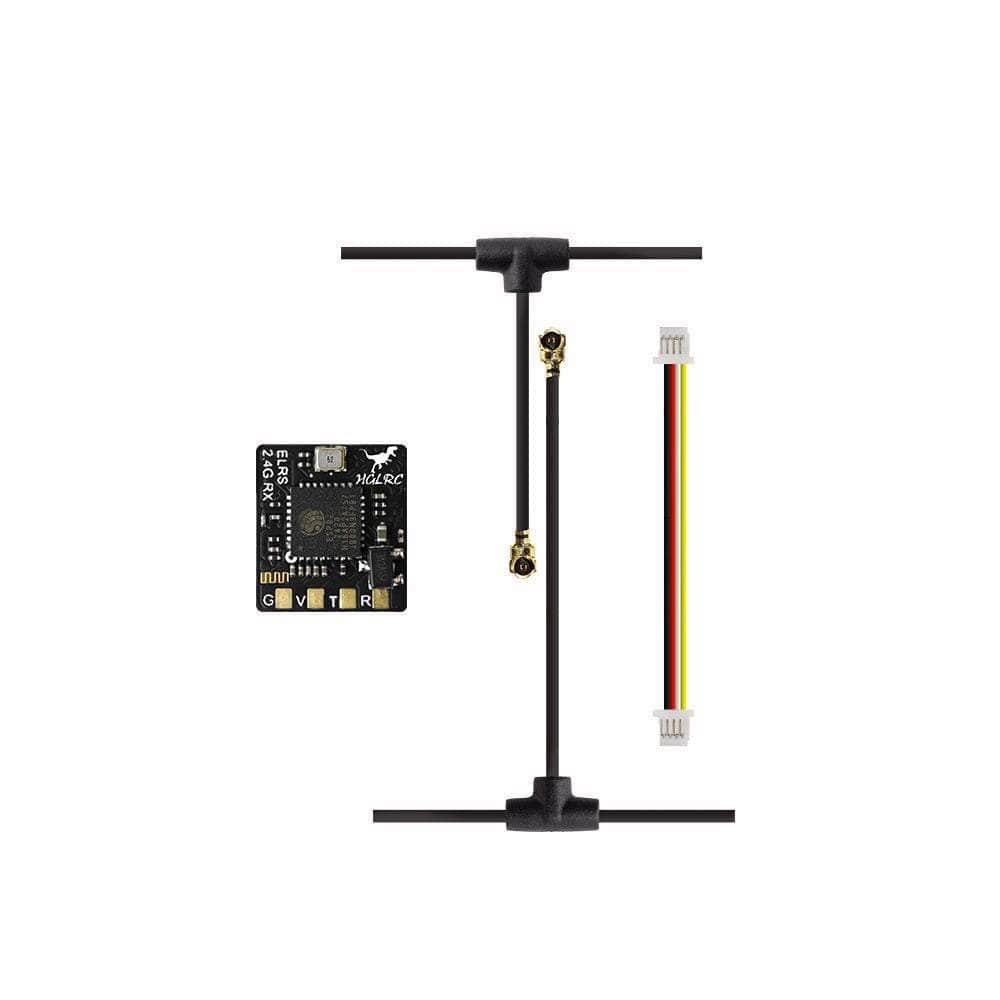

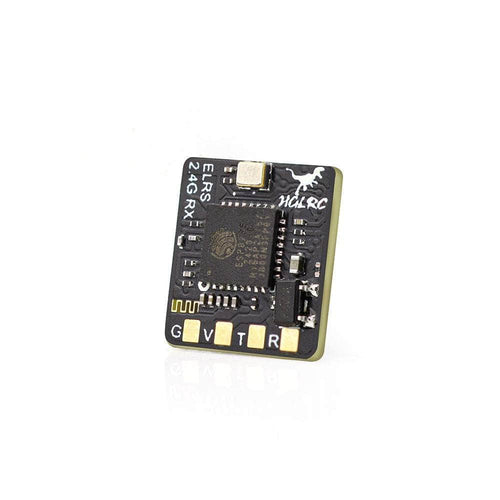

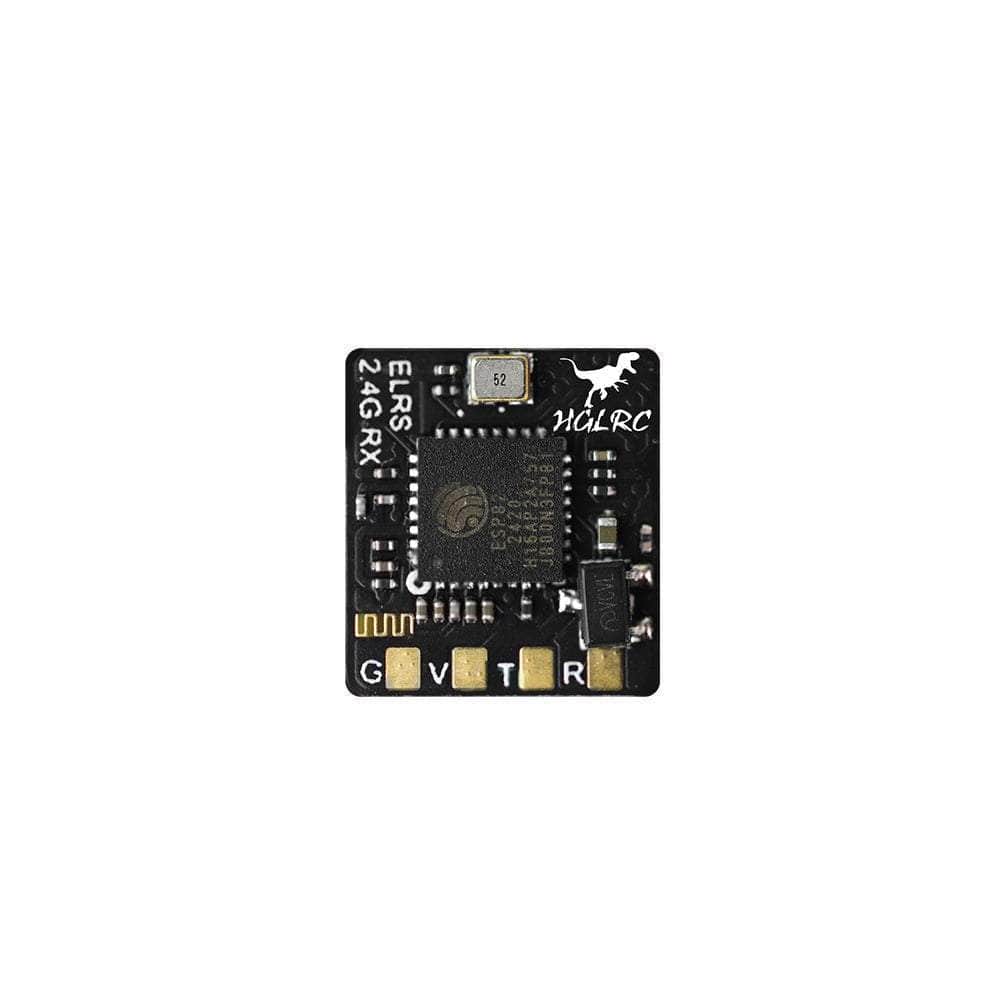

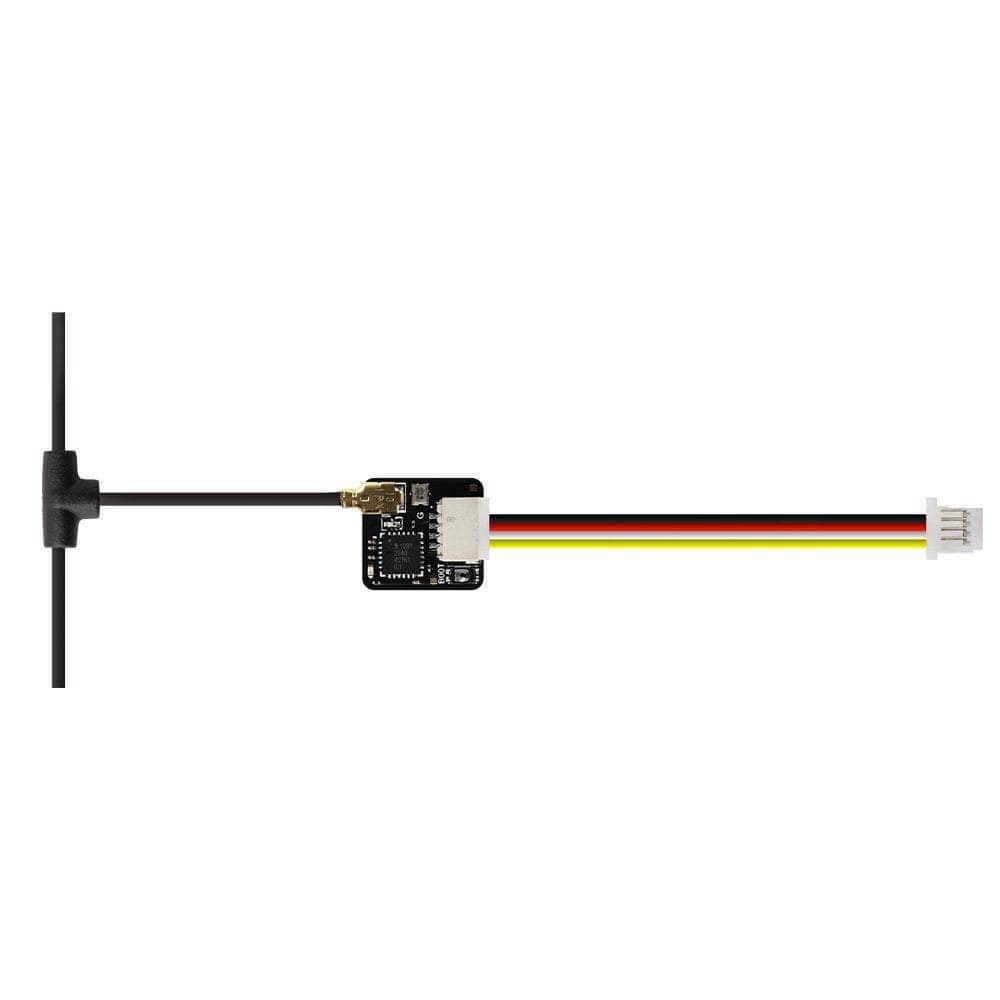

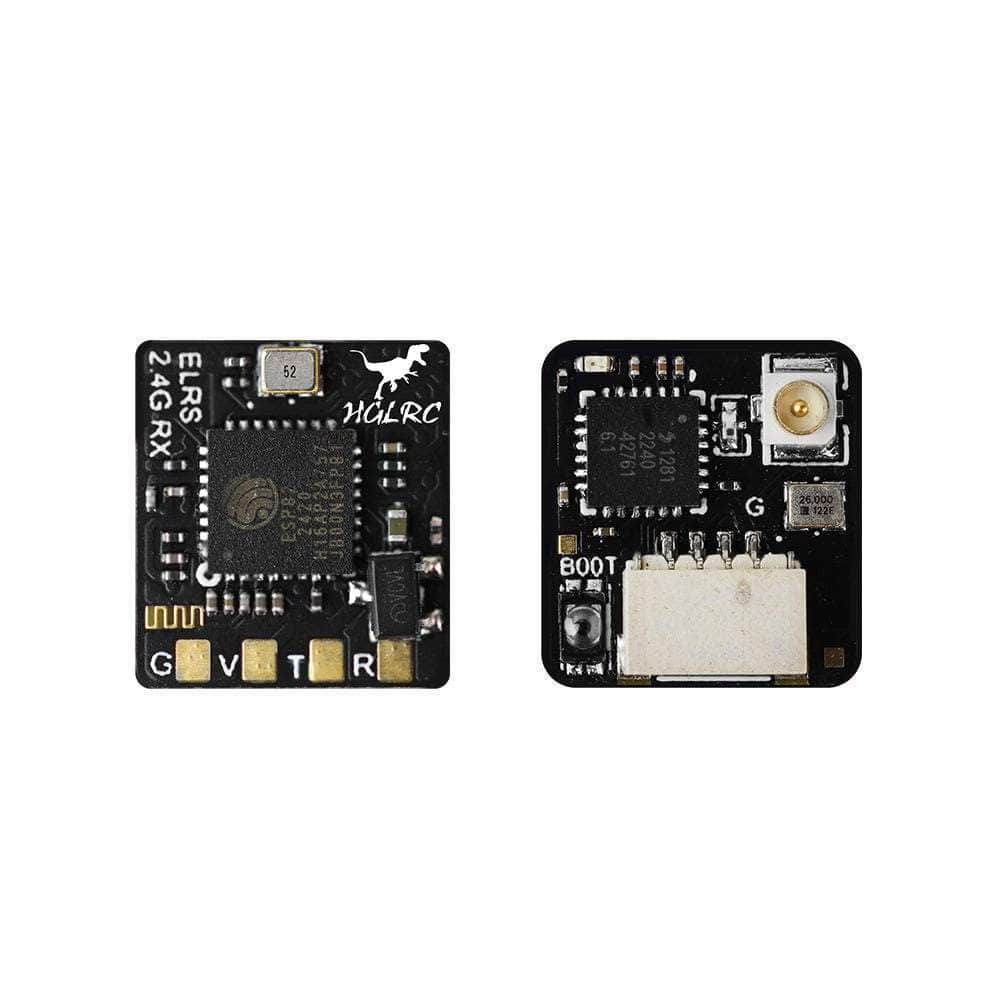

HGLRC ELRS receiver at 2.4GHz. ExpressLRS is an advanced open source RC system with long range, low latency, high refresh rate and lots of useful features.  The HGRLC receiver has miniature dimensions of 12.45 x 11.18mm and a T dipole antenna in two lengths. The receiver can be connected via connector or solder pads.

Check out all our receivers and all our HGLRC products!

Specifications

  • Type: ISM

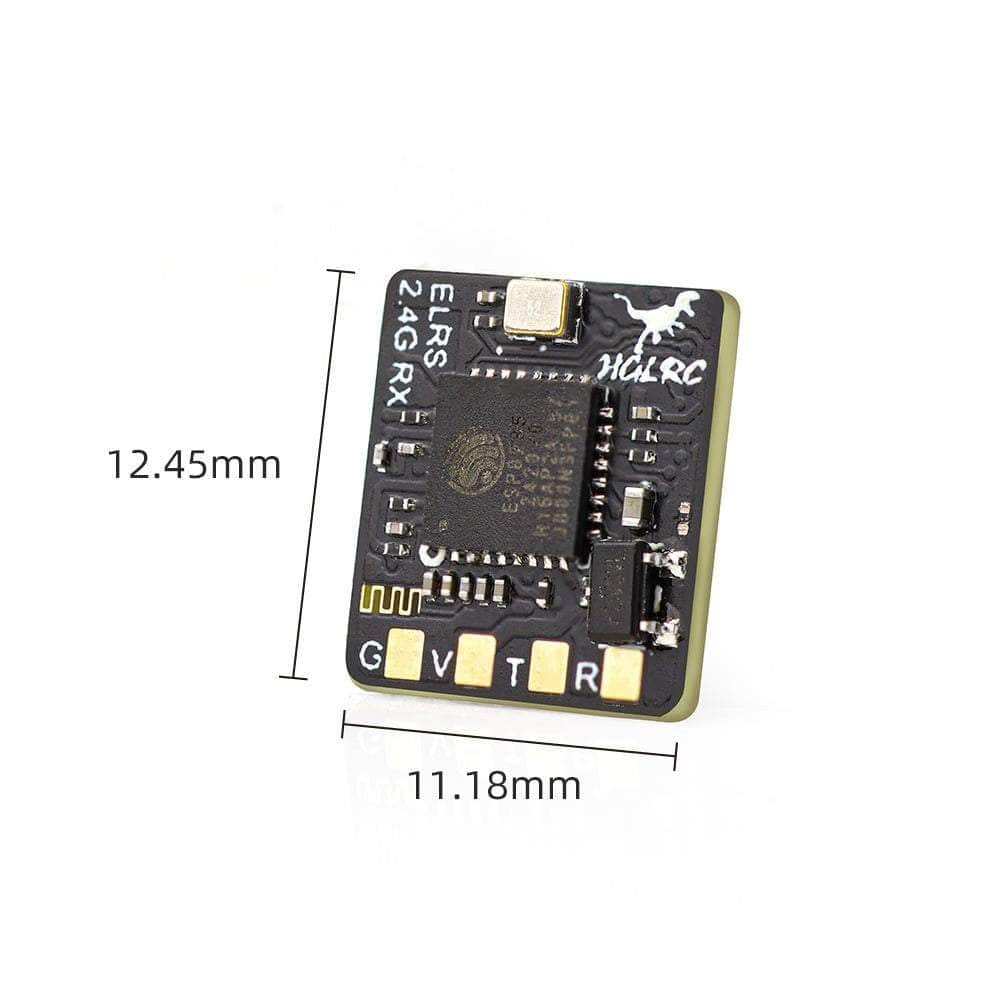

  • Size: 11.18x12.45mm
  •  Module: SX1280IMLTRT RF module
  • Antenna: Omni-directional antenna
  • Frequency range: 2400MHz to 2500MHz
  • Maximum receiver refresh rate: 500 Hz
  • Minimum receiver refresh rate: 25 Hz
  • Operating voltage: 5V
  • Size: 11.18 X 12.45mm
  • Peak gain: 2.23dB

Includes

  • 1x HGLRC ELRS 2.4GHz RX-T Receiver

Wiring Diagram

More Information:

  • SKU: 21004
  • Barcode: 6910236000665
