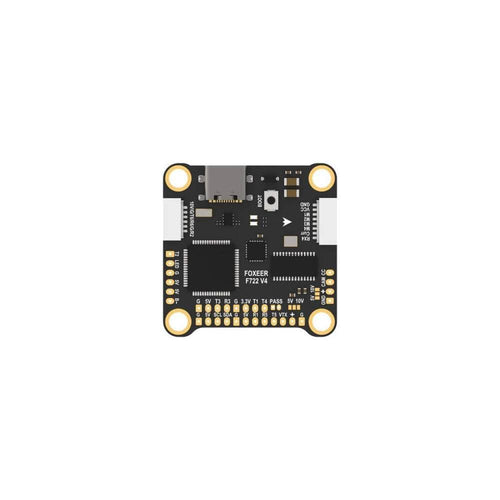

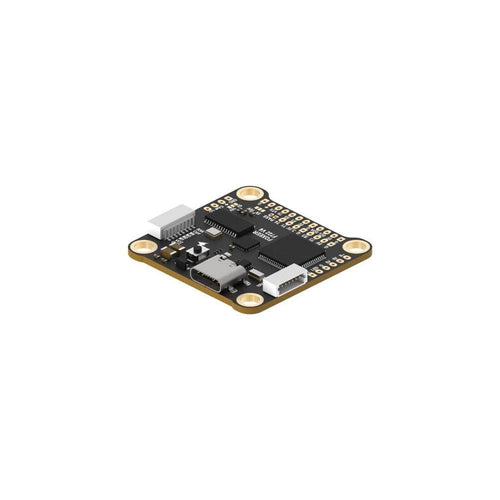

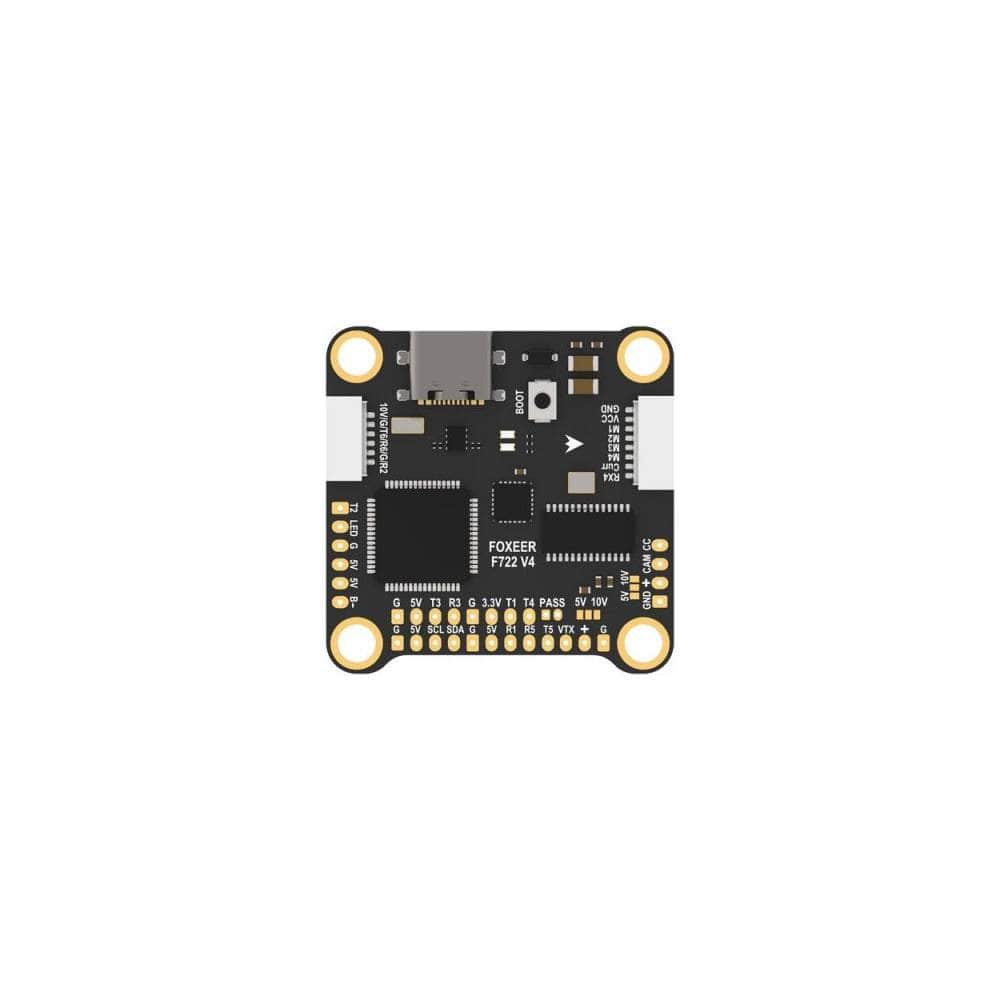

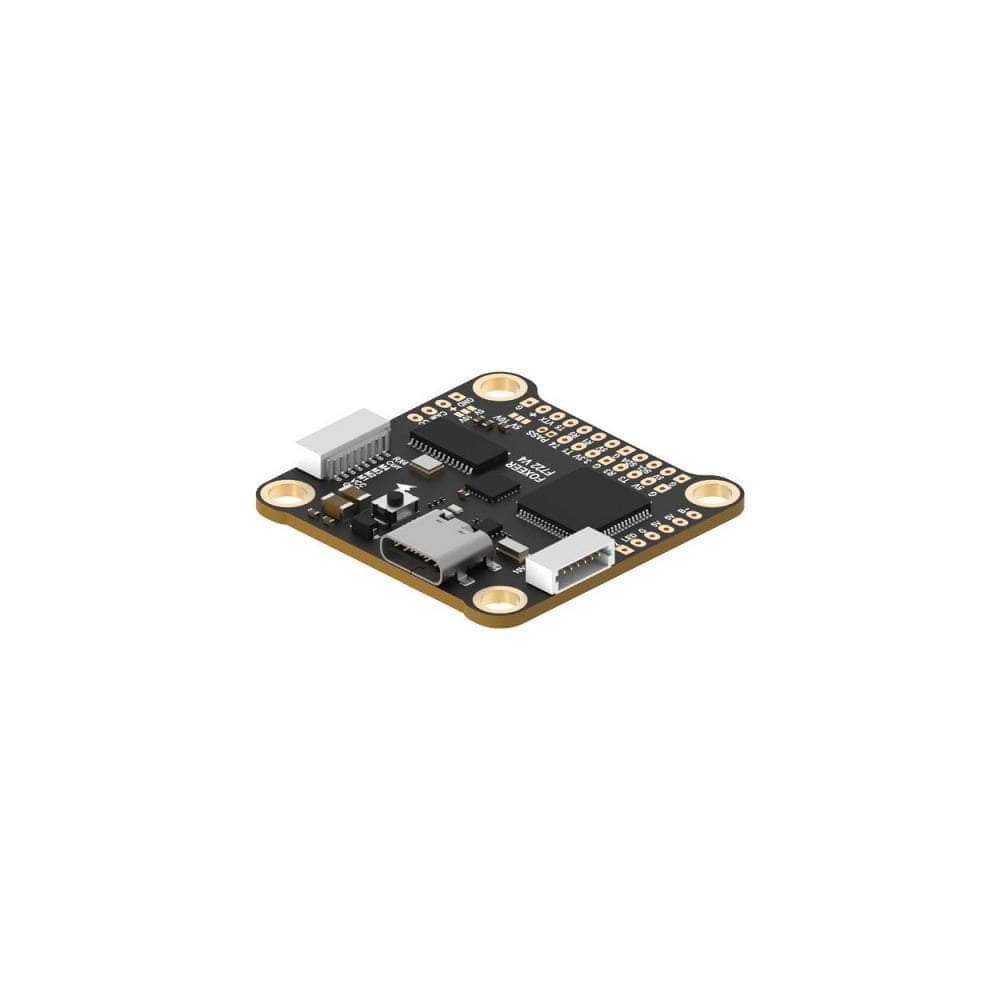

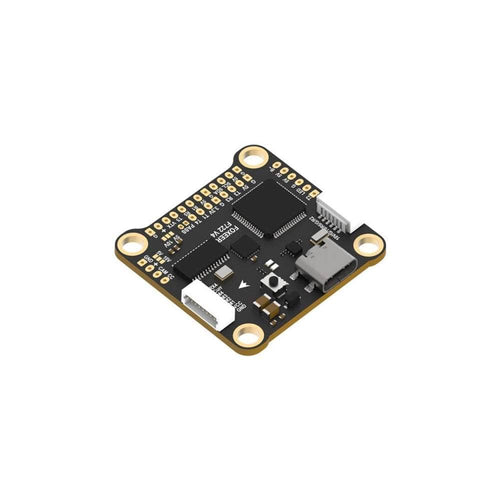

Foxeer F722 V4 X8 4-8S 30x30 w/ Barometer Flight Controller - MPU6000

$64.89
Original price $64.89 - Original price $64.89
Original price
$64.89 - $64.89
Current price $64.89
Out Of Stock
Add to Wishlist
Ask a Question

Details

Description

The Foxeer F722 V4 X8 4-8S 30x30 Flight Controller is the perfect choice for multirotors. It supports 4-8S input voltage and provides dual BEC and Barometer to ensure safe, efficient and stable operation. The MPU6000 sensor offers accurate and reliable data readings, ensuring excellent flying performance.

Included with this Flight Controller is an integrated 5V/10V dual BEC!

Check out our 30x30 Flight Controllers as well as Foxeer Collection!


Specifications

  • Model: F722 V4 MPU6000
  • CPU: STM32F722RET6
  • Gyro: MPU6000
  • Barometer: DPS310
  • Power Supply: 4-8S Lipo
  • BEC Output: DC5V/2A; DC10V/2A
  • OSD: BF OSD
  • Black Box: 16M Flash Memory
  • UART: 5 Sets+Rx4
  • ESC Telemetry: RX4
  • Buzzer: Yes
  • Connector: DJI/HDZero
  • Smart Audio: Yes
  • LED: 1 Set 2812 LED
  • USB: Type-C
  • Servo: S1,S2
  • X8: Need CLI
  • Firmware(BetaFlight): FOXEERH743
  • Size: 37X37mm
  • Mounting Hole: 30.5X30.5mm, Φ4mm
  • Weight(g): 7.7g
  • Working Temperature: -20℃ ~ +55℃
  • Working Humidity: 20~95%
  • Storage Temperature: -20℃ ~ +70℃

X8 Setup CLI

Includes

  • 1x Foxeer F722 V4 X8 4-8S 30x30 Dual BEC Barometer Flight Controller - MPU6000
  • 4x M3 Grommets
  • 1x Cable
