FlyFishRC M8QMC-5883L GPS & Compass Module (10th Gen)

$30.89
Original price $30.89 - Original price $30.89
Original price
$30.89 - $30.89
Current price $30.89
In Stock
Add to Wishlist
Ask a Question

Details

Description

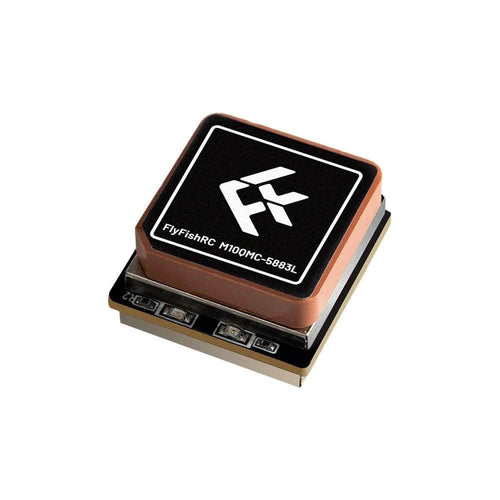

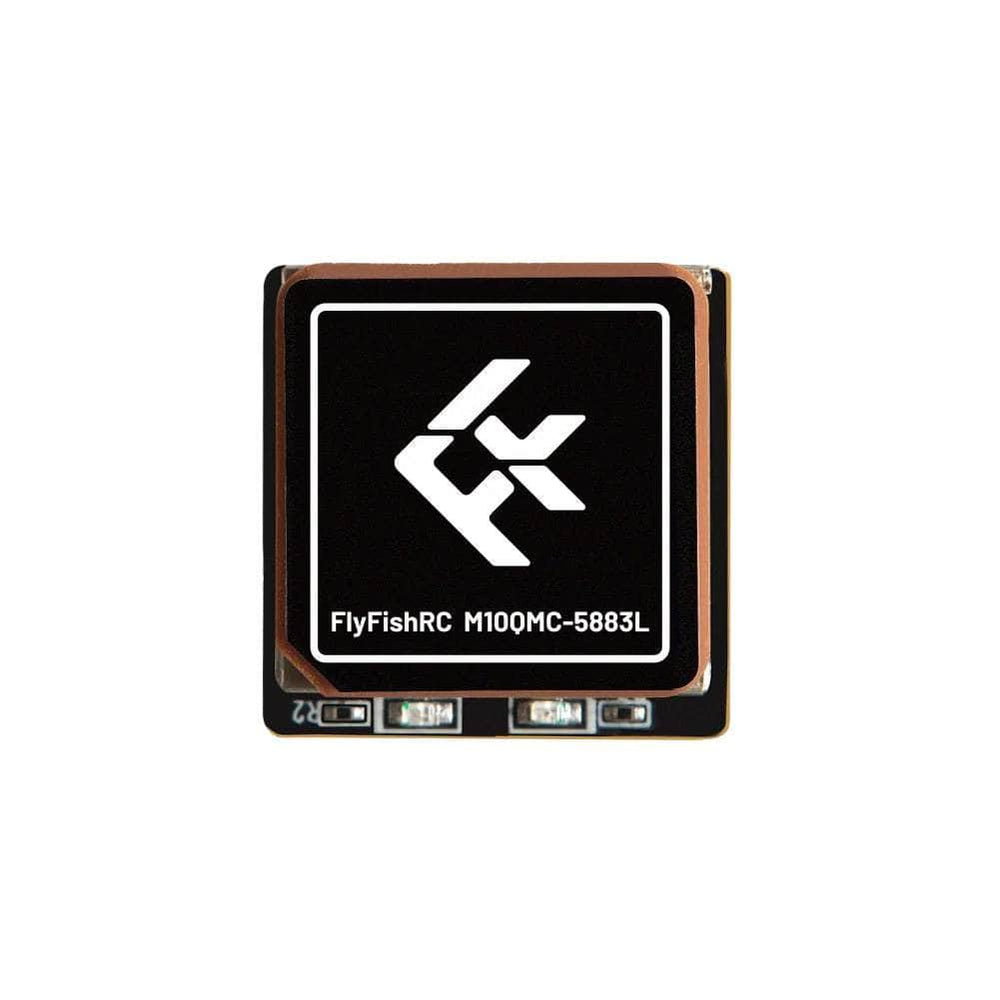

Check out the FlyfishRC-M10QMC! It is small, fast positioning, easy-to-use GPS. It adopts 18x18mm RHCP ceramic patch antenna that provides excellent reception capability and a highly stable connectivity. The built-in QMC5883L high-precision magnetometer provides precise azimuth pointing, and the u-blox10 generation chip allows subtle altitude changes to be skipped for more stability. Ideal for use with FPV drones, multi-rotors, fixed wing and other model products.

Check out our GPS selection and all our FlyFishRC products!

Features

  • 72 channel 10 Hz Refresh rate
  • Built-in TCXO crystal and farad capacitor for faster hot start
  • High sensitivity 18x18mm GPS patch antenna
  • SH1.0-6Pin terminal design, no soldering required
  • QMC5883L Magnetometer chip, precise pointing
FlyFishRC M8QMC-5883L GPS & Compass Module (10th Gen)

Specifications

  • GPS module: FlyFishRC M10QMC-5883L GPS Module
  • Frequencies: 72 channel
  • Refresh Rate: 10 Hz
  • Compass module: QMC5883L
  • Baud Rate:4800bps-115200bps (Default - 9600bps)
  • Sensitivity: Tracking: -162dBm, Capture: -160dBm,Cold Start:-148dBm
  • Accuracy: Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns
  • Cold start: <24s
  • Hot start: <2s
  • Maximum height: 50000m
  • Maximum speed: 500 m/s
  • Speed accuracy: 0.05 m/s
  • Maximum acceleration: ≦ 4G
  • Input Voltage: 3.3V-5V,current 25mA
  • Output Connector: SH1.0-6P
  • Weight: 8.8g

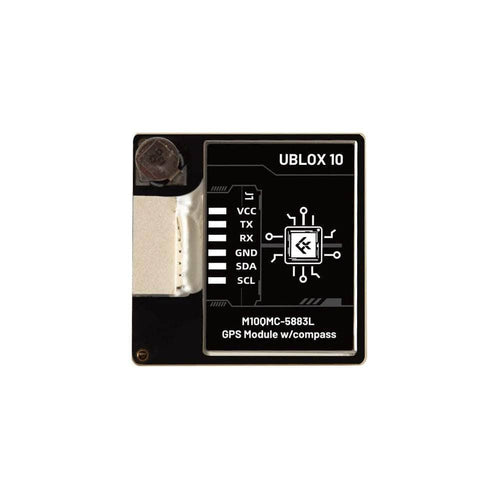

  • GPS pin definition: RX/TX UART
  • Compass pin definition: SDA/SLA
  • GPS patch antenna size: 18 x 18 mm
  • Total dimensions:20 x 20 x 11 mm

Includes

  • 1x FlyFishRC M10QMC GPS Module
  • 1x SH1.0-6 Pin Cable
  • 1x SH1.0 Connector
  • 1x GPS Manual




More Information:

  • SKU: E001035
  • Barcode: 6971360354901
