(PRE-ORDER) BetaFPV BNF Meteor75 1S Analog Whoop (2022) - FRSKY

$109.99
Original price $109.99 - Original price $109.99
Original price
$109.99 - $109.99
Current price $109.99
Add to Wishlist
Ask a Question

Details

Description

Pre-Orders shipping ASAP!

All products containing batteries must be shipped by a ground shipping method.

Want a 1S whoop for outdoor, around the house and the yard? Meteor75 Brushless Whoop Quadcopter would be your best choice! This whoop quadcopter is equipped with the ultralight F4 1S 5A FC (2022). The canopy has a special design and high-quality C03 FPV camera combined with 0802SE 19500KV motors make it perfectly balanced in all areas of performance.

Make sure to check out our other Pre-Built quads and the rest of our BetaFPV selection!

Features

  • Meteor75 is the first generation whoop powered by a brand-new BT2.0 connector 450mAh battery. The BT2.0 connector effectively decreases internal connector resistance for a much better discharge performance compared with the initial PH2.0 connector
  • The power system uses the latest 0802SE 19500KV motors and 40mm 2-blade props, which provides pilots a powerful indoor and outdoor flight.
  • Built-in 1.45g ultralight weight and upgraded C03 FPV camera. This new camera has optimal performance for indoor whoop drones.
  • Adopt with injection molding technique, this canopy is 1.60g ultralight weight and is more durable, anti-ruin, and heat-resistant, providing good protection for the whoop drone.
  • Reserve two UART ports on F4 1S 5A FC (SPI Frsky) board.
  • The various colors of the spare parts including the 75mm frame and micro canopy, offer pilots more choices. Using them with BETAFPV waterslide decals, pilots can easily DIY and build their unique whoop drones.

BetaFPV Meteor75 Whoop Quadcopter (2022) - FRSKY

BT2.0 Connector

BETAFPV has exclusively designed BT2.0 connector has broken through the bottle-neck of PH2.0 connector. There is a graph of comparison between BT2.0 connector 1S 450mAh battery and Emax 1S 450mAh battery. The discharge current is 11A in this testing. You could see that it has a longer time and improvement in voltage sag with BT2.0 connector, which brings better flight performance.

BetaFPV Meteor75 Whoop Quadcopter (2022) - FRSKY

Flight Controller

The latest F4 1S 5A flight controllers are applied to all BNF versions of Meteor75. The Frsky version reserves two UART ports for the available external receiver so it can be used as PNP and can be switched to Futaba SFHSS protocol through Betaflight configurator. The ESC on the new board powered by BB51 hardware in place of BB21 comes with Bluejay 96k ESC firmware, allowing 0802SE 19500KV motors to give full play to the efficiency of power. We update the gyro to BOSH BMI270 for better performance and stability since the new F4 1S 5A FC.

Meteor75: (Frsky)

FC Inside:F4 1S 5A FC (SPI Frsky)
Gyro: BMI270
FC Firmware: BETAFPVF411RX
UART Port: Two UART Ports
External RX: Supported

C03 Camera

C03 FPV Micro Camera is 1.45g ultralight weight and a great camera for indoor micro FPV quadcopters. It features a 1200TVL definition with 1/3" CMOS sensor, 2.1mm lens for 160° FOV, and excellent latency, which boasts high-quality, clear and sharper images through your goggles.

BetaFPV Meteor75 Whoop Quadcopter (2022) - FRSKY

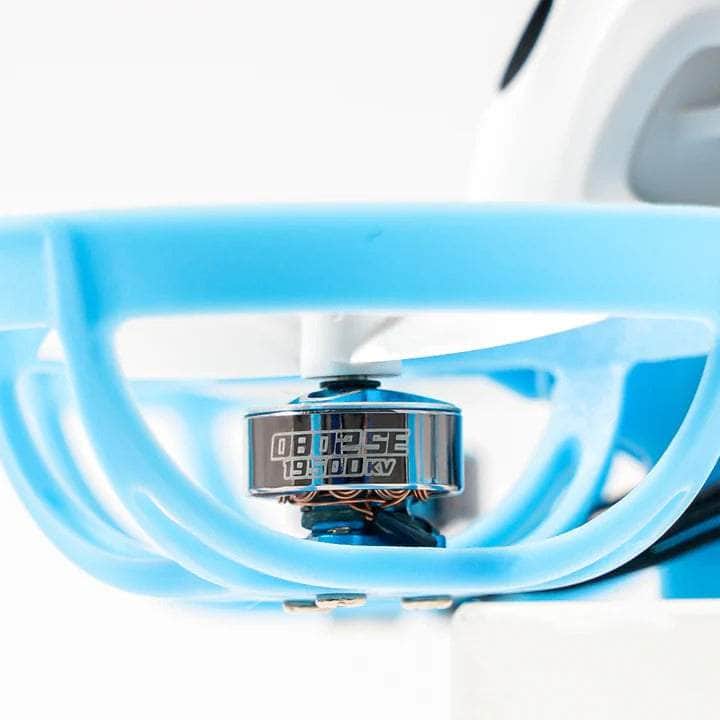

Motors

0802SE 19500KV Motor motor is a lightweight 1S motor, compared with the 0802 series brushless motors, it is not only significantly reduced the weight to only 1.88g/pc but ensures excellent performance of power and thrust. It makes the perfect dynamic balance, which gives the drone more flexibility and longer flying time.



BetaFPV Meteor75 Whoop Quadcopter (2022) - FRSKY

Frame

This frame is ultralight at only 5.68g and still durable. The battery slot is closer to the center of gravity for a smoother flying experience, and you will land on the motor screws instead of the battery. BETAFPV offers various colors of Meteor75 frames for options, making DIY easier.

BetaFPV Meteor75 Whoop Quadcopter (2022) - FRSKY

Specifications

  • Item: Meteor75 Brushless Whoop Quadcopter (2022)
  • FC&ESC:F4 1S 5A FC (SPI Frsky)
  • Frame: Meteor75 Frame
  • Motors: 0802SE Brushless Motor
  • Props: 40mm 2-Blade Propellers (1.0mm Shaft)
  • Camera: C03 FPV Camera
  • Tilt: 30° (default)/20° (optional)
  • Canopy: Canopy for Micro Camera 2022 version
  • Receiver Option: Frsky
  • VTX: M03 25-350mW VTX
  • Battery: BT2.0 450mAh 1S 30C Battery
  • Flight time: 6 mins (stable flying) / 4.5 mins (acro flying)

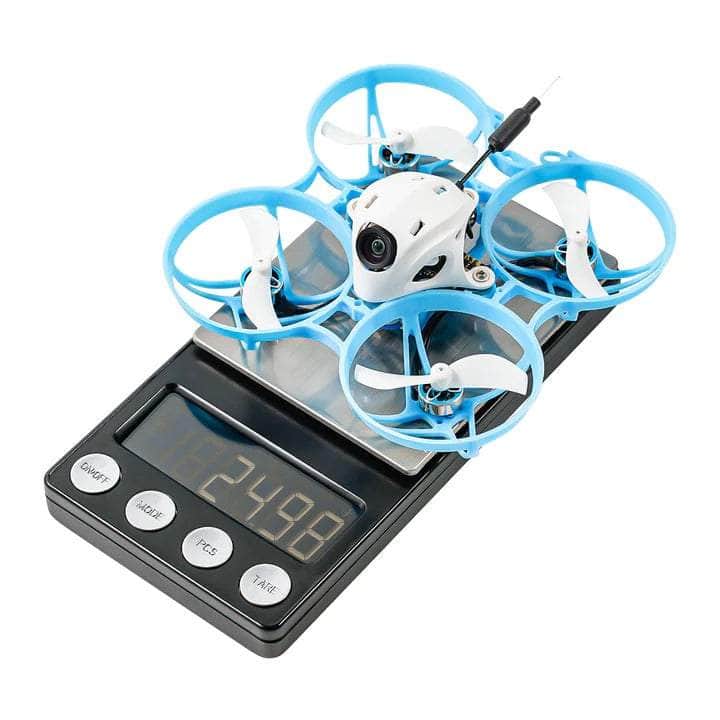

  • Weight: 24.98g

Includes

  • 1x BetaFPV Meteor75 Whoop Quadcopter (2022) - FRSKY
  • 2x 450mAh 1S 30C Battery with BT2.0 connector
  • 1x BT2.0 Battery Charger and Voltage Tester
  • 1x TypeC USB cable
  • 1x Customized Carry Case
  • 1x Spare 40mm 2-Blade props (1.0mm Shaft)
  • 1x Screwdriver
  • 3x Decorative Parts
  • 1x 20° Lens Camera Mount for C03 Camera
  • 1x 30° Lens Camera Mount for C02 Camera
  • 1x Pack of Screws
BetaFPV Meteor75 Whoop Quadcopter (2022) - FRSKY

More Information:

  • SKU: 11684
  • Barcode: 738156454094
