(PRE-ORDER) iFlight BNF Nazgul5 V3 6S 5" Analog Freestyle Quad - Choose Receiver

(PRE-ORDER) iFlight BNF Nazgul5 V3 6S 5" Analog Freestyle Quad - Choose Receiver

$259.99
$259.99 - $275.99
$259.99 - $275.99
$259.99
Receiver :
Add to Wishlist
Ask a Question

Details

Description

All PRE-ORDERS shipping ASAP!!

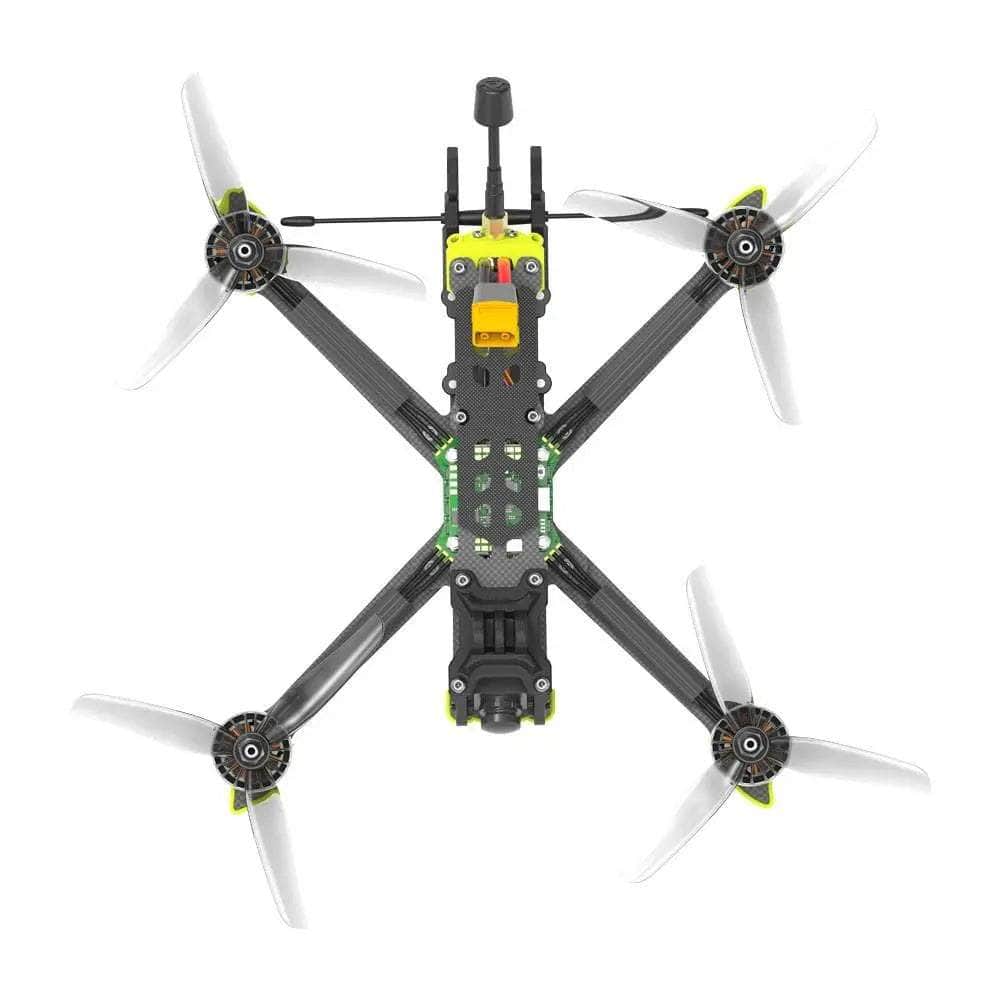

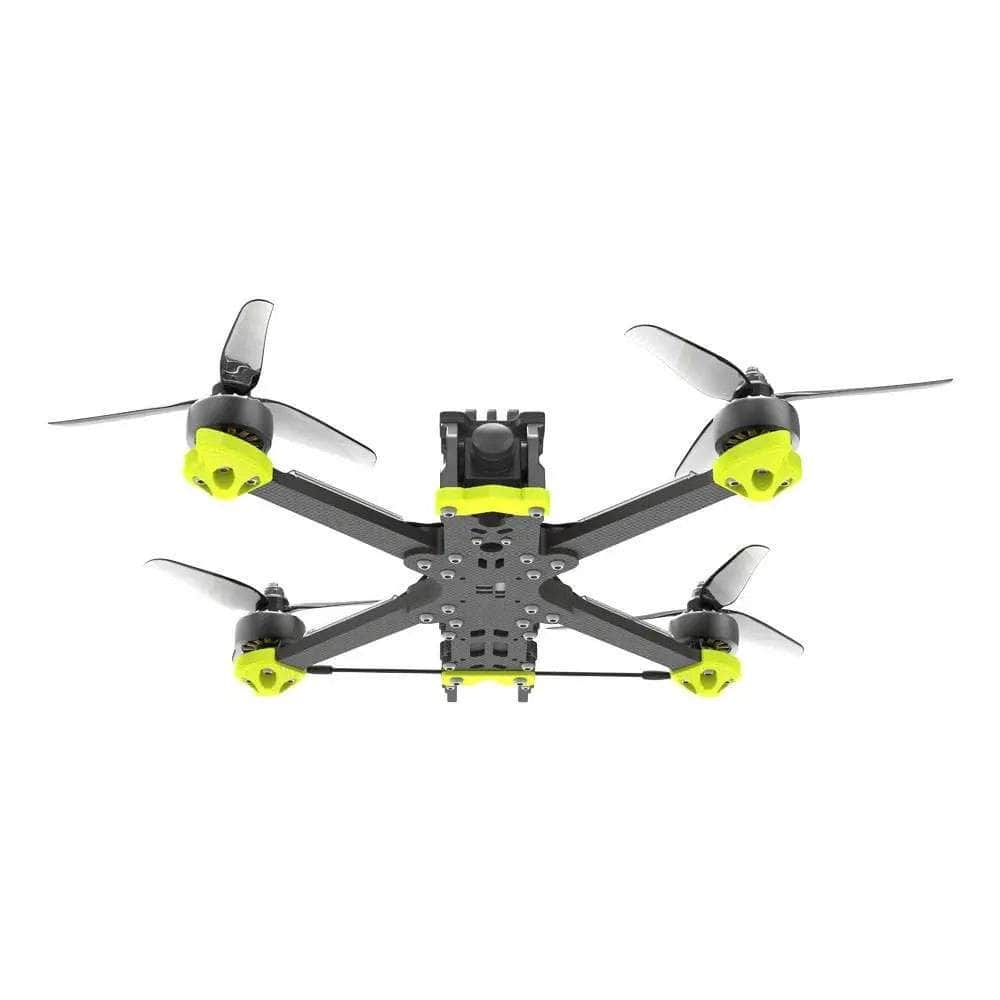

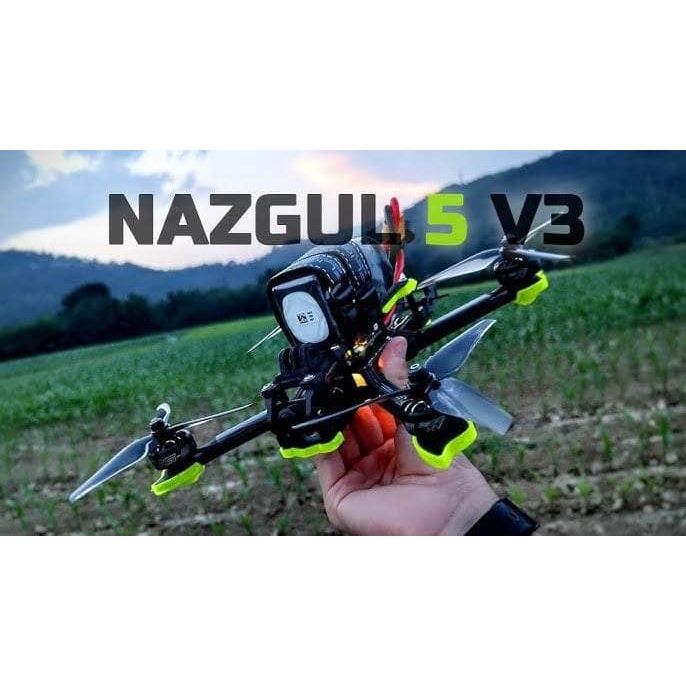

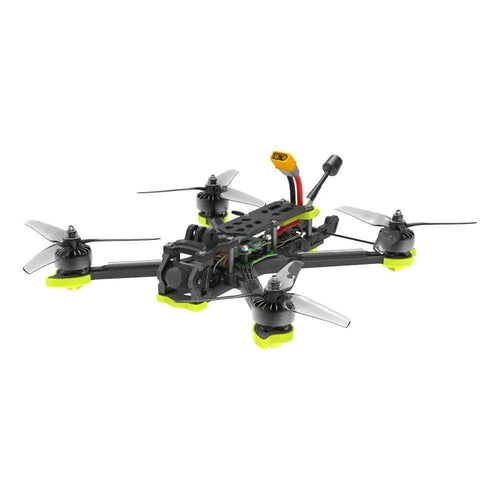

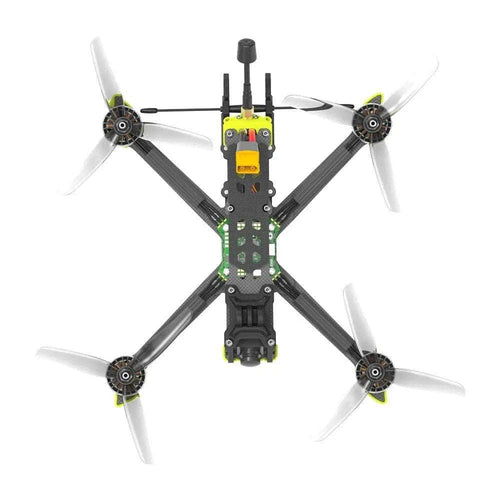

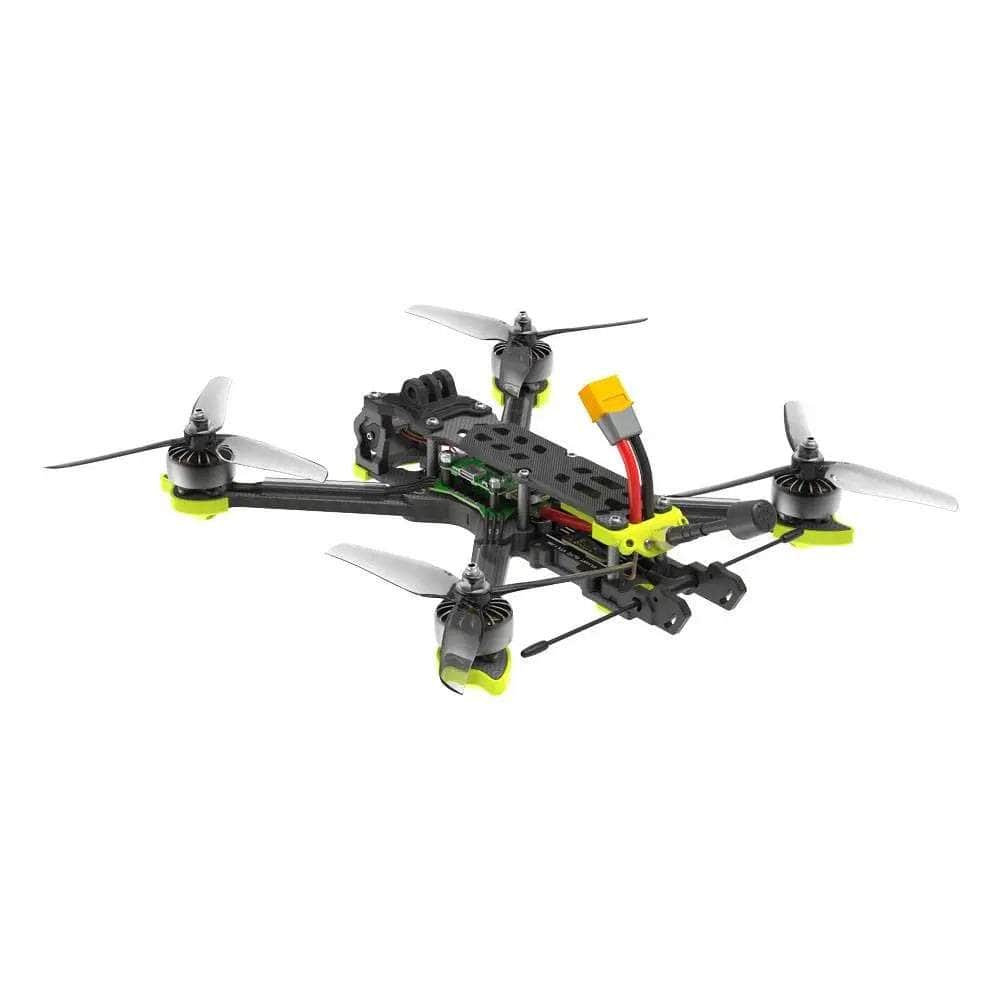

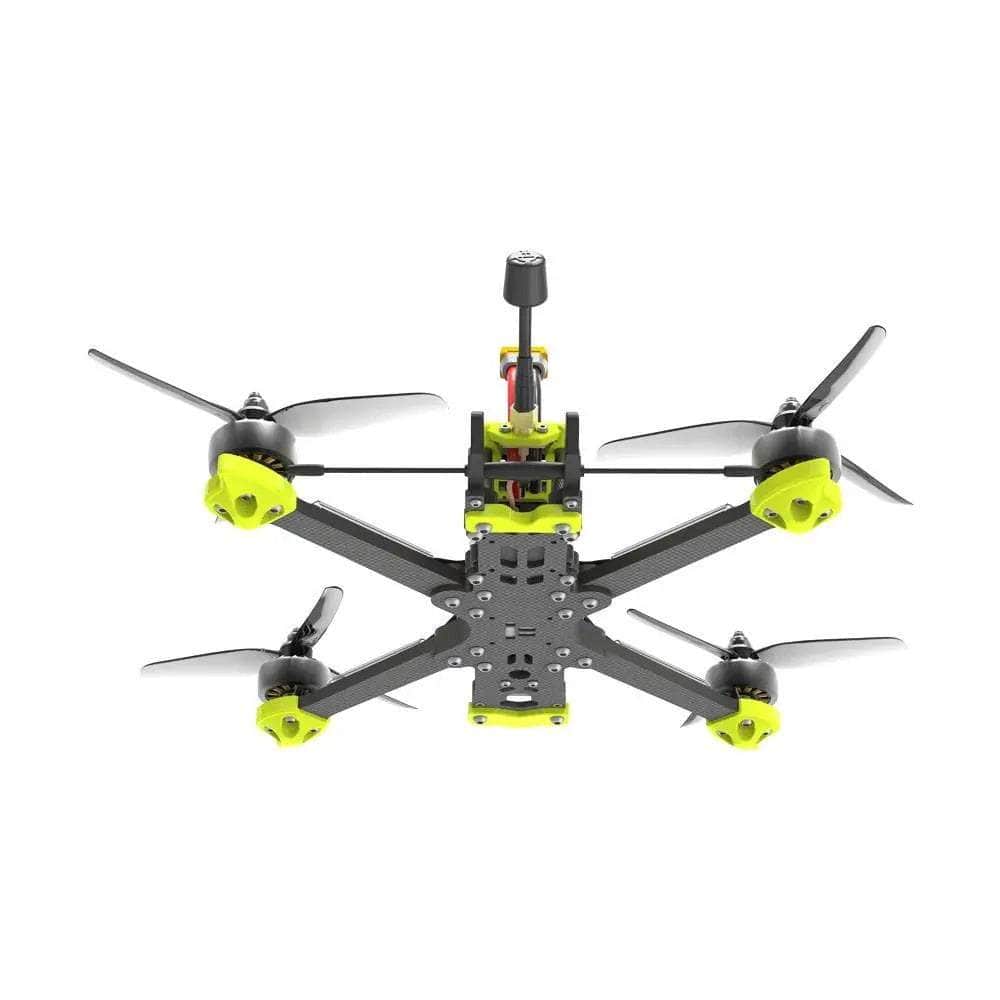

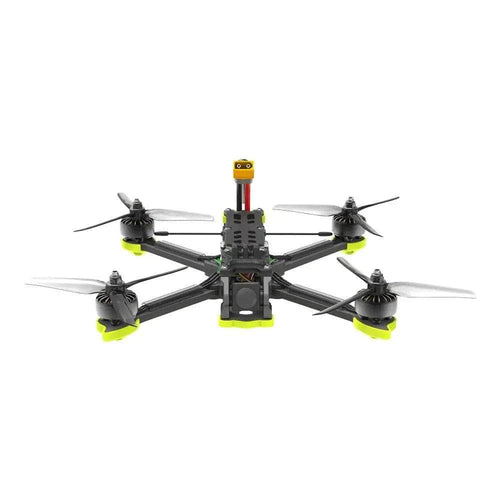

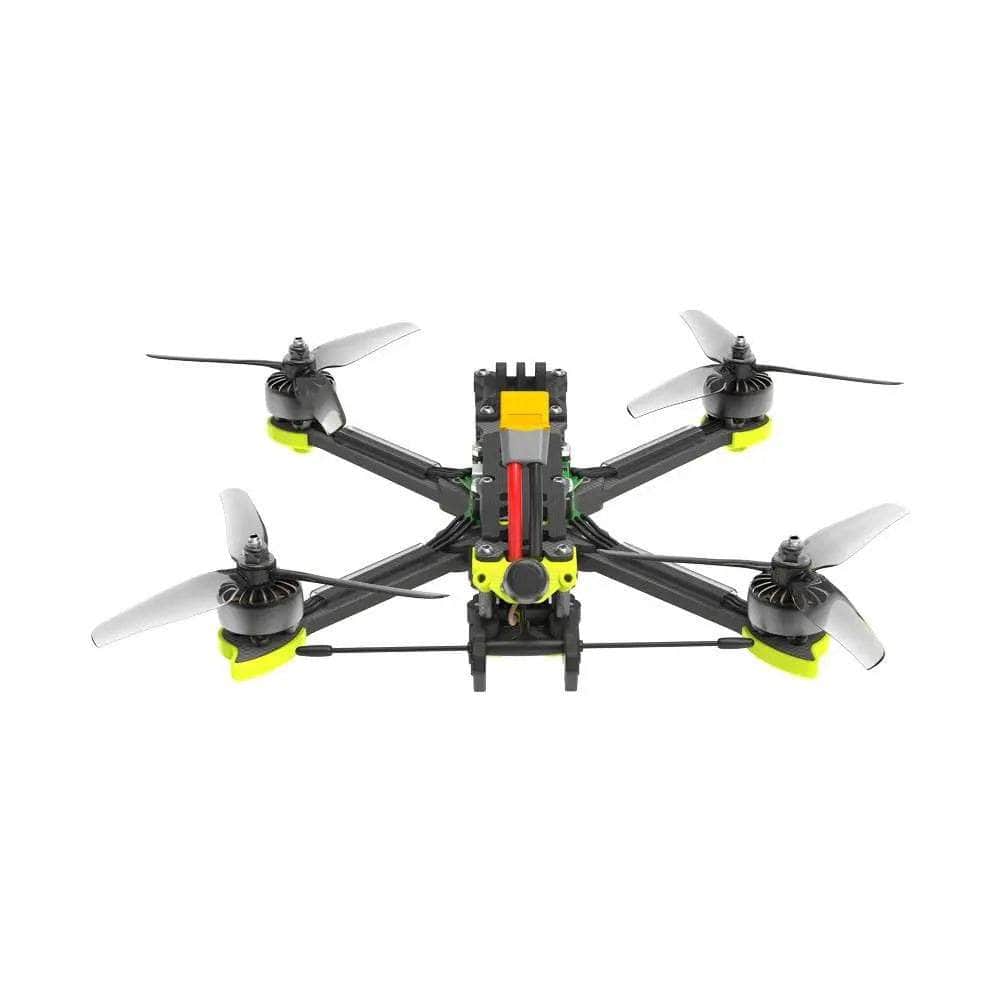

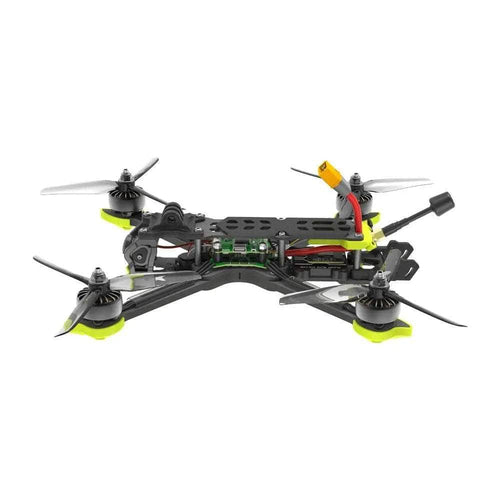

The iFlight Nazgul5 V3 6S 5" Freestyle Analog Quad is here! It includes the RaceCam R1 FPV Camera and Nazgul 5" tri-blade props, XING-E Pro 2207 motors, BLITZ F7 Flight Controller, BLITZ 1000mW+ VTX, and the BLITZ E45S 2-6S 45A BLHeli32 4-in-1 ESC. Boasting CNC aluminum camera mount with vibration-reduction silicone for increased protection. Great for freestyling and long-distance shots with your GoPro camera! The Nazgul5 Freestyle quad is a go-to gold standard for freestyle BNFs of great value made by the great people at iFlight.  The Nazgul5 V3 is a 5" freestyle frame is made of super stiff carbon for minimal resonance.

+ High-quality parts
+ Sturdy frame structure
+ Generous mounting space
+ Optimized for O3 Air Unit
+ GoPro camera mount included

Be sure to check out our Bind-n-Fly collection as well as all of our iFlight Products!

Features

  • XING-E Pro 2207 motors and NAZGUL F5 props
  • 5" version also fits 5.1" style propellers
  • Fits both 30.5x30.5 and 20x20 stacks
  • 5mm arm design for more durability
  • Popular True-X configuration
  • LED illuminated logo
  • TPU crash-guards
  • Easy-Swap arms

Specifications

  • Product Name：Nazgul5 V3 6S Analog
  • FC: BLITZ F722 FC
  • ESC: BLITZ E45S 45A 4-IN-1 ESC
  • Video Transmission: BLITZ 1mW+ VTX
  • Frame: 245 ±2 mm wheelbase
  • Motor: XING-E Pro 2207 motors
  • Prop: Nazgul 5 inch propellers
  • Takeoff Weight: Approx. 435g / 660±10g (With 6S 1400mAh Battery)
  • Dimensions (L×W×H): 173×173×34±2 mm
  • Diagonal Distance: 245mm
  • Max Speed: 190 Km/h (Manual Mode)
  • Maximum Takeoff Altitude: 3200 m
  • Max Hover Time: Approx. 7.5 mins (No Load with 6S 1400mAh Battery)
  • Max Flight Distance: 5 km
  • Max Wind Speed Resistance: Level 7
  • Operating Temperature Range：-10° to 40° C (14° to 104° F)
  • Antennas: Single Antenna
Video Transmission System
  • Product Name: BLITZ Whoop 1mW+ VTX
  • Input voltage: 7V～34V
  • Interface: MMCX
  • Power levels: PIT/25mW/400mW/800mW/1600mW
  • Channels: 40 (including Raceband)
  • Mounting pattern: 30.5x30.5mm/Φ3
  • Lightweight: 18.9g (excluding antenna)
  • VTX telemetry: IRC Tramp
  • Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
  • RC Tramp VTX table values: 25mW/400mW/800mW/1600mW

Includes

  • 1x Nazgul5 V3 6S Analog BNF
  • 1x Antennas
  • 2x Battery pads
  • 2x Nazgul F5 Prop(Pairs)

More Information:

  • SKU: 20525
  • Barcode: 691023516793
