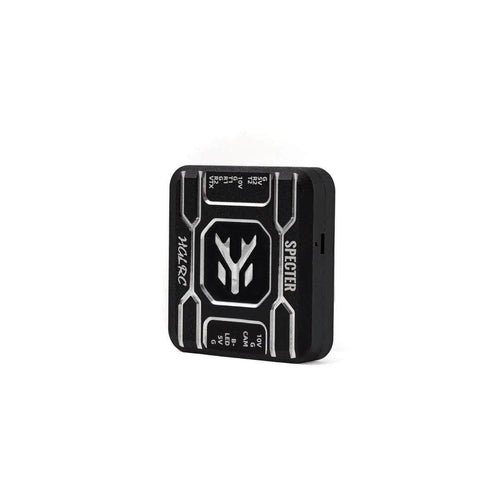

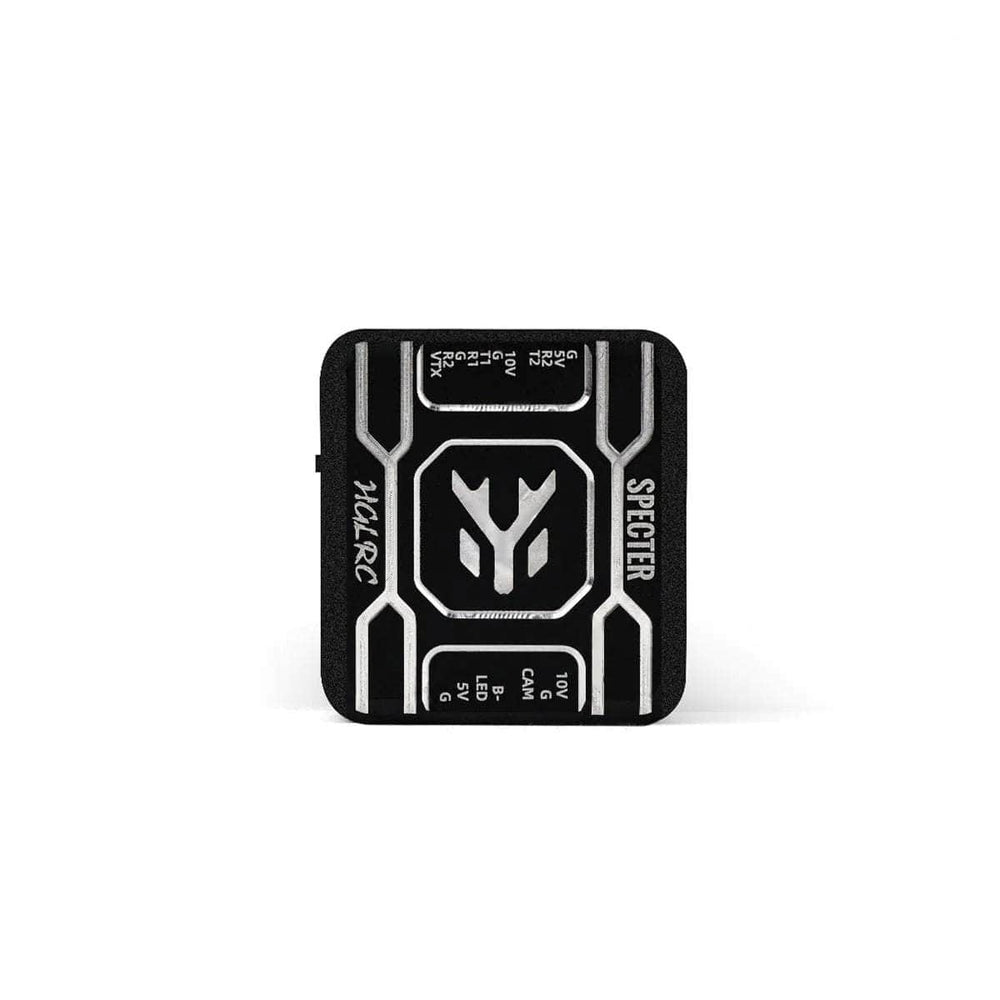

HGLRC SPECTER F722 Mini 2-6S 20x20 Flight Controller - MPU6000

Description

The HGLRC SPECTER F722 Mini 2-6S 20x20 Flight Controller boasts a powerful STM32F722 processor with up to 216 MHz of computing power for more seamless control, improved feel, and fast response times. It also features a high-performance MPU6000 gyroscope with 42688 pads for optimum stability and a 16MB black box for plenty of flight data storage. Plus, bluetooth parameter adjustment with the SpeeyBee APP allows you to adjust serial port, PID and other flight control parameters anytime and anywhere. There's even a 10V electronic switch for hassle-free power-on/off and nano-scale coating on both sides to protect against water, moisture, and corrosion.

Interested in the HGLRC F760 Mini F722 3-6S 20x20 Stack/Combo (F7 FC / G071 32Bit 60A 4in1 ESC) - MPU6000?

Interested in just the HGLRC SPECTER G071 128K 32Bit 60A 3-6S 20x20 4in1 ESC?

Check out all our 20x20 FCs, and all of our HGLRC products!

Specifications

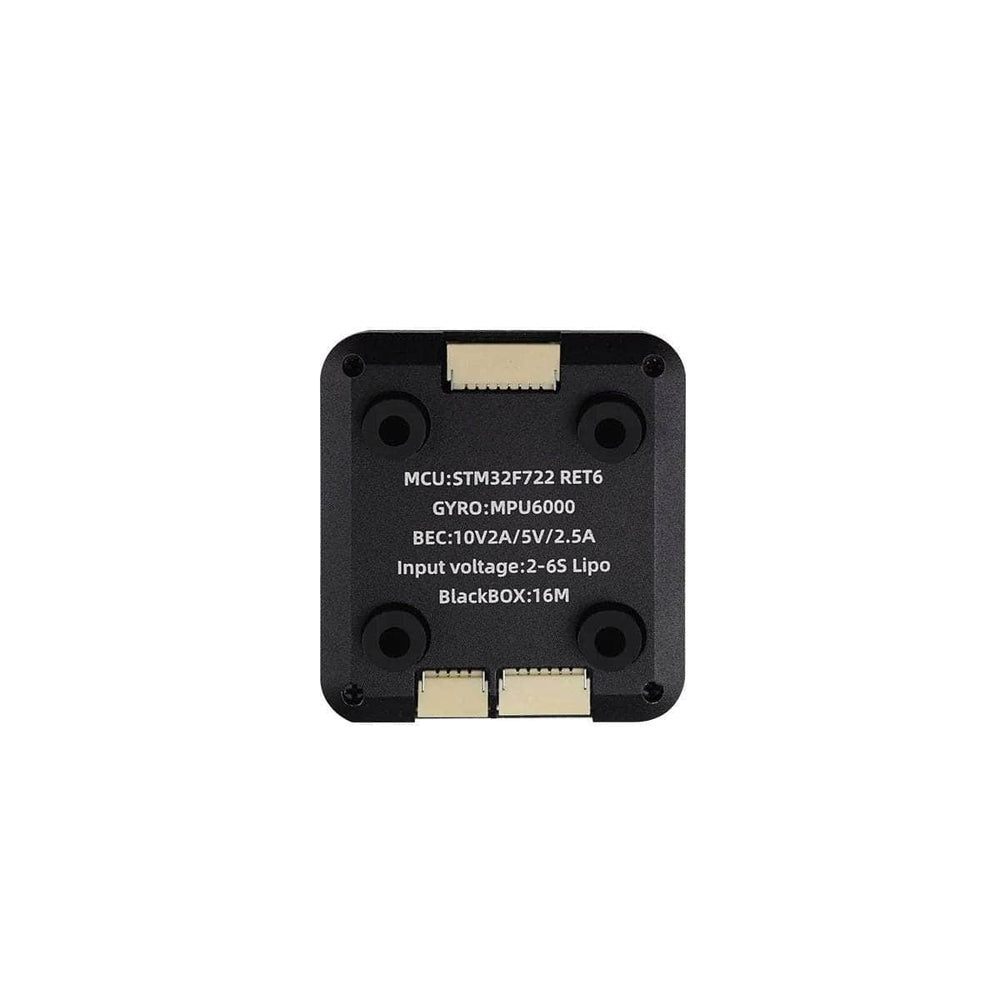

HGLRC SPECTER F722 mini FC

• FC Firmware: HGLRC F722 Mini
• MCU: STM32F722
• Gyro: MPU6000
• OSD: AT7456E
• Barometer: BMP280
• Blackbox 16MB

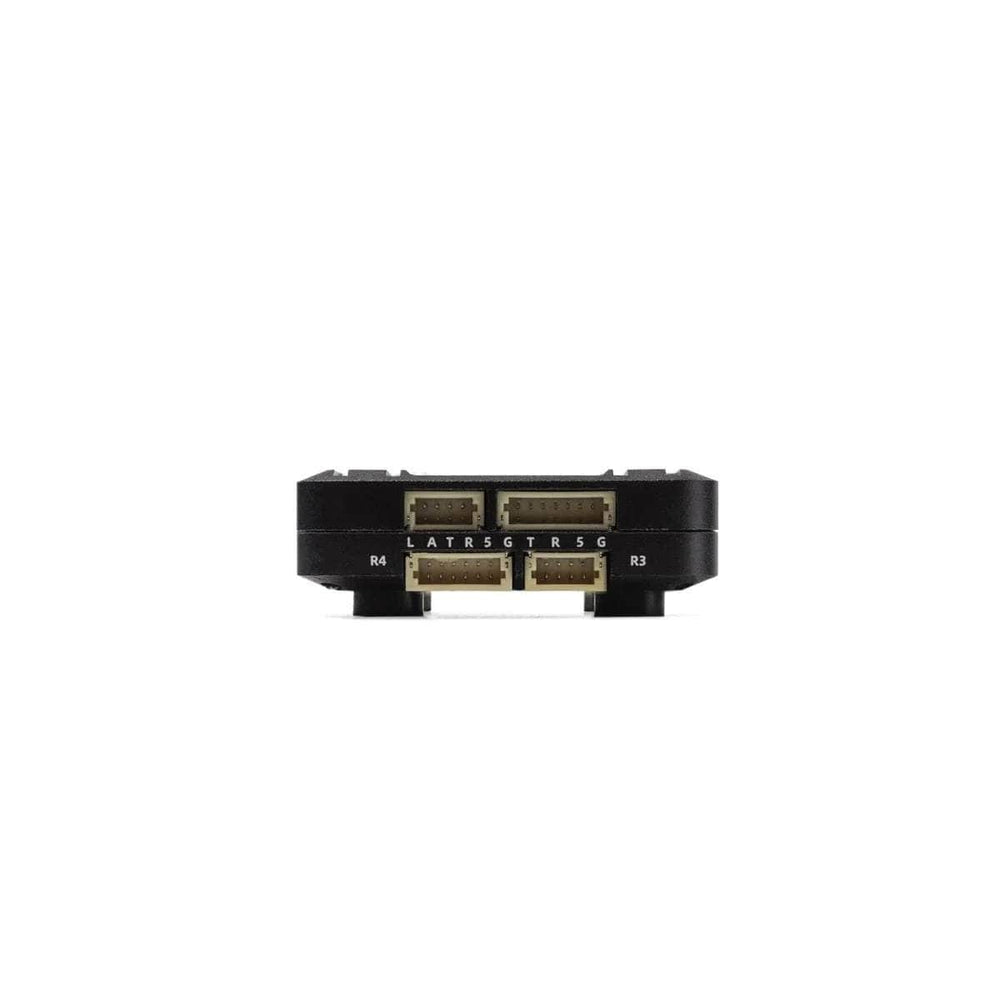

• UARTS:5
• Input Voltage: 7.4V-22.8V/2-6S LiPO
• BEC: 10V2A/5V2.5A
• Size: 37mmx34mmx9.8mm
• Mounting: 20x20, M3
• Weight: 18g

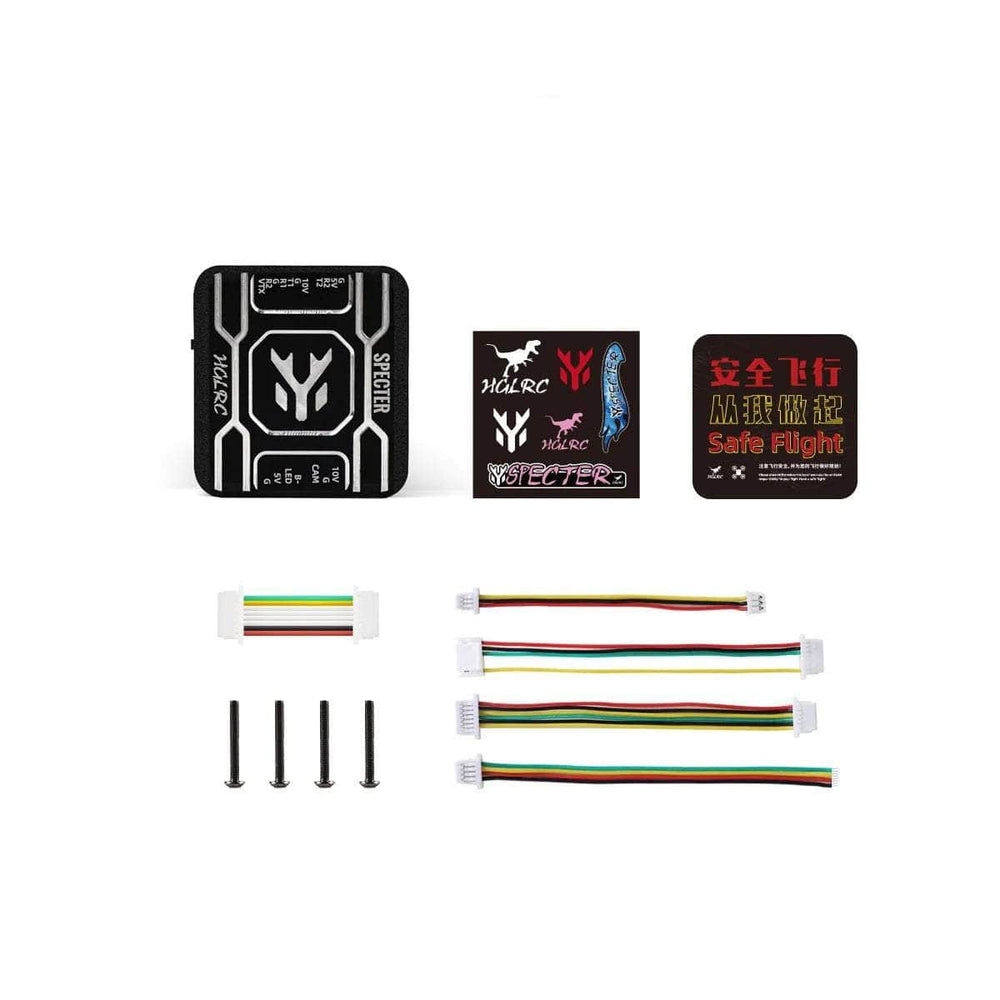

Includes

• 1x HGLRC SPECTER F722 mini flight controller

• 1x 30AWG 25mm double-ended SH1.0-8P cable

• 1x 30AWG 70mm single-head SH1.0-7P/single-head SH1.0-6P DJI cable

• 1x 30AWG 70mm single-head SH1.0-7P/single-head GH1.25-6P VTX cable

• 1x 30AWG 60mm single-head SH1.0-3P/single-head 1.25-3P camera cable

• 1x 30AWG 100mm single-head SH1.0-4P receiver cable

• 4x M3x20 hexagon socket screws
