HGLRC F760 Mini F722 3-6S 20x20 Stack/Combo (F7 FC / G071 32Bit 60A 4in1 ESC) - MPU6000

Description

The HGLRC F760 Mini F722 3-6S 20x20 Stack/Combo is a powerful and reliable choice for your drone. With a 32-bit processor, a 4-in-1 ESC capable of up to 60A current(65A burst), and a high-performance MPU6000 gyro, you will get smooth and precise flight performance.

Check out all our 20x20 stacks, and our HGLRC products!

Specifications

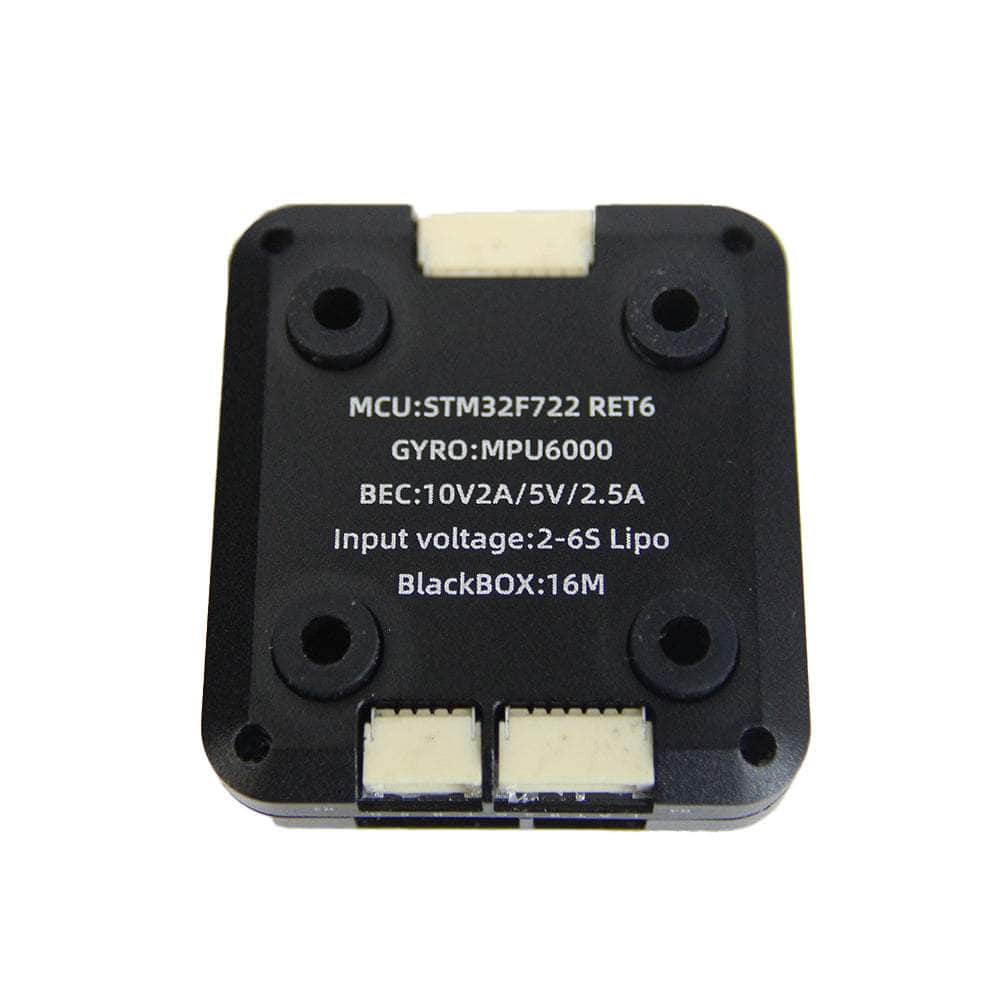

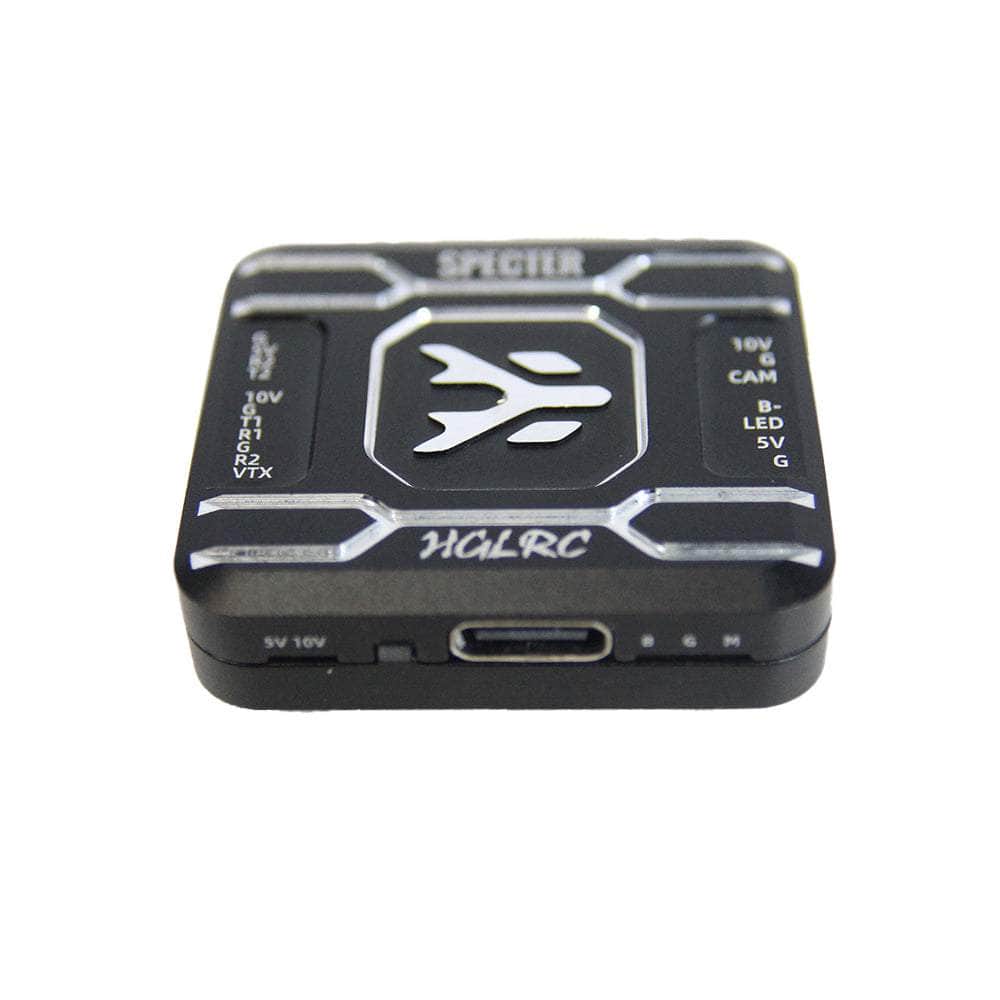

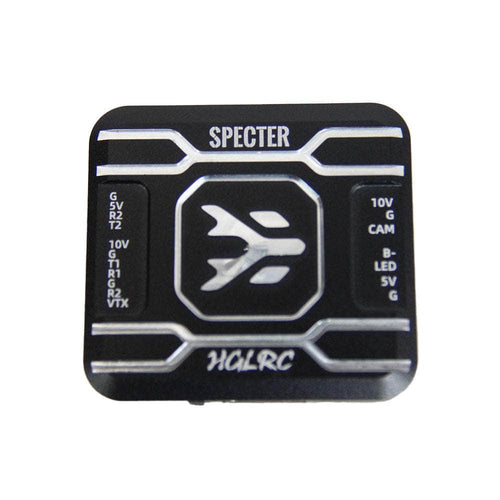

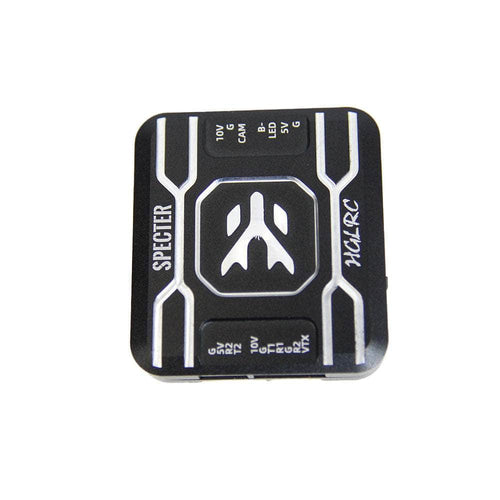

HGLRC SPECTER F722 mini FC

• FC Firmware: HGLRC F722 Mini
• MCU: STM32F722
• Gyro: MPU6000
• OSD: AT7456E
• Barometer: BMP280
• Blackbox 16MB
• UARTS:5
• Input Voltage: 7.4V-22.8V/2-6S LiPO
• BEC: 10V2A/5V2.5A
• Size: 37mmx34mmx9.8mm
• Mounting: 20x20, M3
• Weight: 18g

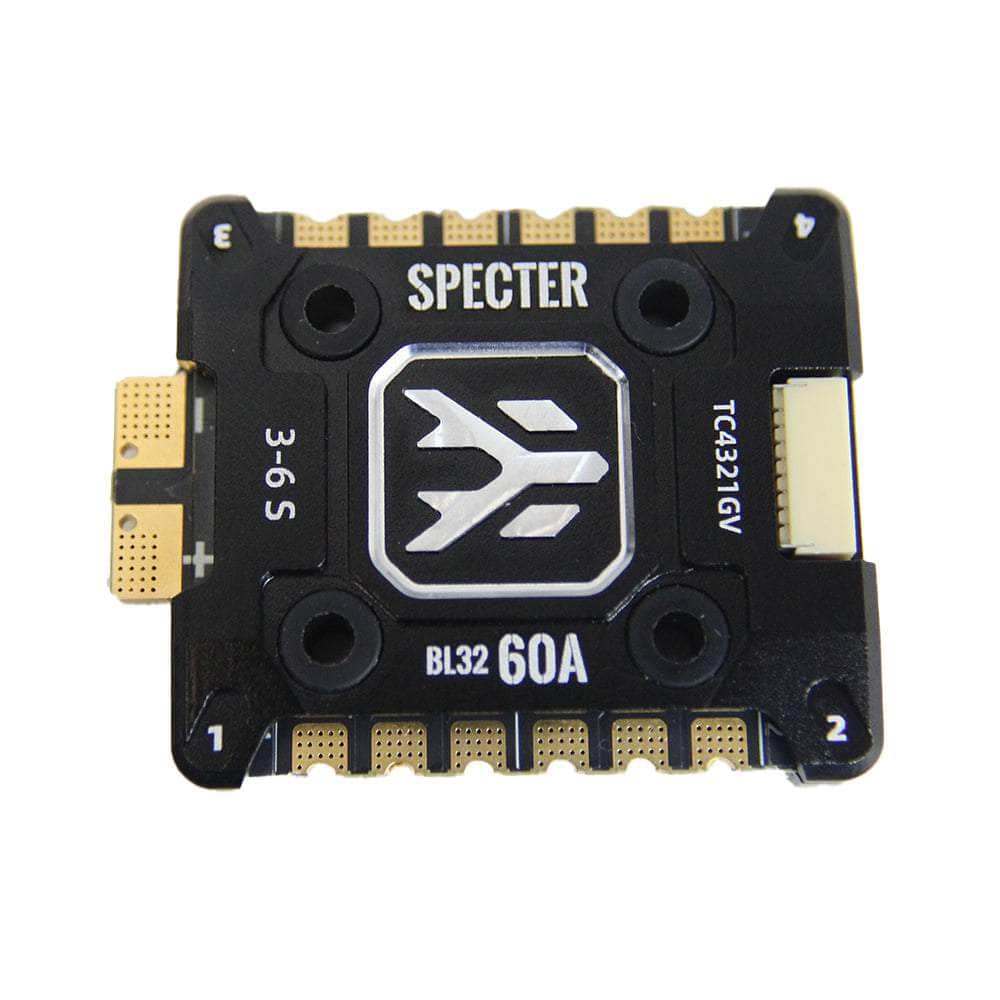

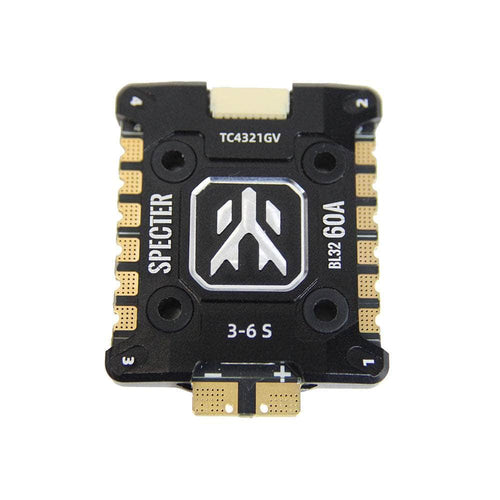

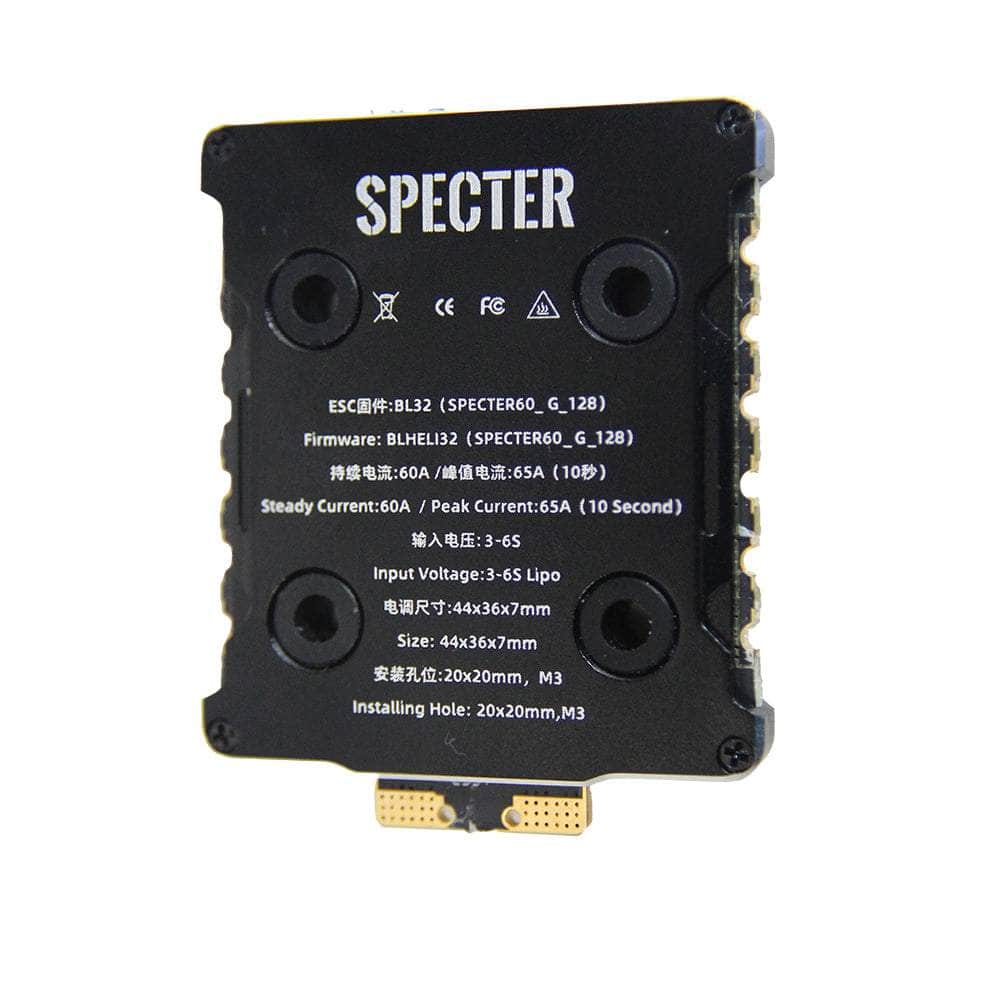

 HGLRC SPECTER 60A 3-6S ESC

• Input voltage: 3-6S
• Continuous Current: 60A
• Burst Current: 65A (10 Seconds)
• MCU: STM32G071
• Firmware: BL32 ( SPECTER60_G_128)
• Size: 44mmx36mmx7mm
• Mounting: 20x20, M3
• Support protocols: Dshot600/300/150/Oneshot125/42, MultiShot
• Weight: 19.5g

 Includes

• HGLRC F760 Mini 3-6S 20x20 Stack/Combo (F722/ G071 32Bit 60A 4in1 ESC) - MPU6000

HGLRC SPECTER F722 mini MPU6000

HGLRC SPECTER 60A 4in1 ESC

Wiring Diagram
