HGRLC M100 Mini GPS Module (10th Gen)

Description

The HGLRC M100_MINI GPS. Coming in with the new 10th generation UBLOX chip design, for fast and accurate positioning. With its small size of 15x15mm, this Mini GPS is compatible for your 2 to 7 inch long range quads. The ceramic antenna and externally expanded PCB design allow M100 MINI GPS to receive satellite signals more effectively.

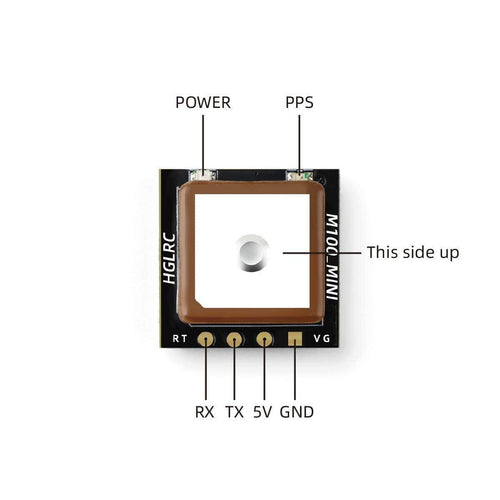

From the laboratory from HGLRC, their team has design the GPS to take to less than 1 minute for it to reach the 8 satellites required for take-off. At the same time, it supports receiving GPS, Galileo, and BDS three satellite signals, allowing you to locate in any area quickly. The HGLRC designers of this mini GPS harbors consideration for ease of use. With the onboard LED indicators, including the power indicator and positioning PPS indicator, so that you can know the working status of GPS well.

Check out our GPS selection and all our HGLRC products!

Features

• Using the new 10th generation UBLOX chip design, fast and accurate positioning.
• New protection circuit for the signal IOs

• Selected ceramic antenna and externally expanded PCB design to effectively receive satellite signals
• Support GPS, Galileo, BDS three-mode positioning, and fast positioning in any area
• Compatible power supply, support 3.3V-5V DC power input
• Using UBLOX output protocol and 10Hz output frequency

Specifications

• Chip: M10(10th Generation Chip)
• Power Supply: 5V
• Antenna: Ceramic Antenna
• Receiving Format:  GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, OZSS L1
• Receiving Channel: 72
• Baud Rate: 115200bps
• Output Protocol: UBLOX
• Output Frequency: 1Hz-10Hz,Default 10Hz
• Speed Precision: 0.05 m/s
• Level Positioning Precision: 2D ACC2.0m(Outdoor)
• Receiving Sensitivity: Trace -166dBm
• Capture-160dBm
• Dynamic Characteristics: Max Height:50000m
• Max Speed: 500m/s
• Max Acceleration: 4G
• Working Temperature: -40℃-+85℃
• Storage Temperature: -40℃-+105℃
• Size: 18.5mm x 18.5mm x 7.1mm

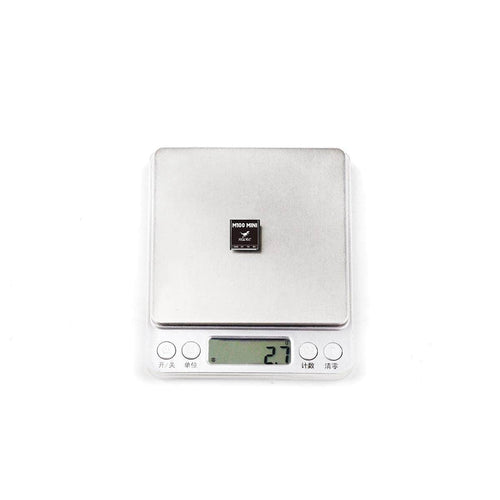

• Weight: 2.6g

Includes

• 1x HGRLC M100 Mini GPS Module

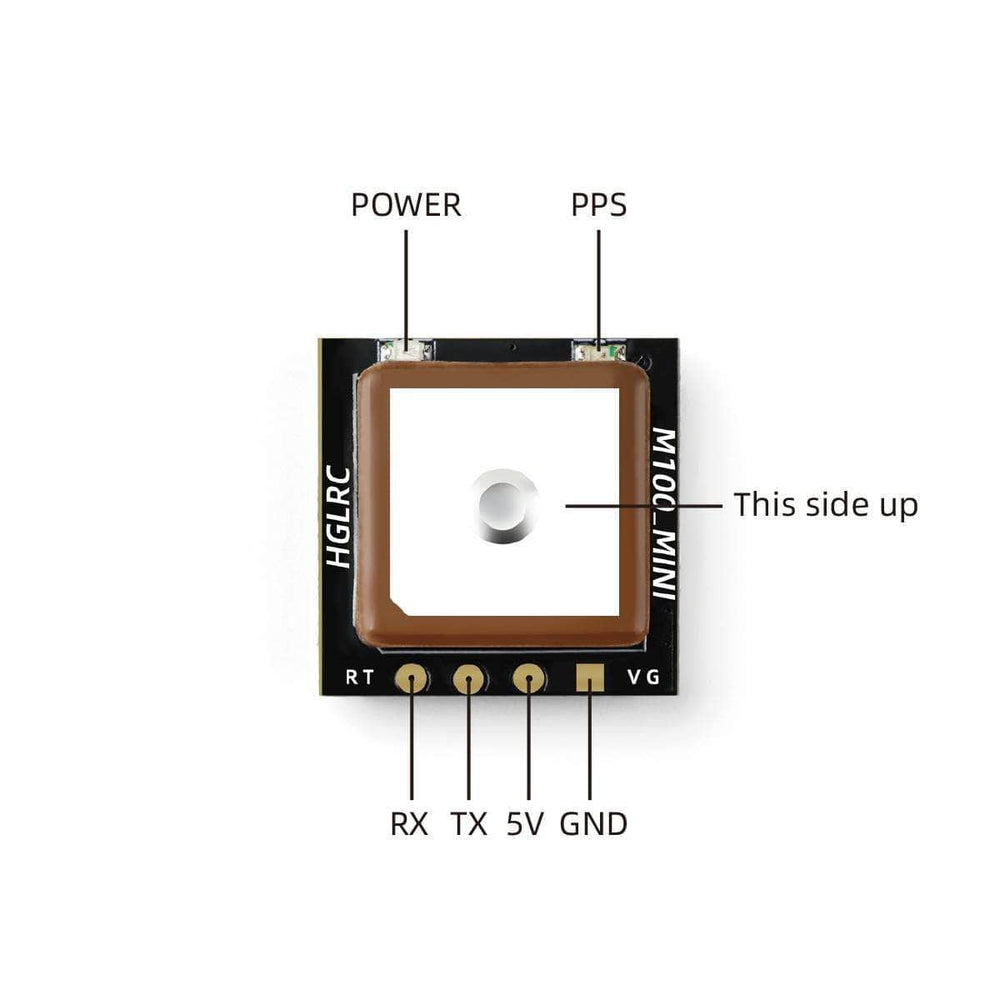

Wiring Diagram and Betaflight setup
