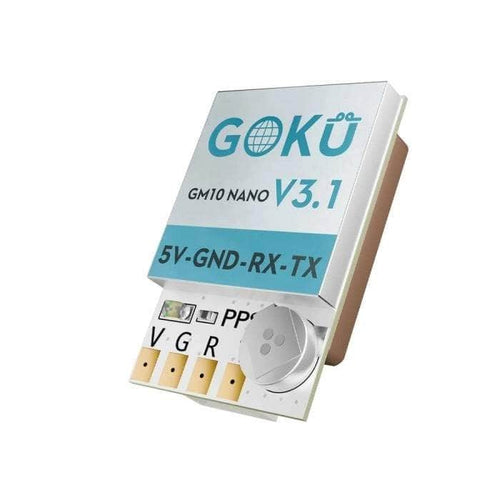

Flywoo GOKU GM10 Nano V3.1 GPS Module

Description

The V3.1 version of the GOKU GM10 Nano GPS retains its extremely small size and adds a new plug. No soldering is required, making it plug-and-play for easy installation. It features the latest M10050 chip, supports multiple satellite systems, the positioning is more accurate, and the speed of star search is faster.

Check out our other GPS options, as well as the rest of our Flywoo selection!

Features

• Ultra lightweight

• Three Module

• 4-Pin Pad

• PPS LED

Specifications

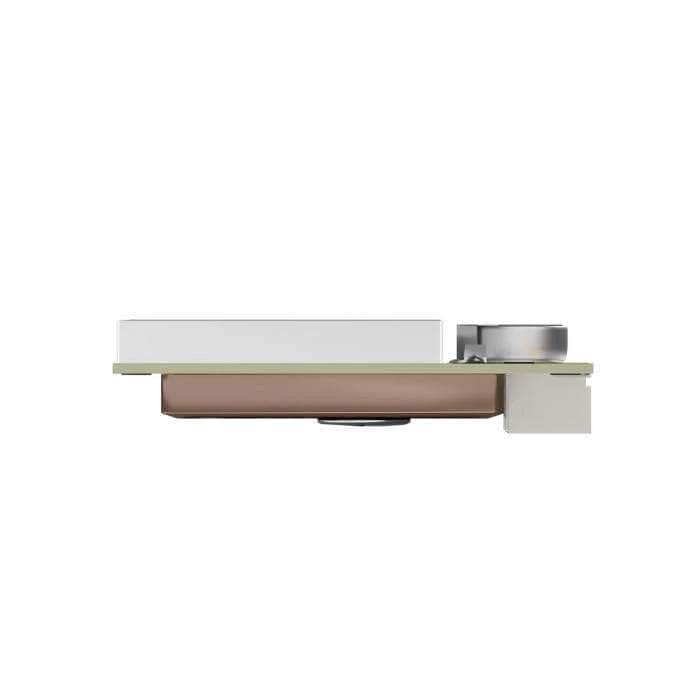

• Dimension: 12mm x 16mm x 4.5mm

• Model: GM10 NANO V3 GPS

• Connector: 4-pin Pad

• Brand: FLYWOO

• Weight: 2.5g

INDICATOR

• PPS LED: Yellow. The LED is not bright when the GPS is not fixed and flashes when the GPS is fixed.

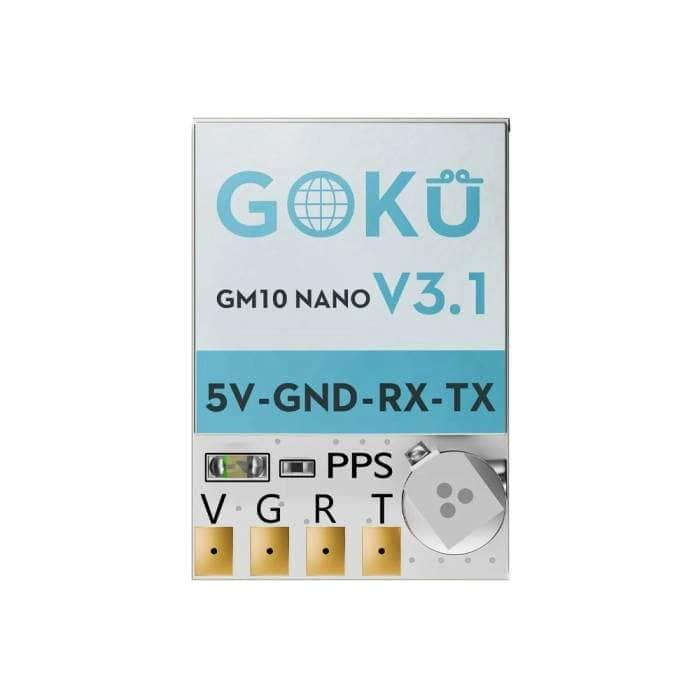

• Module’s Pins: RX, TX, 3.3-5V, GND

ELECTRICAL CHARACTERISTICS

• Receiving Format: GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS

• Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1

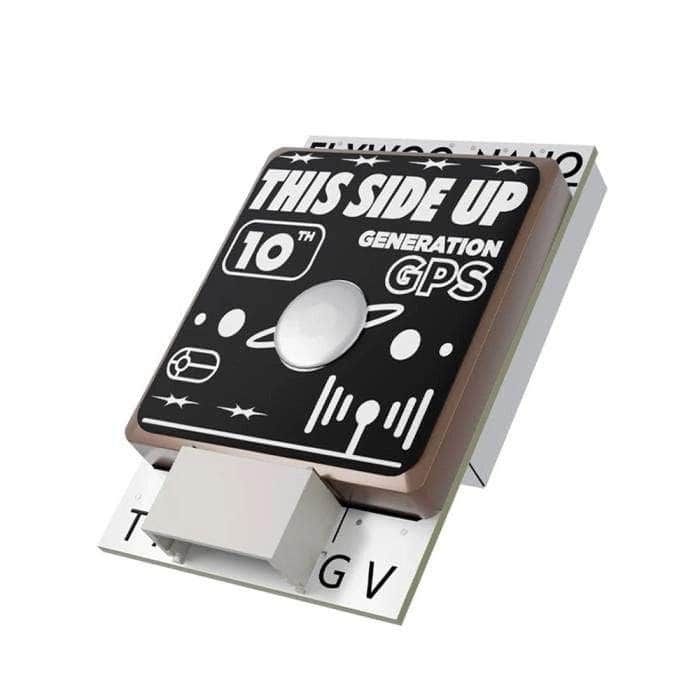

• Chipset: M10050 (Tenth Generation Chip)

• Default Protocol: GPS, Galileo, BeiDou

• Channels: 72 Searching Channels

DATA AND UPDATE RATE

• Support Rate: 4800 bps to 921600 bps, Default 115200 bps

• Data Protocol: BF4.3.X (UBLOX) / BF4.2.X (NMEA)

• Output Frequency: 1 Hz to 10 Hz, Default 10 Hz

• Data Level: TTL or RS-232, Default TTL level

POWER CONSUMPTION

• Operating Temperature: -40°C to +85°C

• Storage Temperature: -40°C to +105°C

• VCC: DC Voltage: 3.3-5V

OPERATIONAL LIMITS

• Acceleration: Less than 4g

• Altitude: Max 50,000 m

• Velocity: Max 500 m/s

SENSITIVITY

• Reacquisition: -160 dBm

• Tracking: -162 dBm

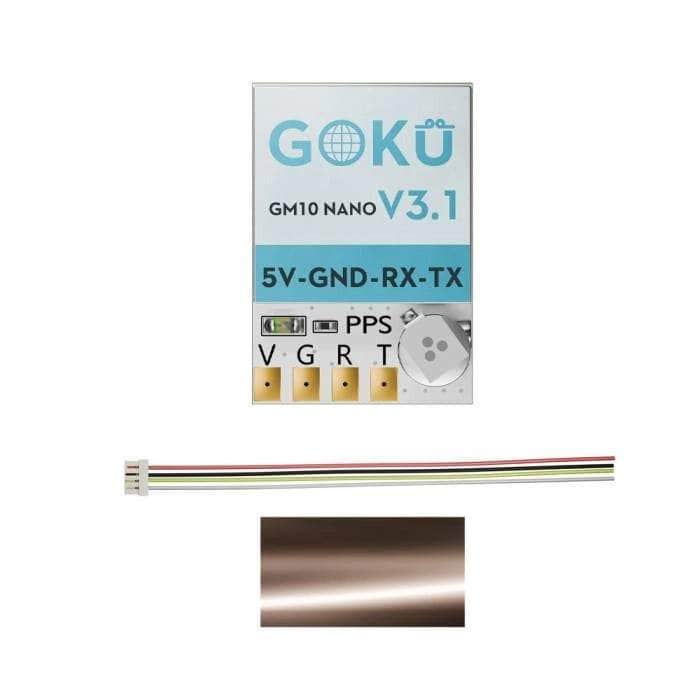

Includes

• 1x Flywoo Goku GM10 NANO V3.1 GPS

• 1x 100mm Cable

• 1x Copper Foil
