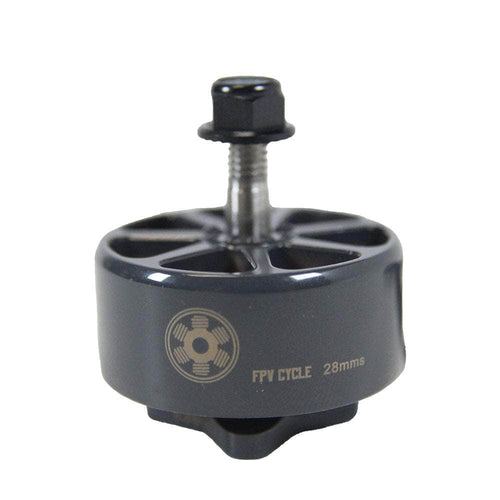

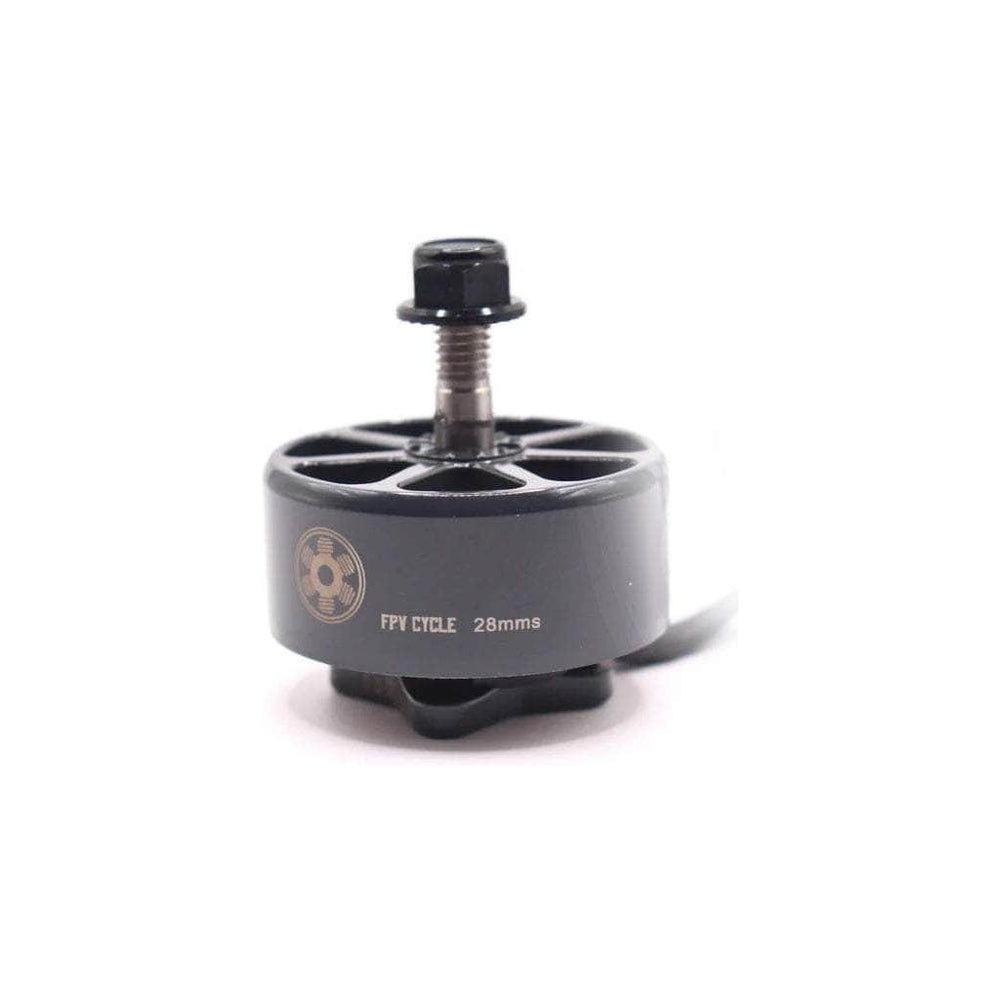

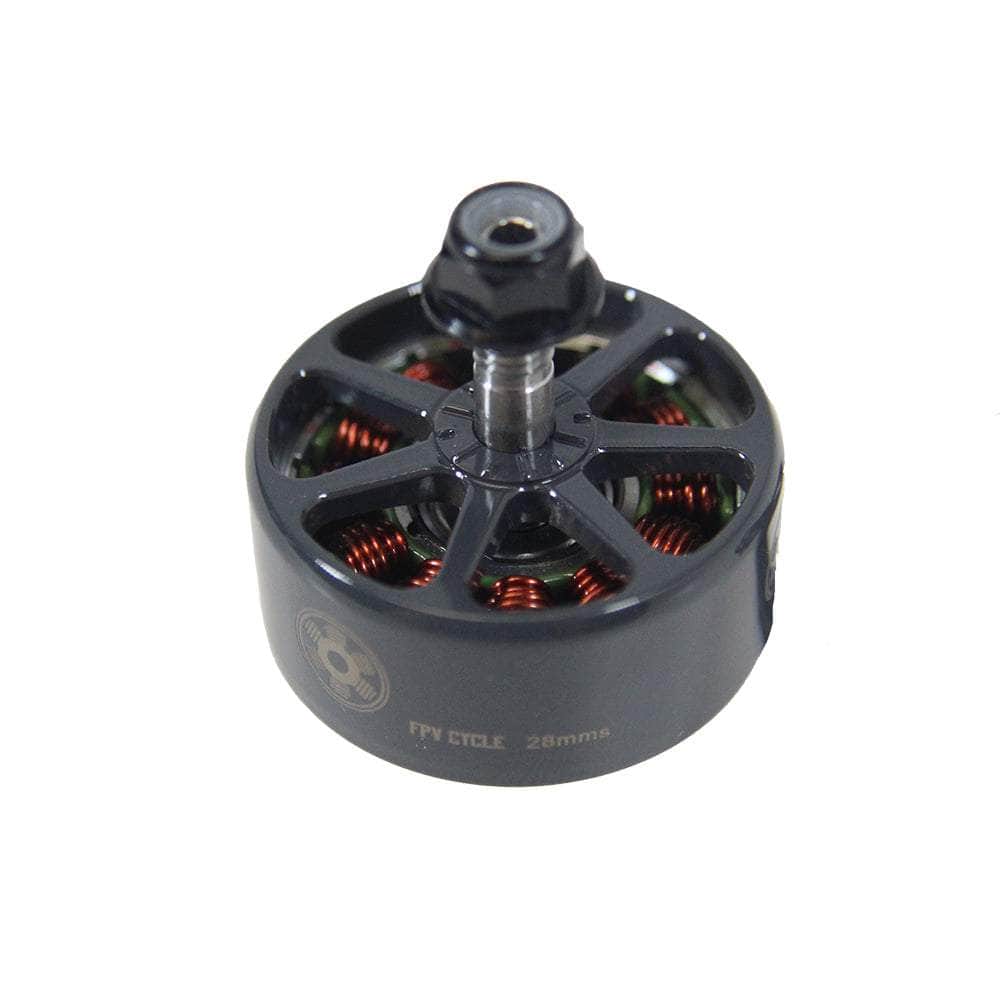

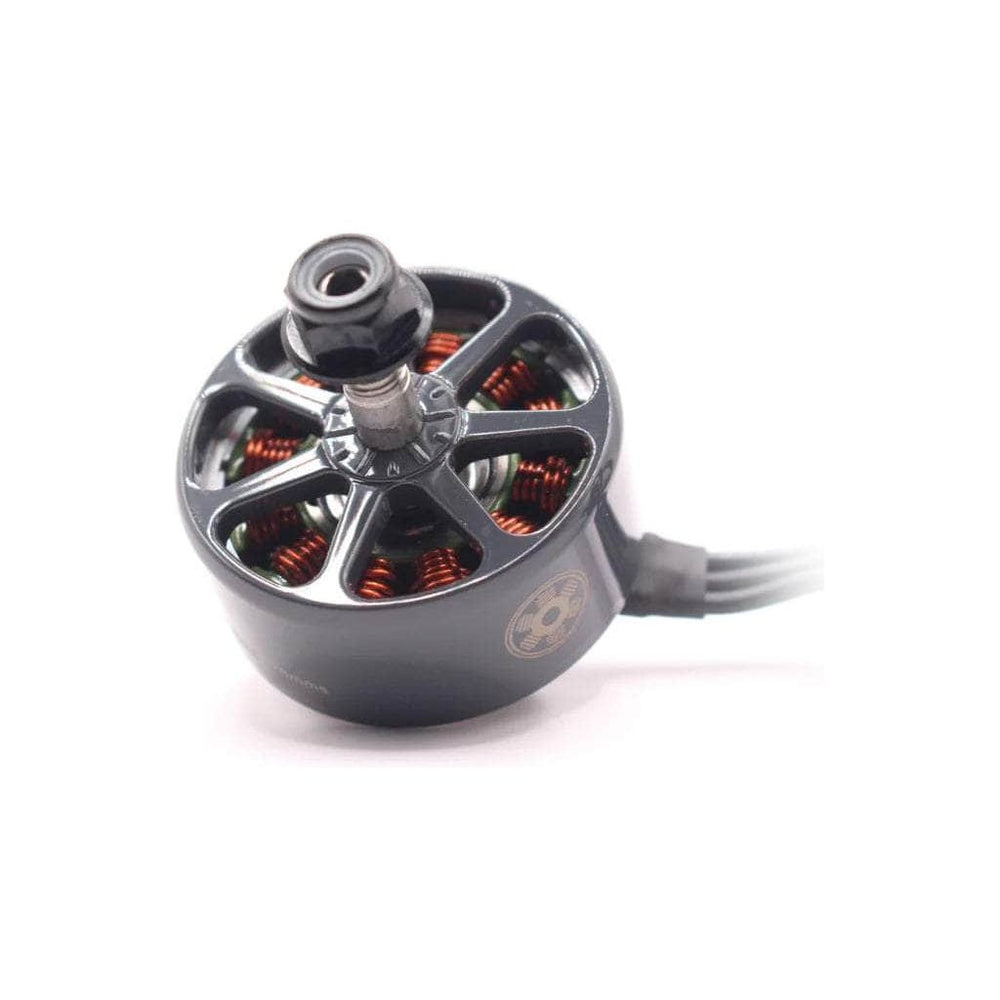

FPV Cycle 28mm 1300Kv Motor

FPV Cycle 28mm 1300Kv Motor

$28.99
$28.99 - $28.99
$28.99 - $28.99
$28.99
Out Of Stock
Add to Wishlist
Ask a Question

Details

Description

The 2809 is a great size because of it's proportion of width to height providing good permanent magnetic flux, adequate stator heat dissipation, good efficiency, good motor weight and excellent low and high rpm control for typical 7-8" loads on 6S with it's 1300kv.

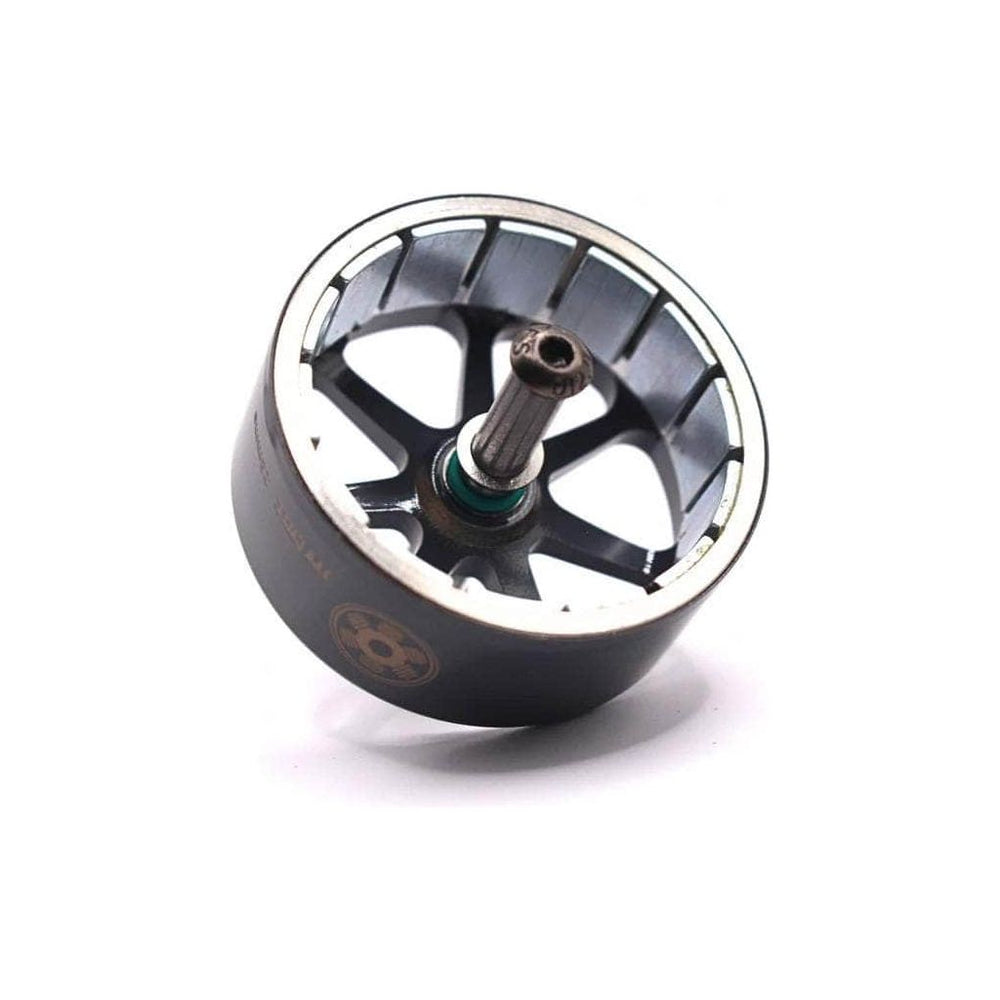

This motor is built with the latest components RCinpower has to offer and parts we've found to perform well. Various adjustments and quality of life improvements include bell durability design, bearing accessibility, flush mounting, magnet heat dissipation and other minor details.

Check out our other motors, and all our FPVCycle selection!

Specifications

  • Weight: 53g with 20cm 18awg wire
  • KV: 1300
  • Configuration: 12N14P
  • Input Voltage: 6-8S
  • N52H arc magnets
  • 260℃ enamel copper wire
  • 0.2mm laminations
  • Titanium Alloy hollow shaft
  • Japanese NMB 13x6x5mm bearings
  • Wire: 18AWG 20cm length
  • Material: 7075 Aluminum
  • M5 Prop shaft

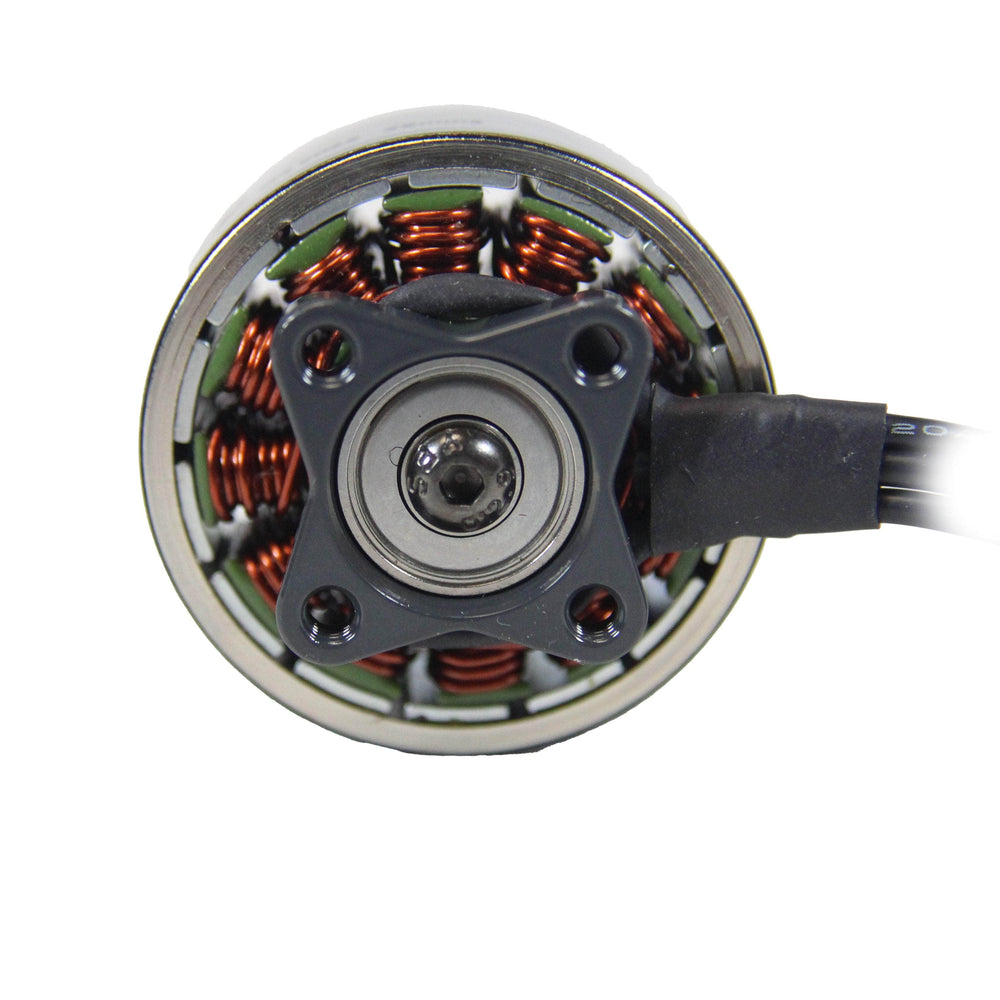

  • Motor Mounting: M3 19X19mm flush mount base

Includes

  • 1x FPV Cycle 28mm 1300Kv Motor

More Information:

  • SKU: FPVE-28mm-1300KV-Motor
  • Barcode: 691023479722
