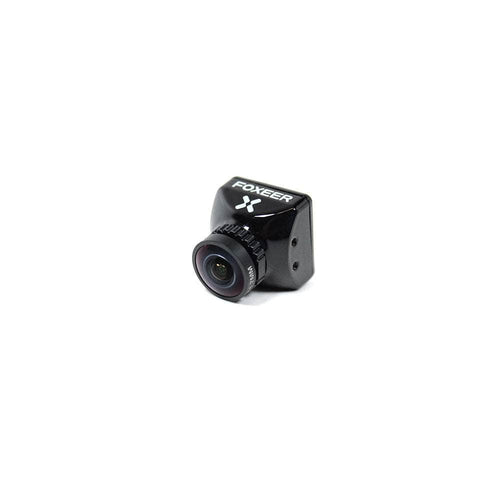

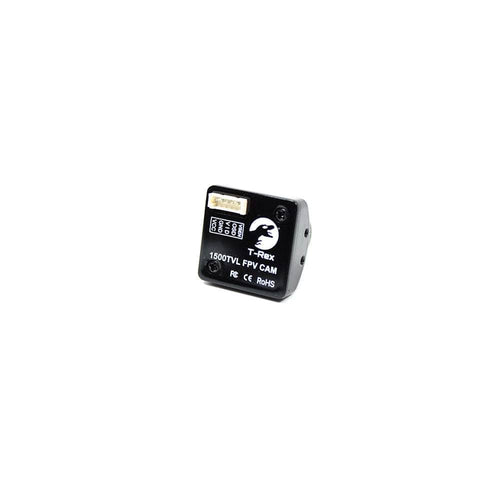

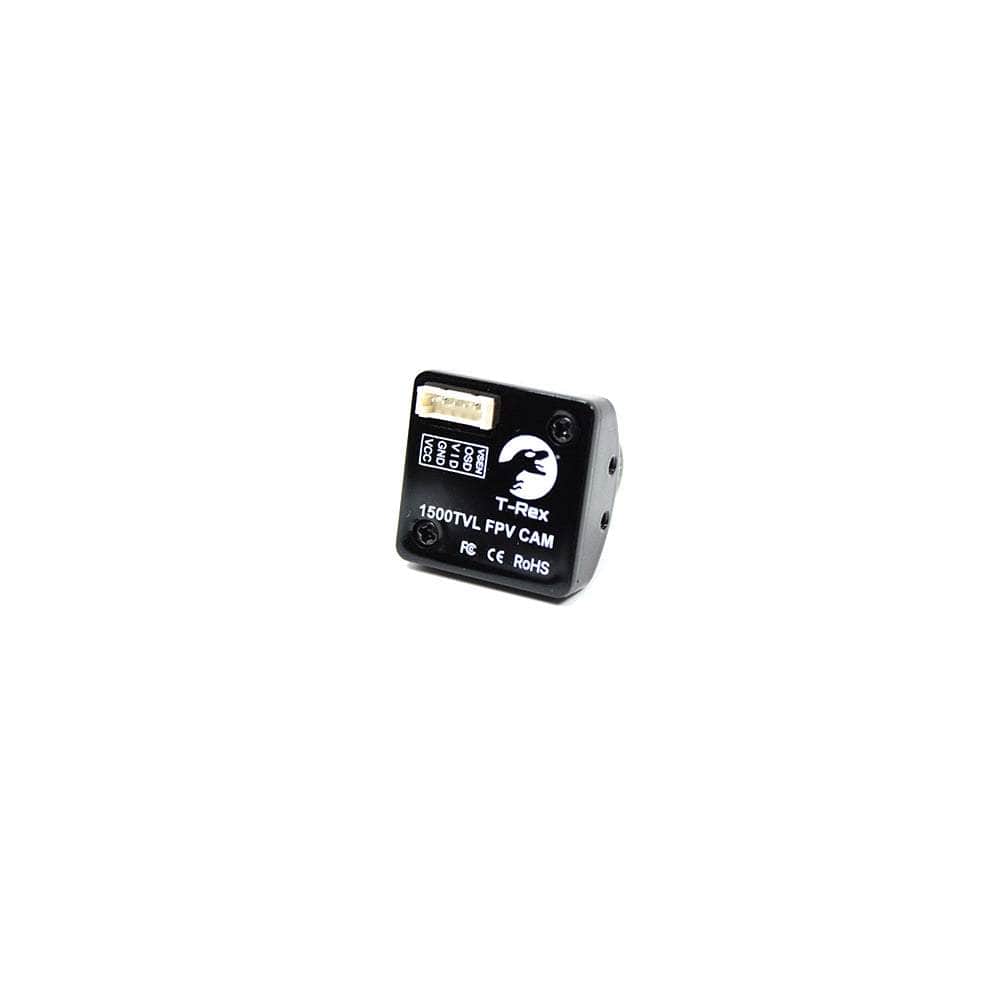

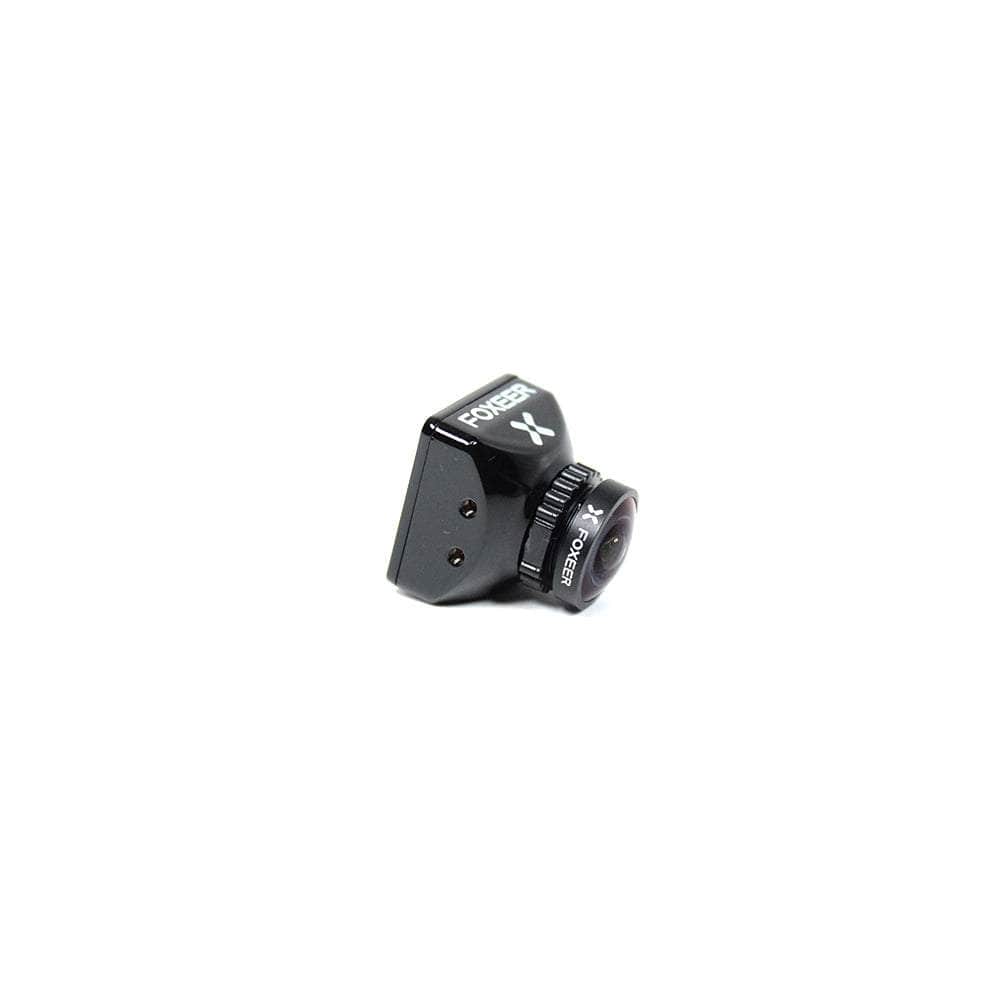

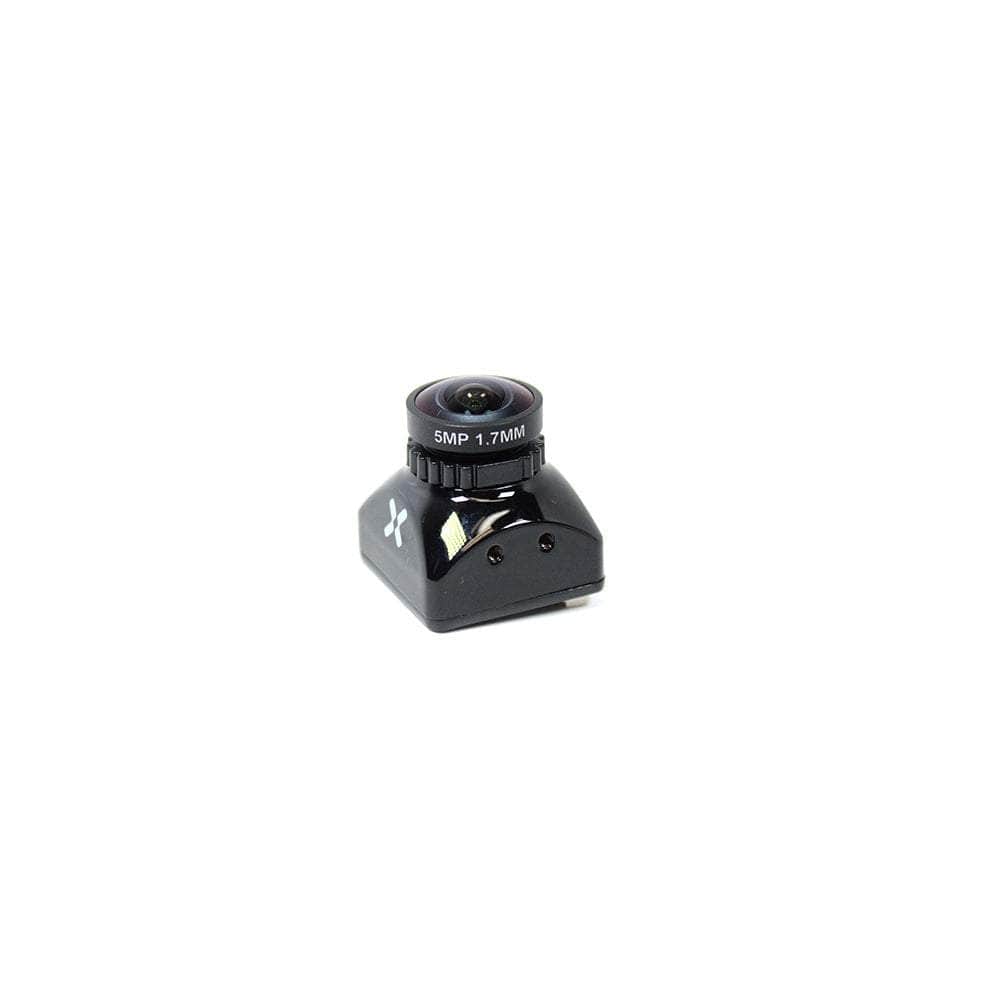

Foxeer T-Rex Mini 1500TVL CMOS 2MP 4:3/16:9 PAL/NTSC Super WDR FPV Camera (1.7mm) - Black

Description

The Foxeer T-Rex Mini 1500TVL CMOS 2MP 4:3/16:9 camera is an exceptional analog camera, offering an outstanding resolution of 1500 TVL and incredibly realistic colors, even in low-light conditions. Thanks to its Super WDR technology, this camera also handles sudden contrast shifts very effectively. Get crisp footage for your FPV with this top-of-the-line camera. 110db WDR, this camera  will perform beyond your imagination under complicated conditions including sunny day, cloudy day, indoor, night with well illumination, even scarcely visible twilight.

Check out our selection of mini FPV camera and our ever growing selection of Foxeer products.

Features

• New Generation FPV Cam
• Resolution Redefined
• Exclusive Optimization for LEDs

Specifications

• Sensor Type: CMOS 2MP
• Scale: 4:3/16:9 Switchable
• Tv System: PAL/NTSC Switchable
• Resolution: 1500TVL

• FOV 4:3: 120° FOV-D:150°
• FOV 16:9: 155° FOV-D:175°
• Shutter Speed: Auto
• Flip: Up, Down, Left and Right

• Video Output: CVBS Analog Signal
• Latency: Low to 2ms
• Minimum Illumination: 0.001Lux
• White Balance: Auto
• DNR: 3DNR
• WDR: 110dB
• DAY/NIGHT: EXT/Auto/Color/B&W
• Flight OSD: Voltage/Cam Title/Time

• Input Voltage: 5V~16V

• Power Consumption: 115mA±15%@DC12V,270mA±15%@DC5V
• Language:  ENGLISH /中文
• Working Temperature:  -10°~50°C RH90% MAX
• Working Humidity:  20~80%
• Storage Temperature: -20°~70°C
• Dimension: 22 x 22mm; 28 x 22mm(with bracket)
• Weight: 10.2g(Exclude cable)


User Manual

Manual

Includes

• 1x Foxeer T-Rex Mini 1500TVL CMOS 2MP 4:3/16:9 PAL/NTSC FPV Super WDR Camera (1.7mm)
• 1x OSD Board
• 1x 2pin OSD Cable
• 12x Screws
• 6x Gasket Ring
• 1x Servo Cable
