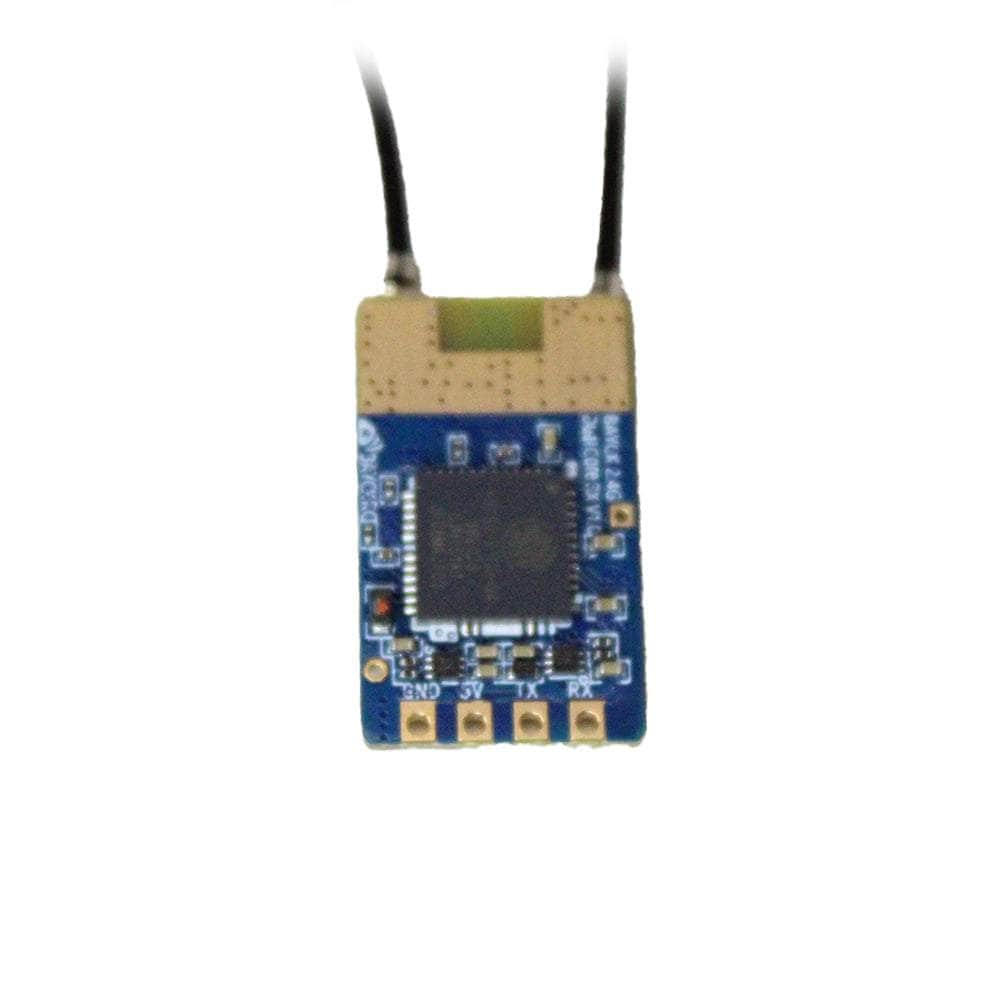

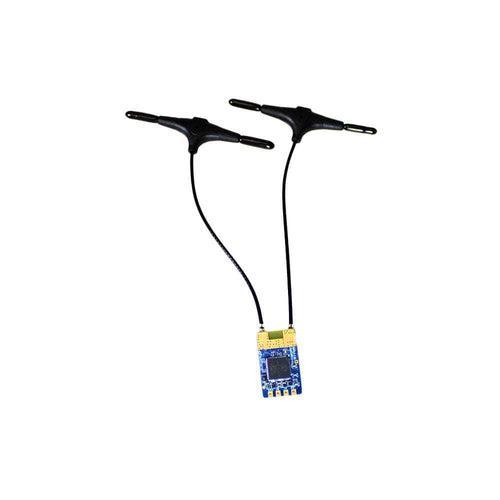

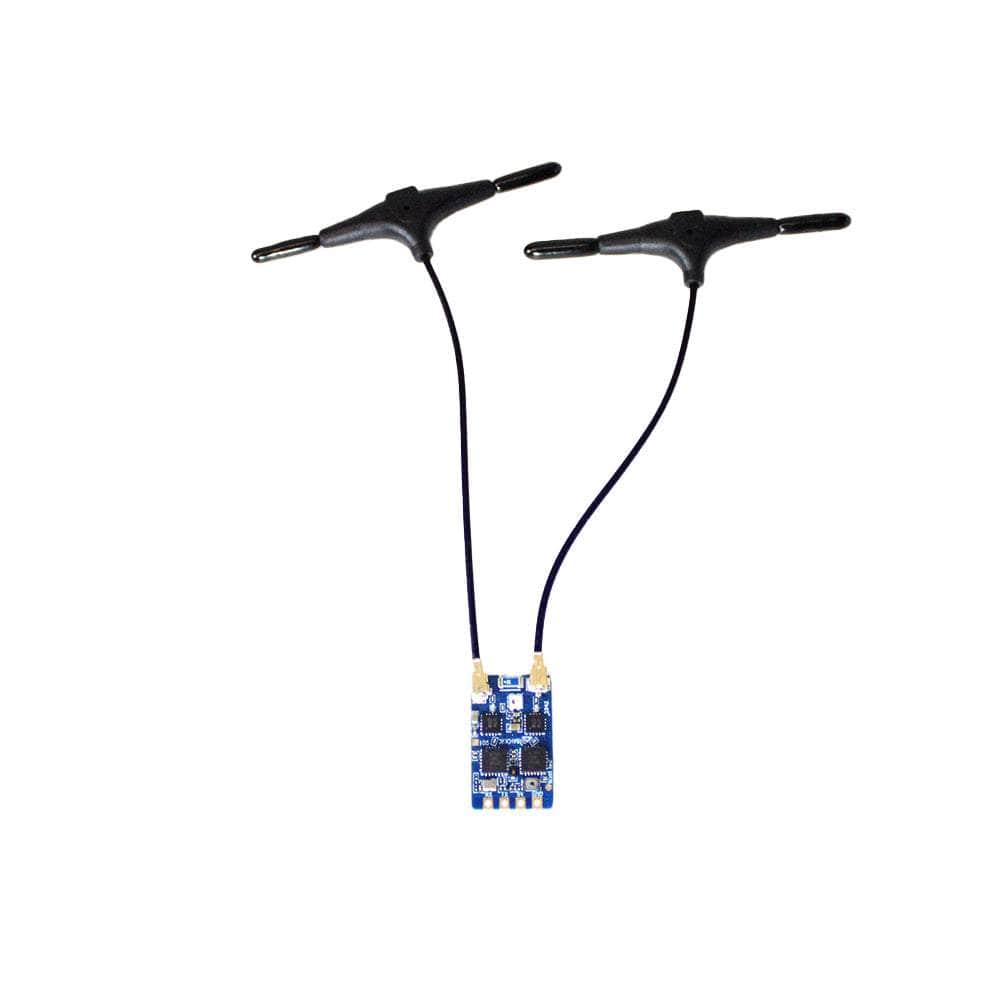

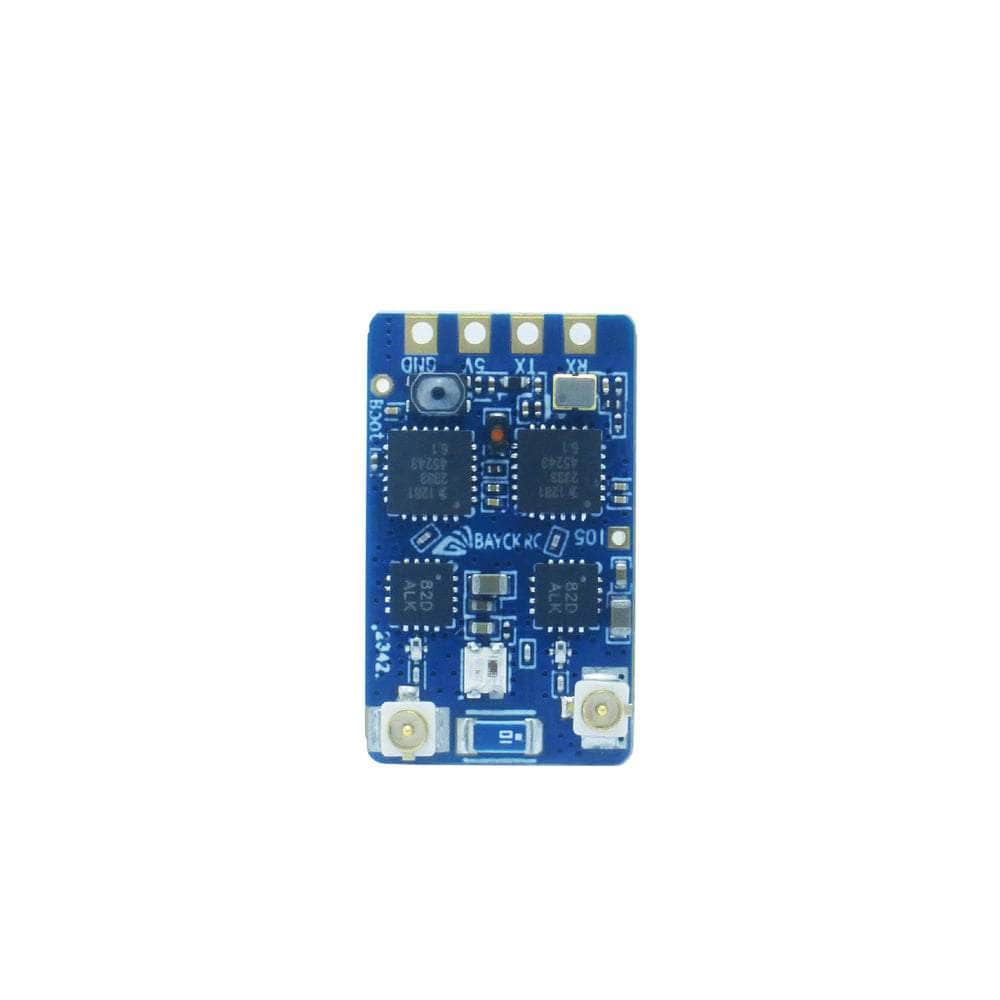

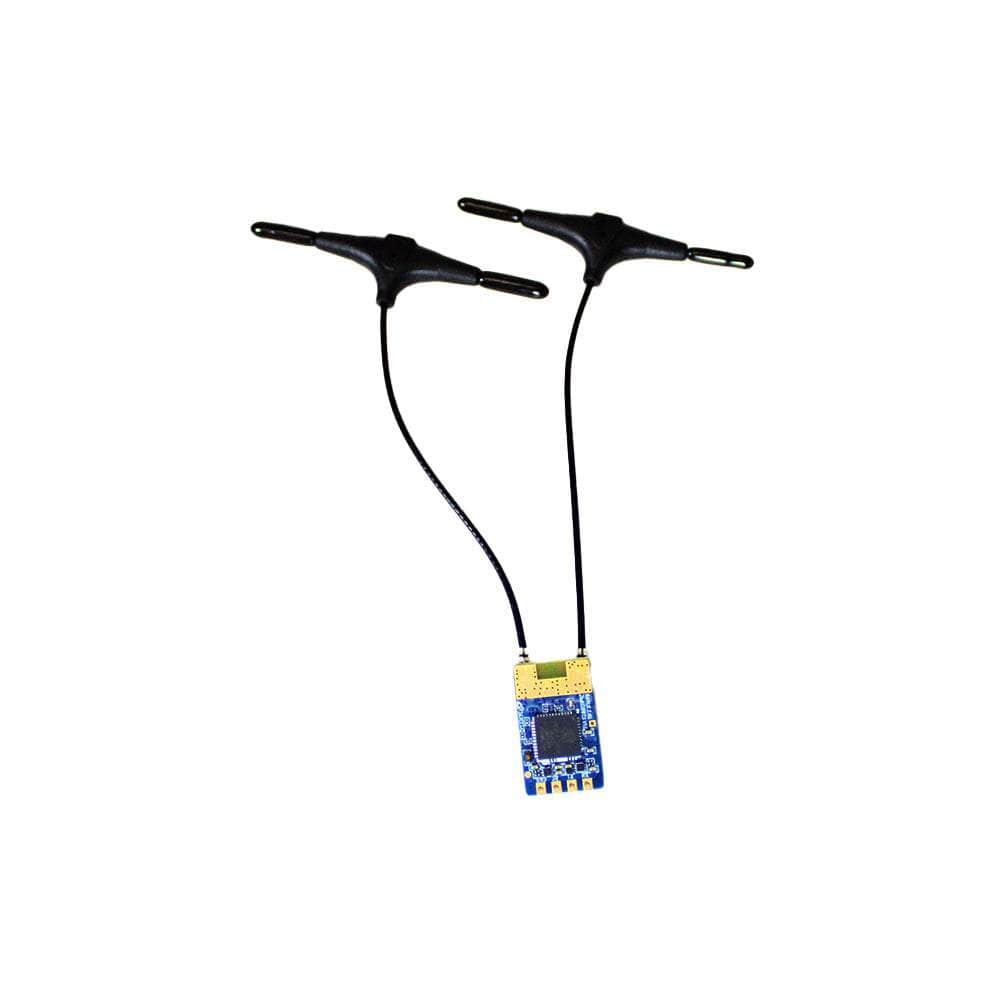

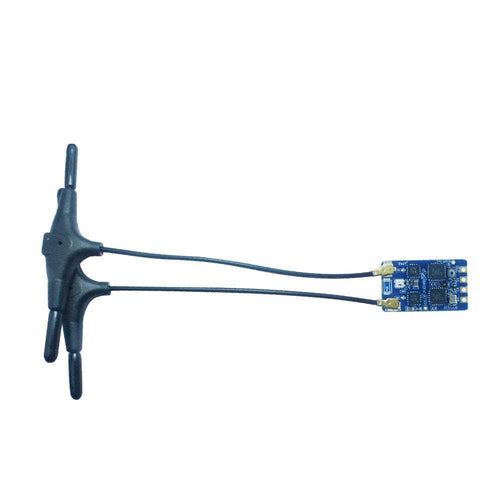

BAYCKRC RC RX BayckRC ELRS 2.4GHz Dual Diversity TCXO Receiver w/ Plug - T Antenna

BayckRC ELRS 2.4GHz Dual Diversity TCXO Receiver w/ Plug - T Antenna

$21.99
$21.99 - $21.99
$21.99 - $21.99
$21.99
In Stock
Add to Wishlist
Ask a Question

Details

Description

Stay connected and in control with the BayckRC ELRS Nano Receiver. Designed with a T Antenna, this 2.4GHz receiver ensures steady and reliable signal transmission for your RC device. Experience seamless control and enjoy uninterrupted connection with this receiver.

Now the new TCXO version receiver applies a “Temperature Compensated Crystal Oscillator”, accurate frequency, and excellent performance in extreme temperature environments, making the TCXO much more reliable.

Check out the rest of our RC receivers and all our RC transmitters, modules, and accessories, as well as all our BayckRC Products!

Features

  • Small size
  • 1.6g weight
  • ELRS open source project, remote control
  • The operation is simple

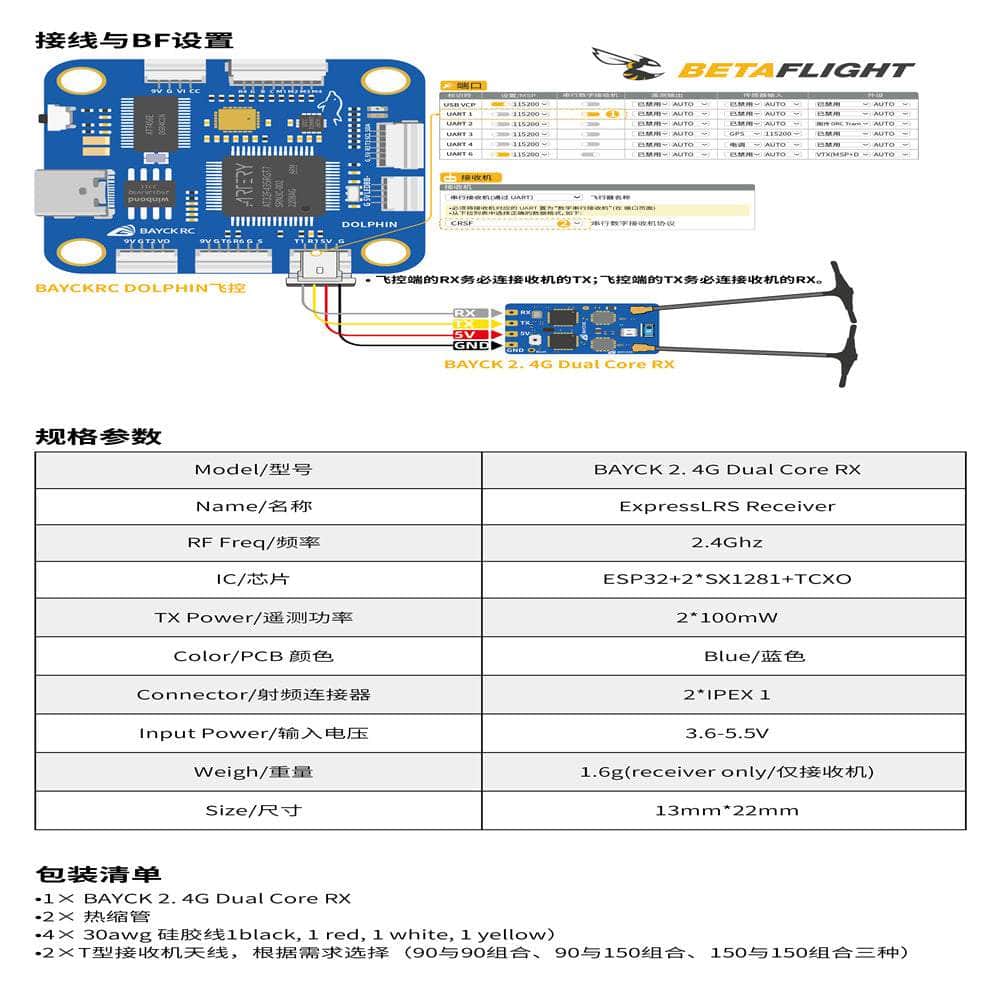

Specifications

  • Name: ExpressLRS Receiver
  • RF: Freq: 2.4Ghz

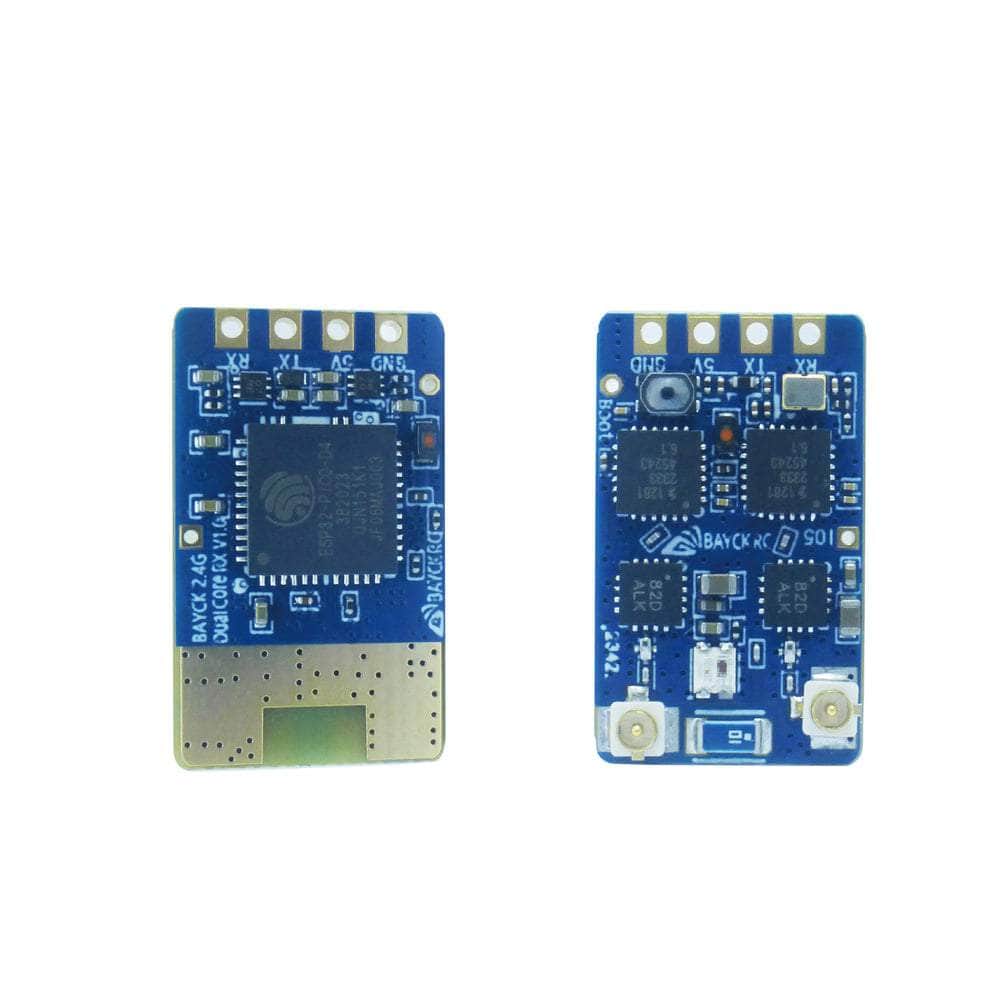

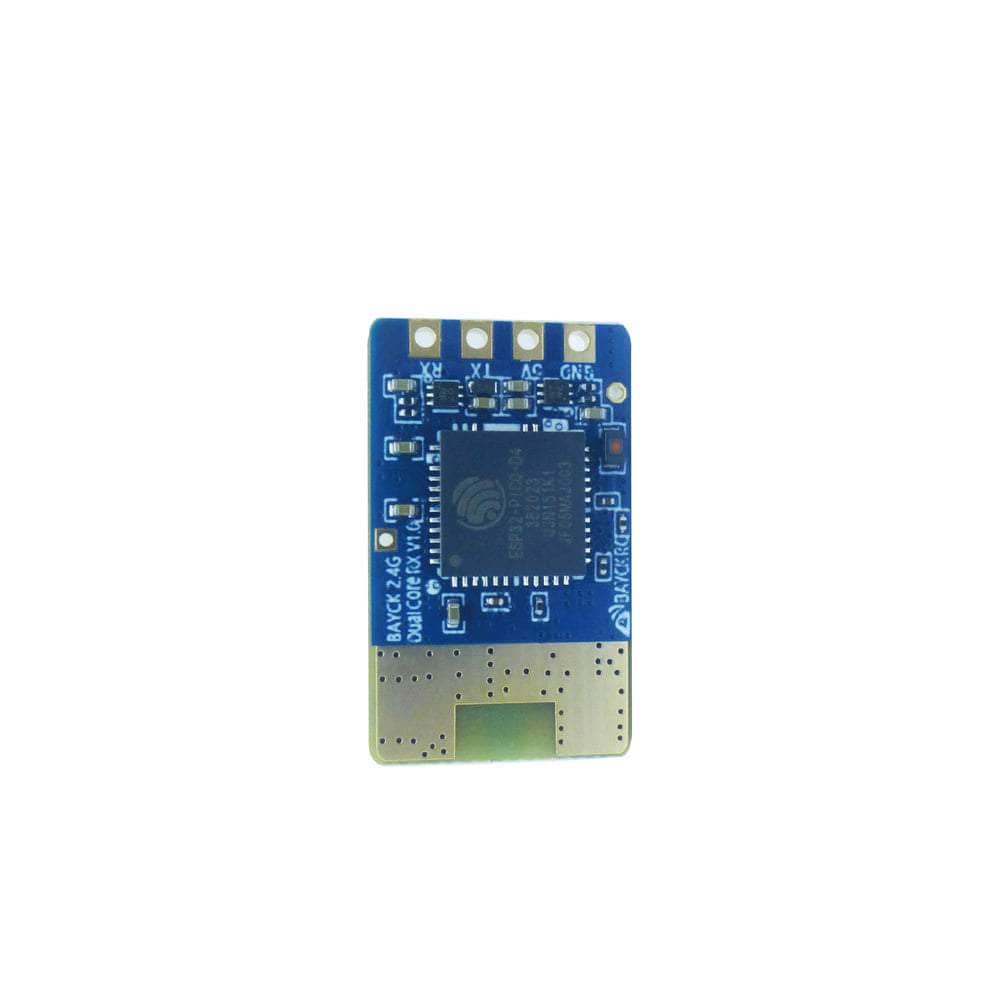

  • IC: ESP32+2 x SX1281+TCXO
  • TX Power: 2x 100mW
  • Color: Blue
  • Weight: 1.6g (receiver only)
  • Size: 13mmx22mm
  • Firmware: BAYCKRC 2.4GHz Dual Core RX
  • Input Power: 3.6-5.5V

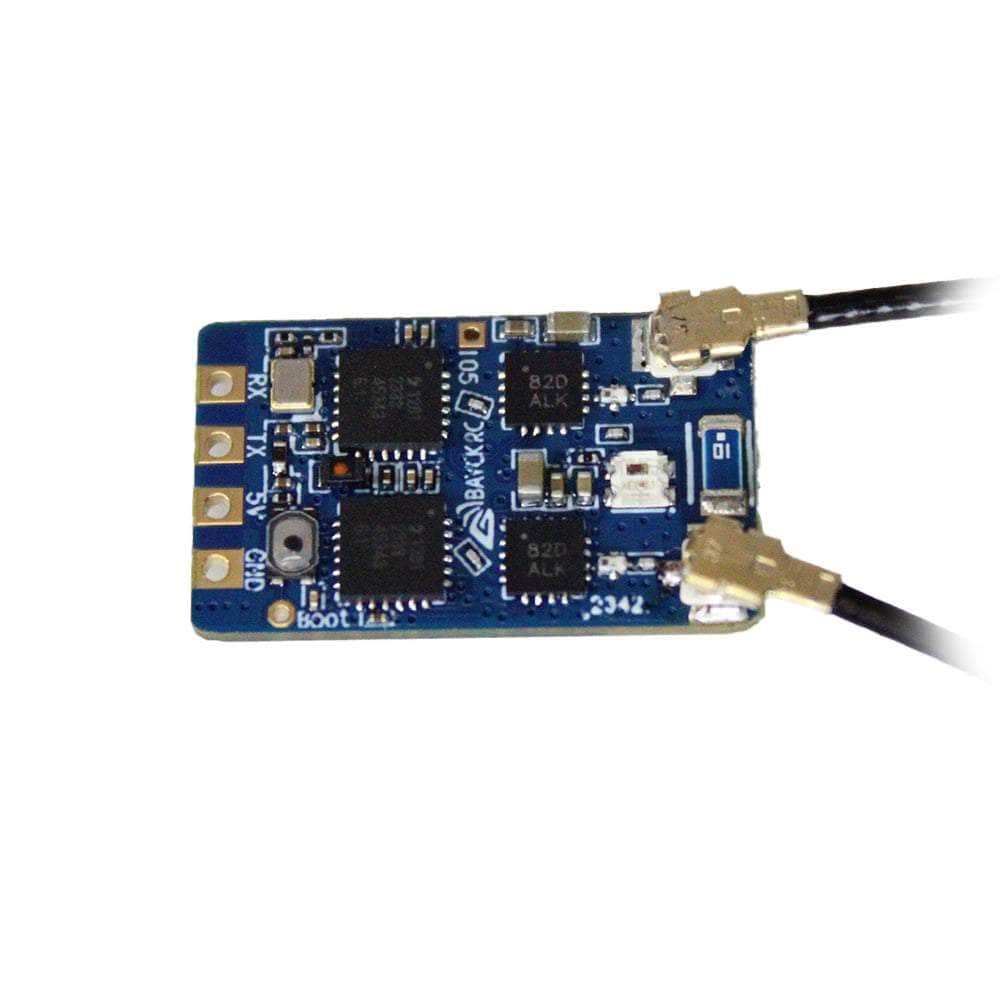

  • Connector: 2x IPEX 1 (U.FL)

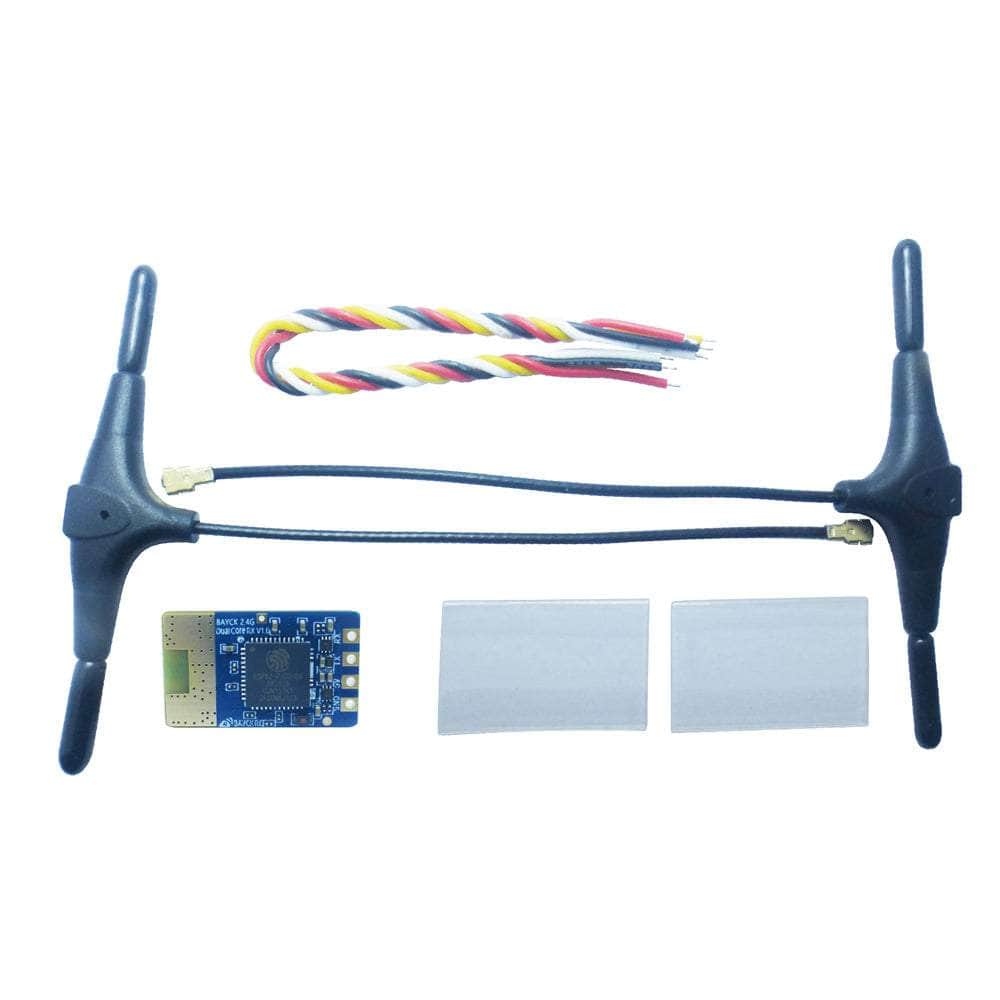

Includes

  • 1x BayckRC ELRS 2.4GHz Dual Diversity TCXO Receiver w/ Plug - T Antenna

More Information:

  • SKU: BKRC-Dual-Receiver-TCXO
  • Barcode: 6910236004359
