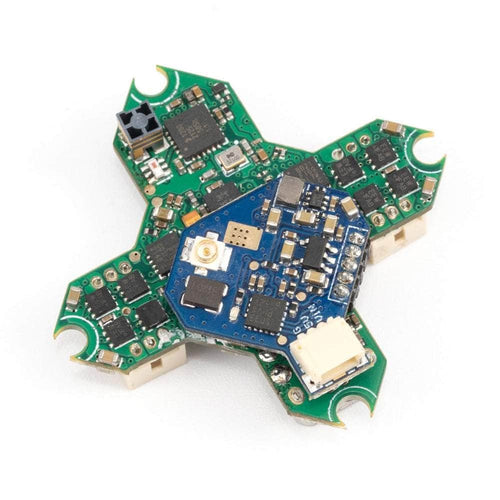

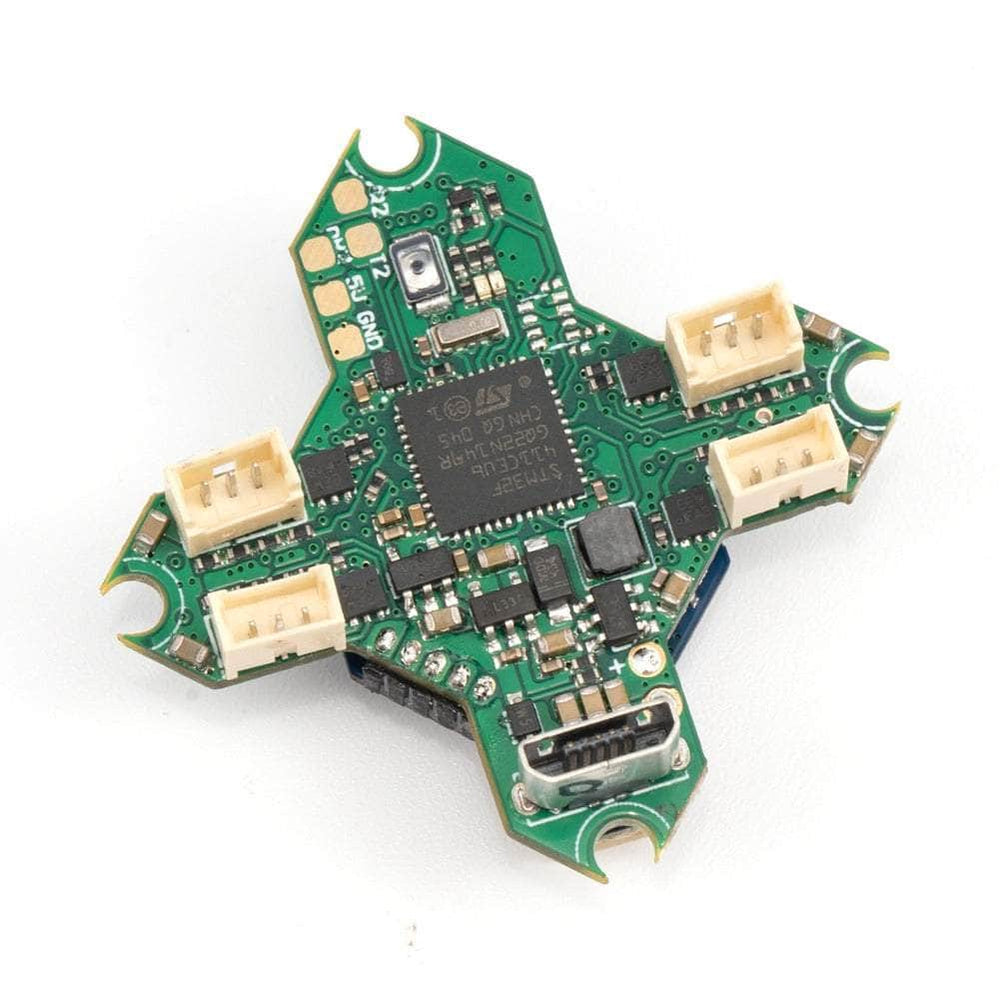

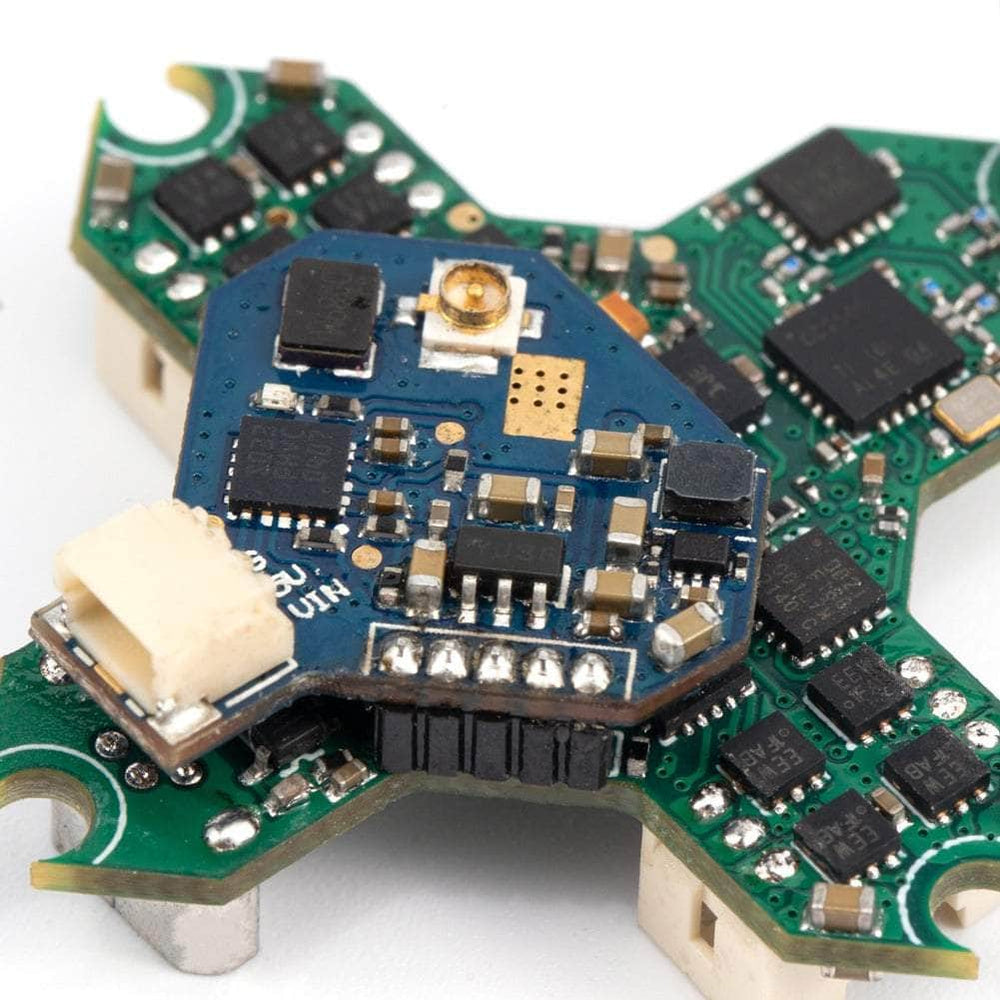

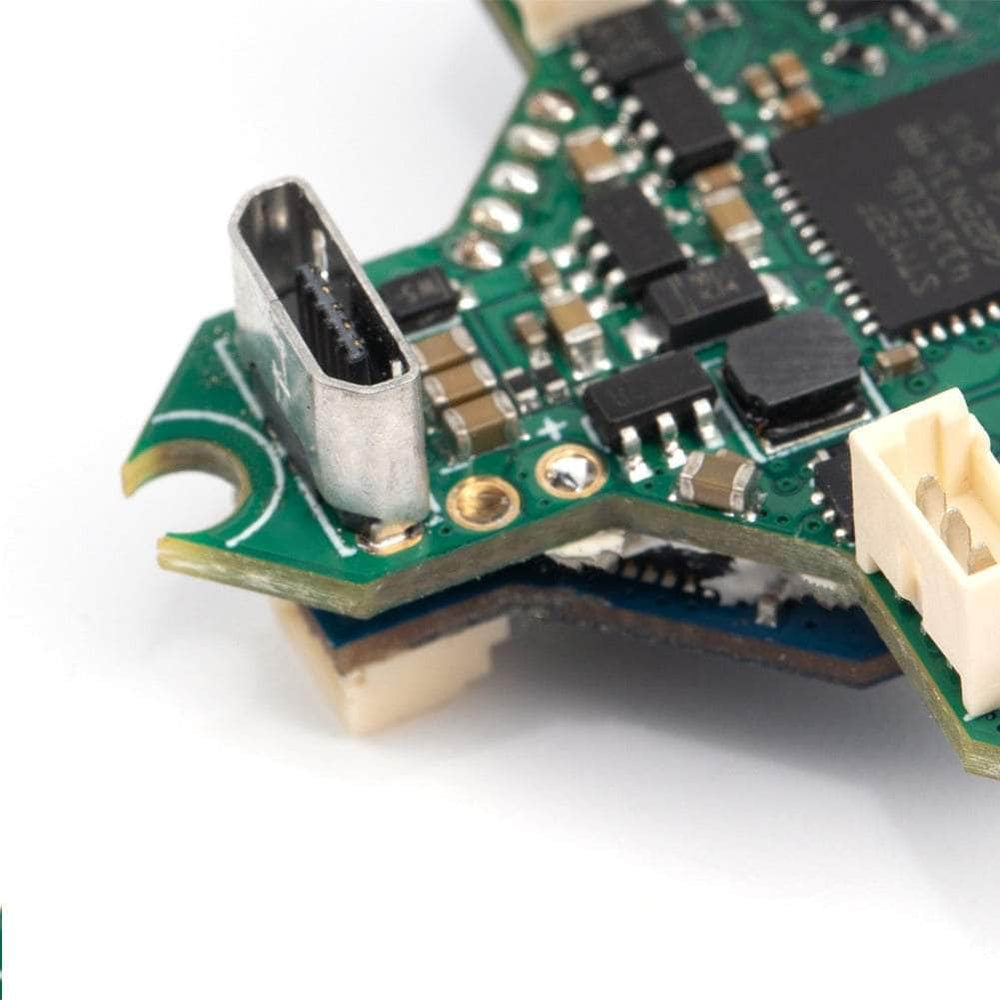

iFlight Blitz F411 1S 5A Toothpick/Whoop Flight Controller w/ 25-50mW VTX & ELRS RX

Description

iFlight Blitz F411 1S 5A Toothpick/Whoop Flight Controller w/ 25-50mW VTX & ELRS RX is perfect for all of your lightweight builds. It is a Flight Controller, ESC, Receiver and VTX all in one little board weighing in at 4.8g. Now using ExpressLRS with a built-in ELRS ceramic antenna!

Check out all our whoop flight controllers, and all our iFlight Products!

Specifications

• Input Voltage:  1S

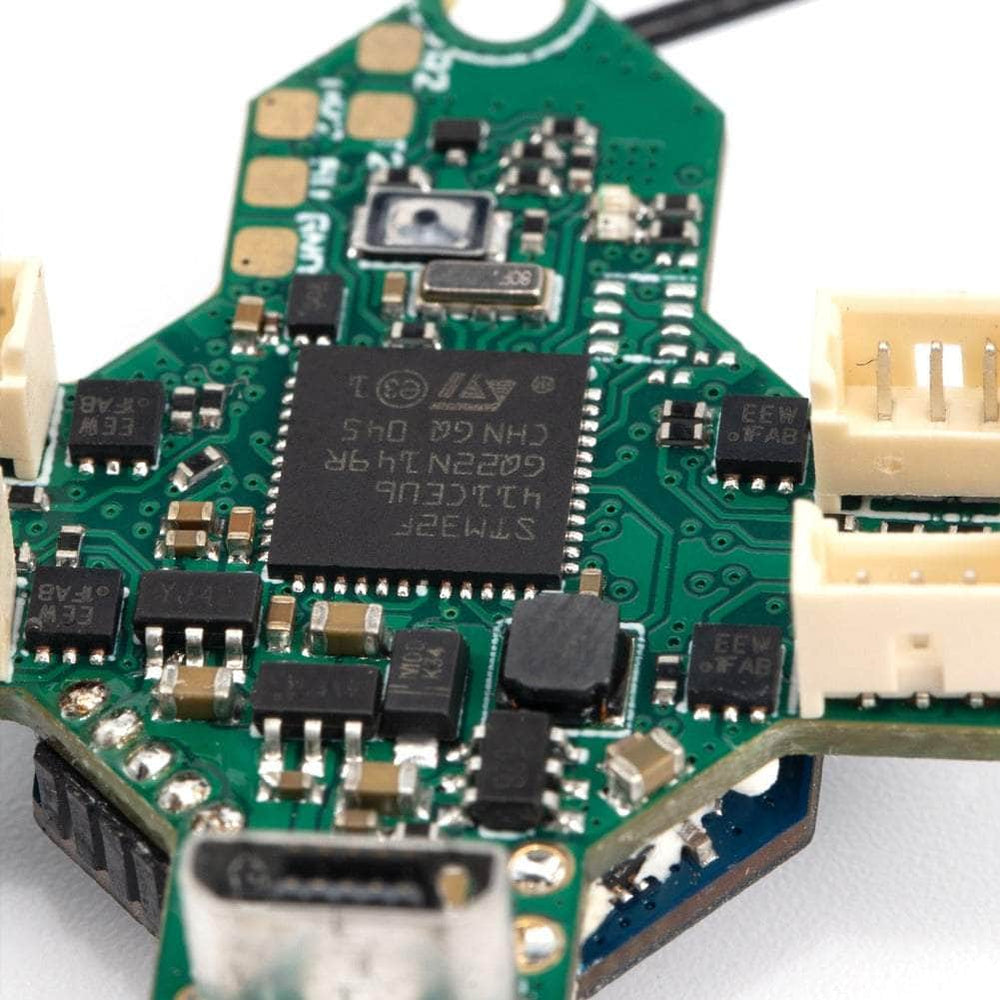

• MCU: STM32F411
• Gyro: BMI270
• Built-in Receiver: SPI ExpressLRS 2.4G

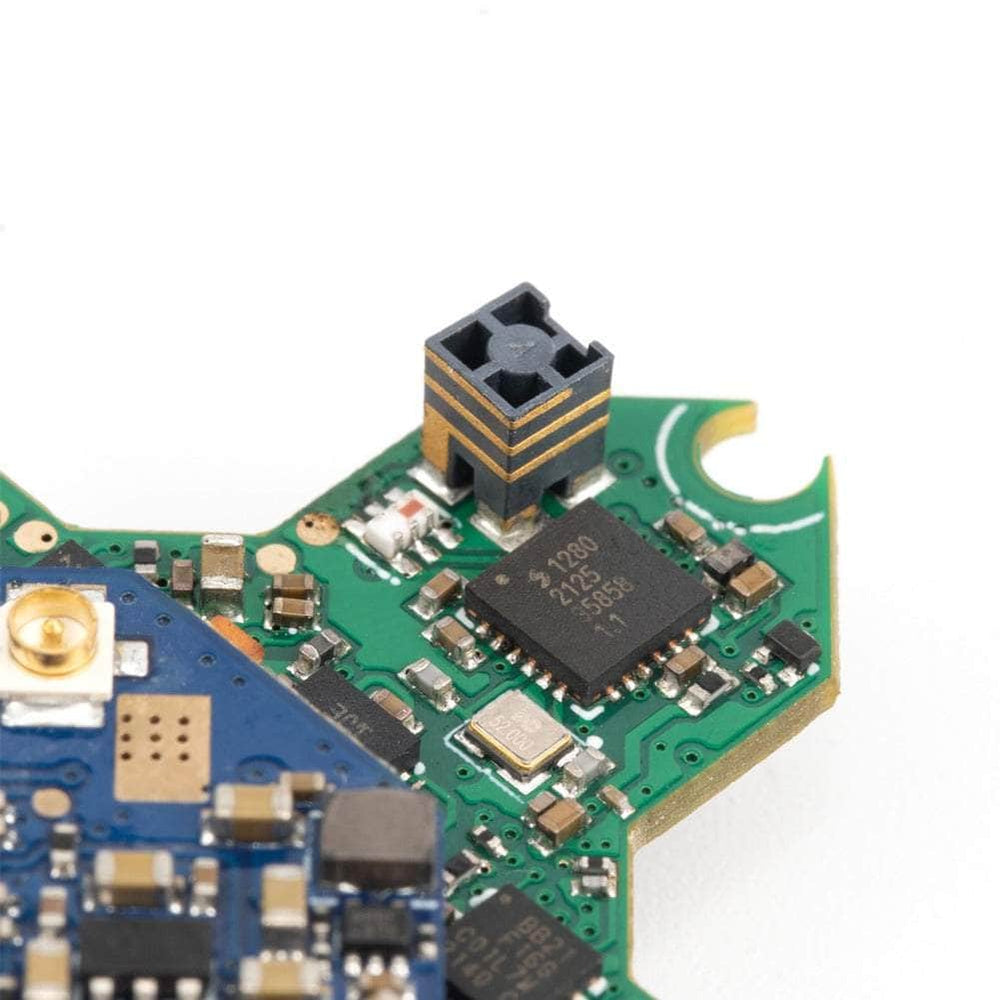

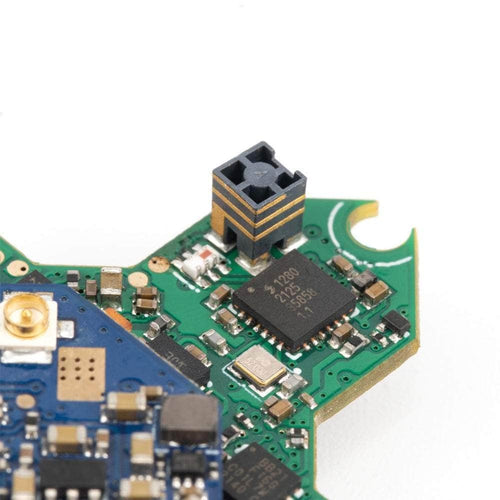

• Receiver antenna: 2.4GHz SMD ceramic antenna
• VTX: PIT/25/50mW
• FC Firmware: IFLIGHT_BLITZ_F411RX

• Current: 5A continuous and peak 6A (3 seconds)

• Signal Support: Dshot, Oneshot, Multishot
• ESC Firmware: O-H-30 BLS 16.8 (Supports BLHeliSuite)

• Dimensions: 29x29mm, compatible w/ standard whoop framest

• Weight: 4.8g

Includes

• iFlight Blitz F411 1S 5A Whoop Flight Controller w/ 25-50mW VTX & ELRS RX
• 4x M2 Rubber Damper
• 1x Whip antenna

Wiring Diagram
