Description
TBS is once again pushing the limits of long-range flying with the NDAA Version of the TBS Crossfire Diversity Nano RX. Building on the power of the most robust Crossfire receiver, this tiny powerhouse is the smallest full-fledged diversity receiver available, offering unbeatable performance across any frequency. It features a power-redundancy circuit (battery not included), ensuring reliable operation even in the most demanding conditions. Experience long-range flight like never before with the TBS Crossfire Diversity Nano RX. NDAA-Compliant for added security and compatibility.
Check out everything NDAA Compliant and all of our RC Receivers!
Features
- Power-Redundancy Circuit
- Powerful Performance
- Long-Range Flight
- NDAA Compliant
- Compact Design
TRUE DIVERSITY, FULL RANGE
The TBS CROSSFIRE Diversity Nano Receiver is a compact R/C receiver with 8-channel outputs (PPM, SBUS, and CRSF capable), featuring best-in-industry noise rejection and record-breaking range capability. It is the only receiver to provide a true dual-input stage, chip-based diversity, along with the usual filtering and noise rejection from onboard video systems.
BEACON MODE
Ever lost a plane and spent hours looking for it? Enter the TBS CROSSFIRE beacon mode. The Diversity Nano receiver comes with a LiPo battery port where you can connect an optional backup battery. It will keep the receiver running for a full day after all onboard electronics are gone. It will be “screaming” for help by sending you its GPS coordinates, while also broadcasting RF beacon signals that will allow you to pinpoint its location — even if no GPS was ever on your airplane.
FLARM IS HERE
FLARM is a traffic awareness and collision avoidance technology for general aviation, light aircraft, and UAVs. The TBS Crossfire Diversity Nano RX will be able to broadcast on the FLARM network for free. However, receiving drone and general aviation traffic information on your OSD requires additional licenses. When paired with the CORE PRO or FPVision and TBS GPS, you can access a virtual radar that shows other FLARM devices within a range of approximately 3km. This enables safe navigation in crowded airspace or during intense proximity formation flights with your buddies! Full-scale aviation will be alerted if your drone is on a collision course with them, and vice versa.
Specifications
- Weight: 1.8g (receiver only)
- Input Power: +3.3V to 8.4V
- Requires: Firmware V2.87
- NDAA Compliant: Yes
- Size: 24mm x 18mm
Links

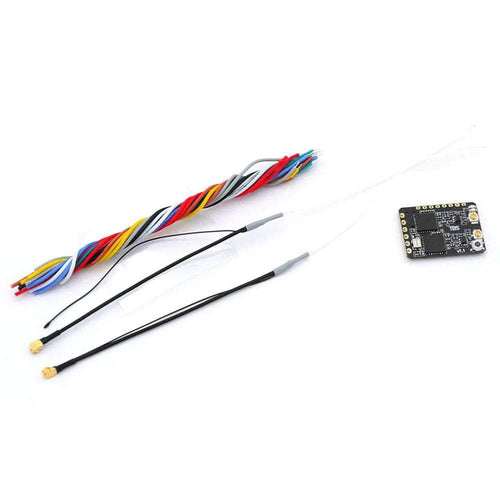

Includes
- 1x TBS Crossfire Diversity Nano Receiver - NDAA
- 2x TBS Crossfire Micro Receiver Antenna
- 14x 30awg silicon connection wires
- 1x Spare shrink tube
More Information:
- SKU: 23165
- Barcode: 723326371622
