iFlight BNF BOB57 6S 6" HD Cinematic Long Range Quad w/DJI O3 Air Unit & Micro Cam - PNP (GPS)

iFlight BNF BOB57 6S 6" HD Cinematic Long Range Quad w/DJI O3 Air Unit & Micro Cam - PNP (GPS)

$699.99
$699.99 - $699.99
$699.99 - $699.99
$699.99
In Stock
Add to Wishlist
Ask a Question

Details

Description

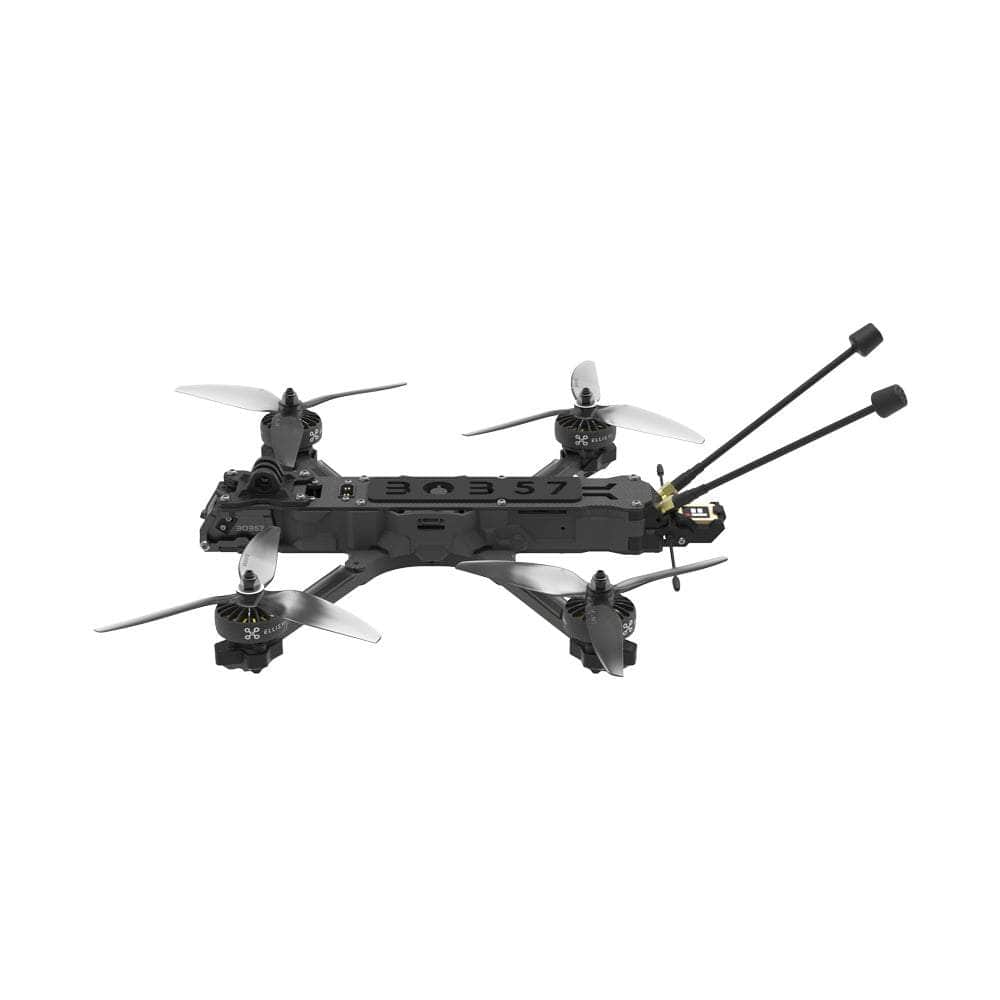

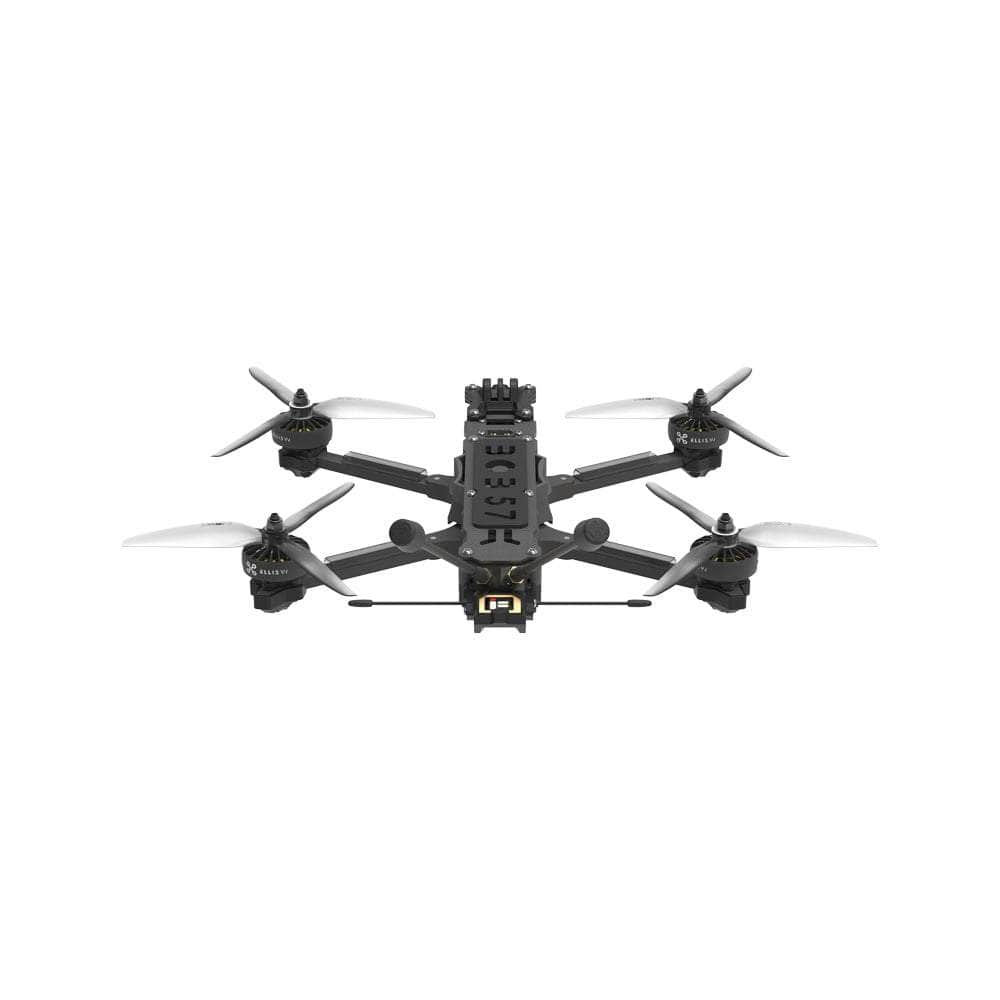

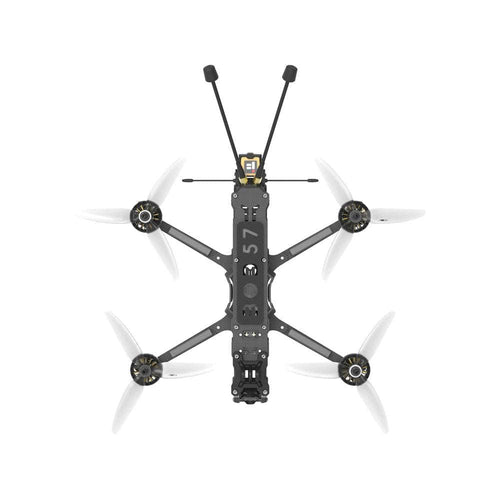

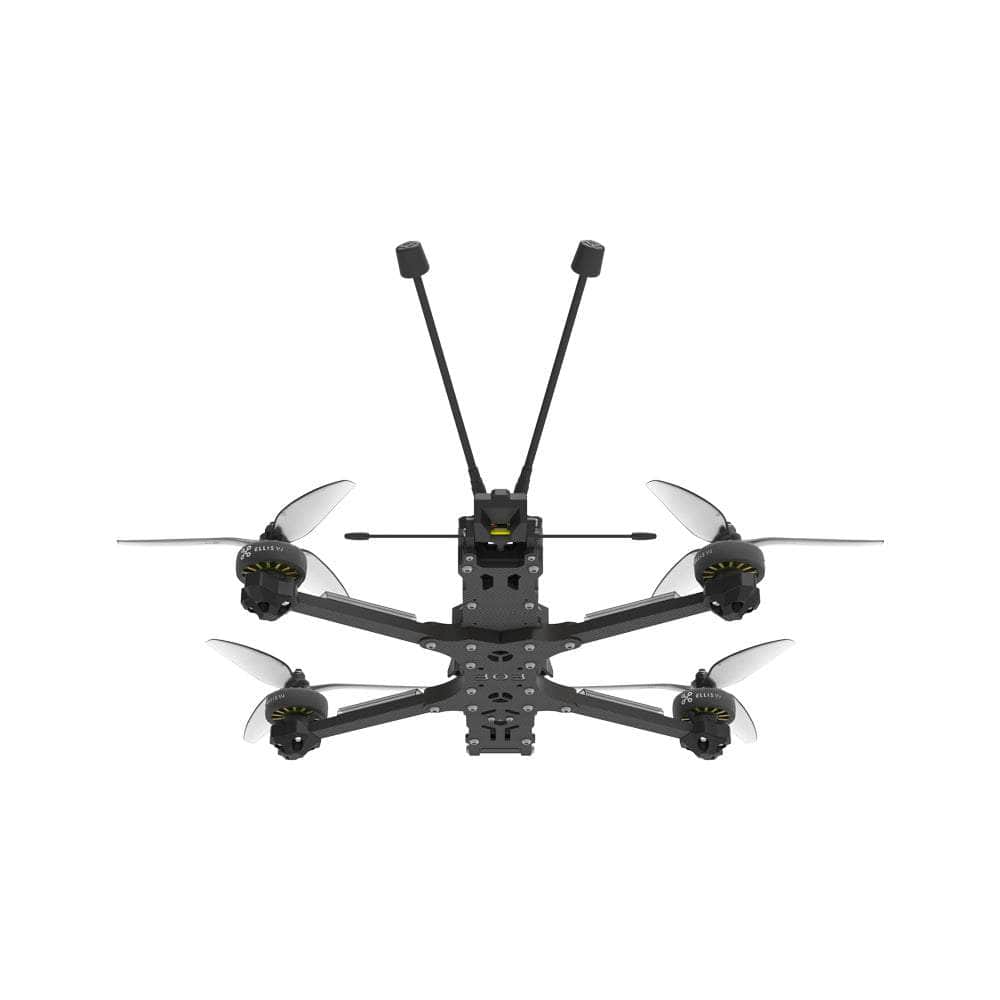

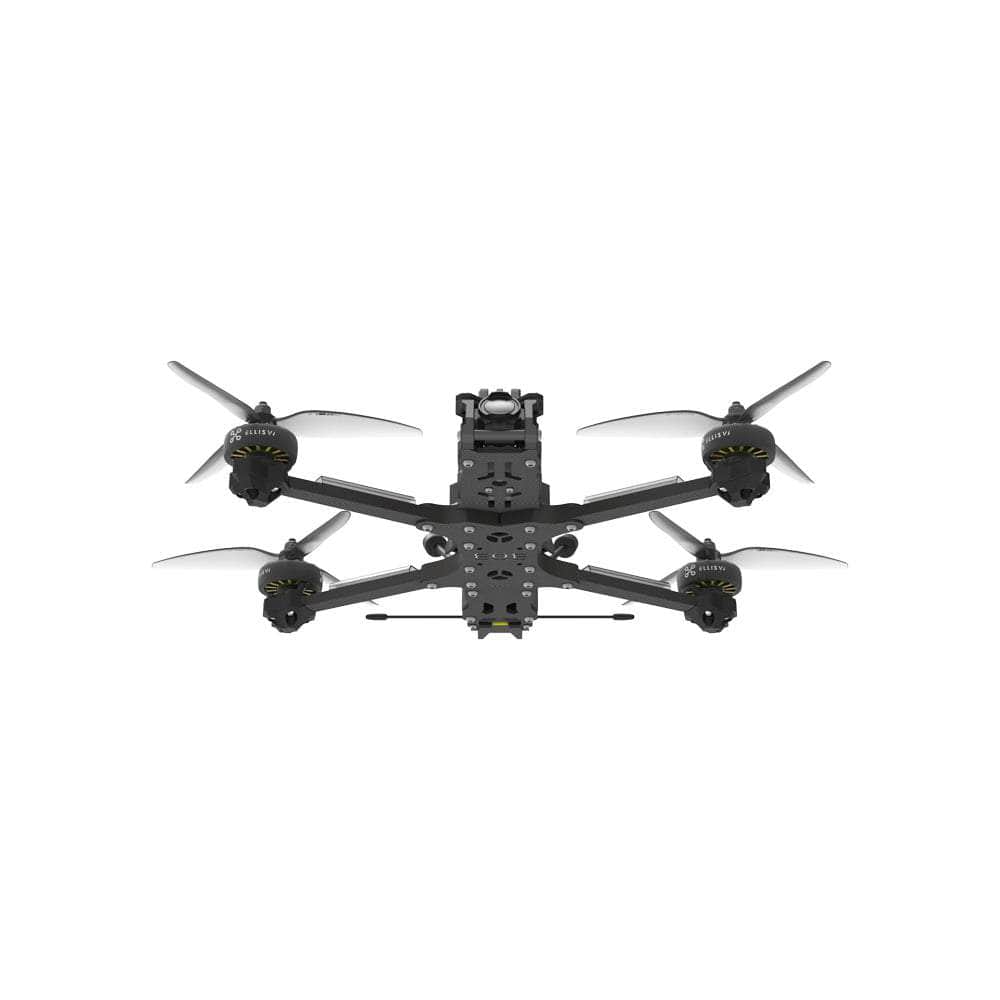

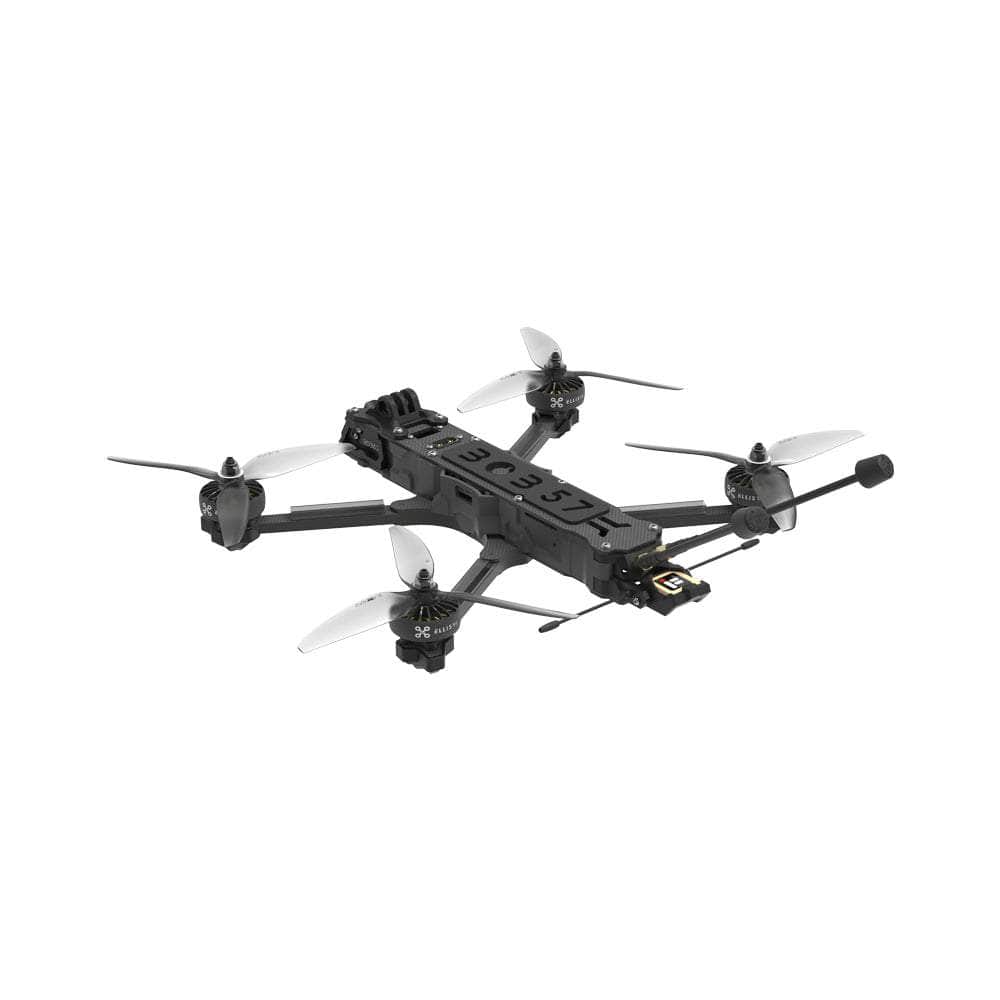

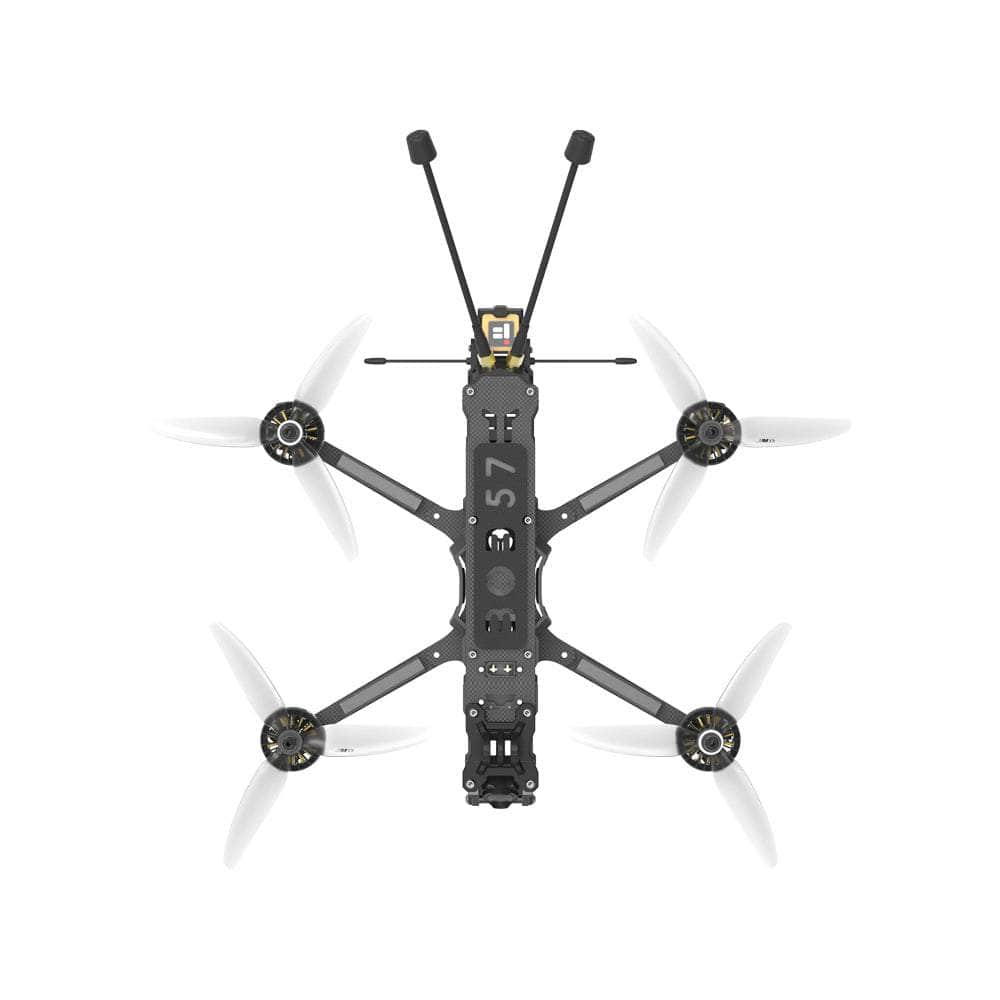

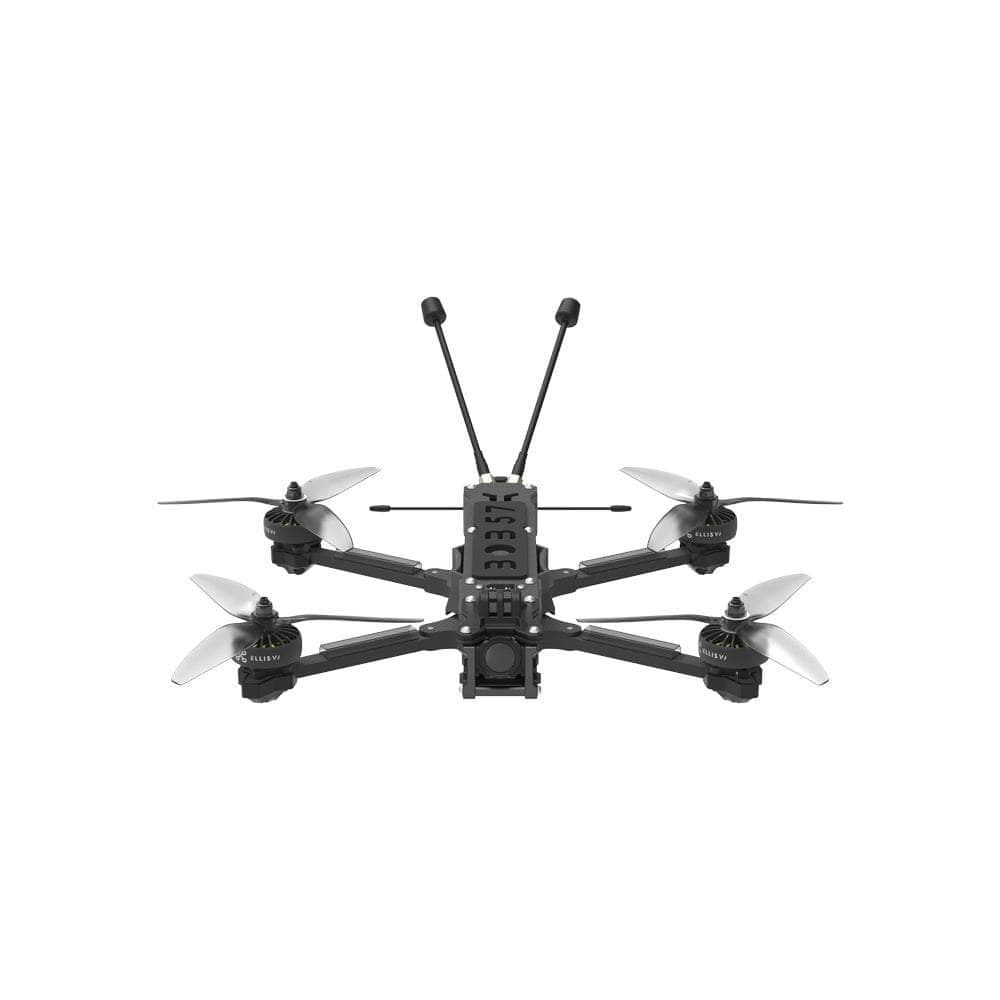

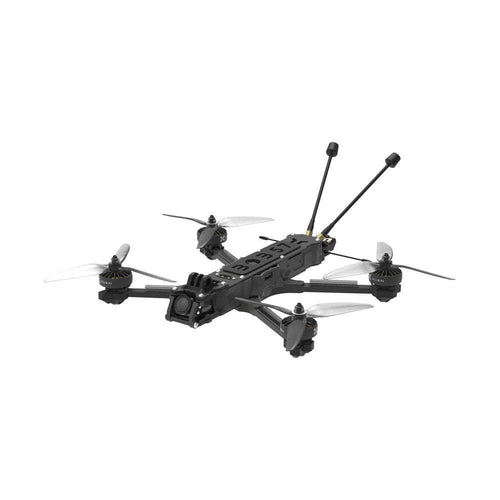

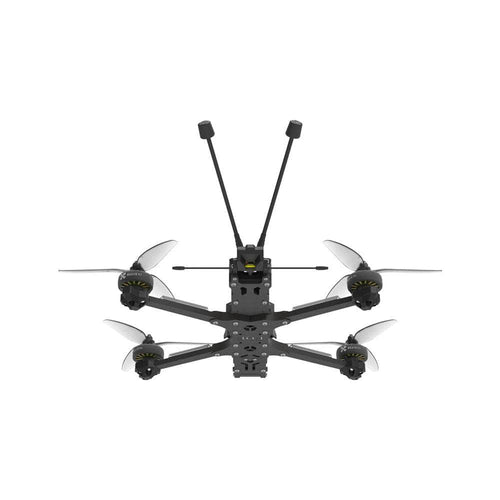

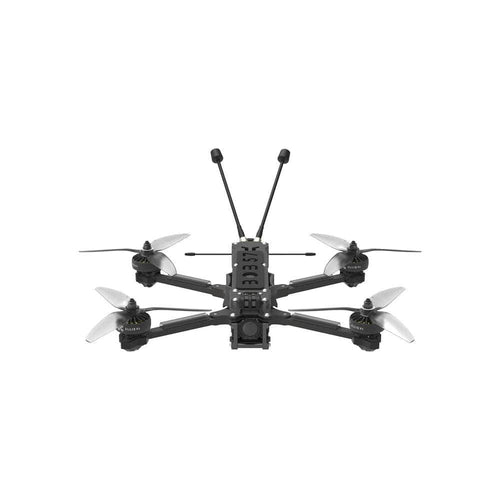

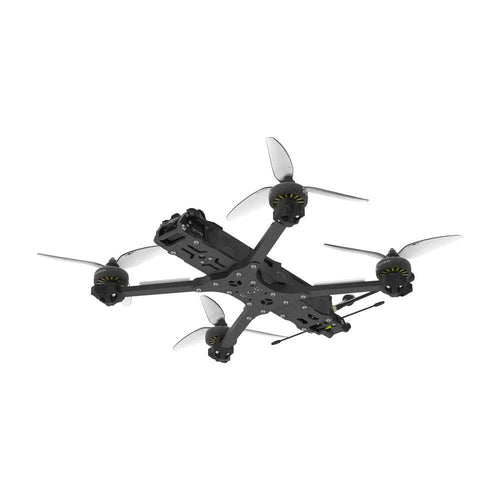

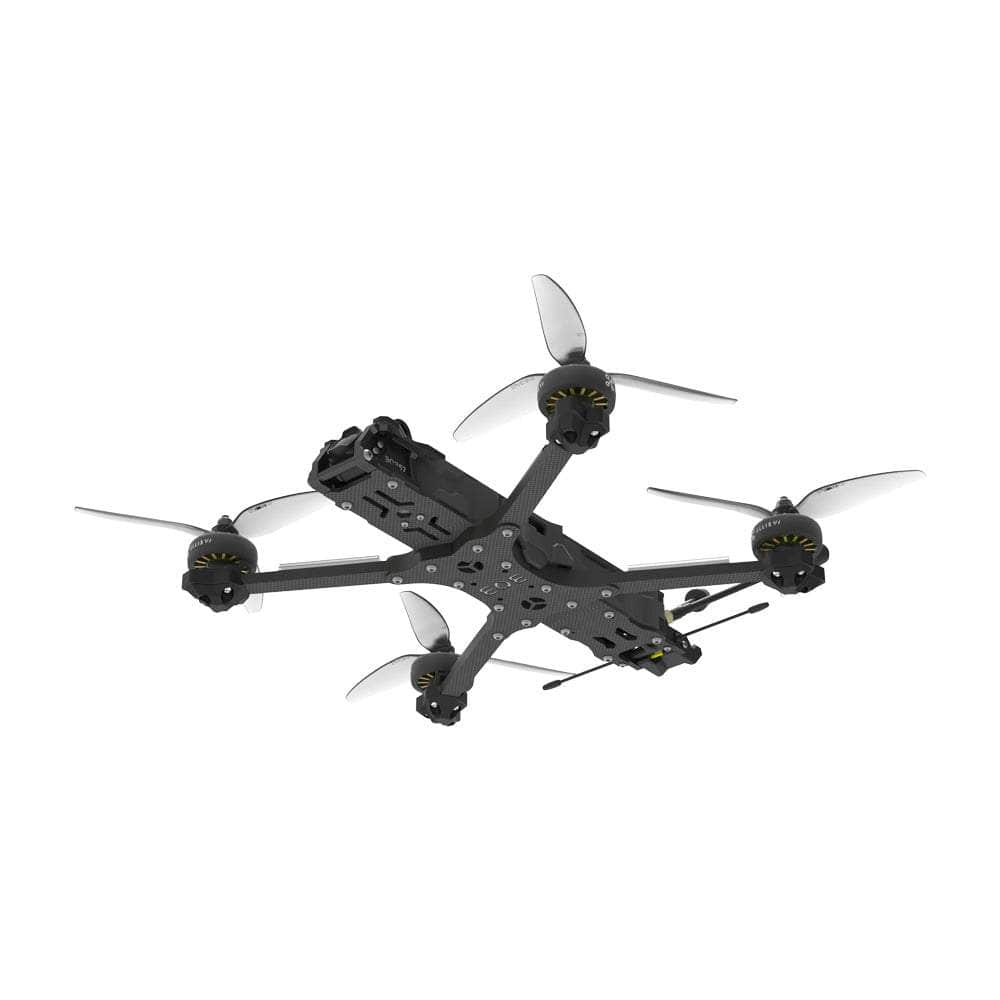

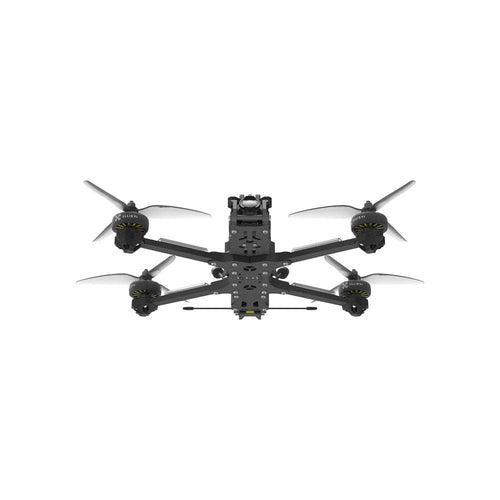

Introducing the BOB57, a 6" cinematic long-range quad pre-installed with the all-powerful DJI O3 system for crystal clear image quality. This quad aims to best of 5" and 7", hence the name BOB57. This quad is DJI PNP, meaning it does not come with a receiver, meaning you need to install your receiver.  However, if you have the DJI FPV Remote Controller 2, you can bind to the O3 Air Unit. This quad also comes with a GPS pre-installed, allowing all the marvelous features a GPS allows you. The BOB57 comes with XING2 2506 motors with a rated KV 1500, designed around 6S power.

The iFlight BOB57 is a long-range HD drone that was designed in collaboration with pilot & videographer Ellis van Jason. The team crafted this cinematic 6-inch drone that ensures agility and flight time while combining the advantages of both 5-inch and 7-inch drones for both cinematic and freestyle flights.

Be sure to check out our Bind-n-Fly collection as well as all of our iFlight Products

Features

  • Hybrid motor design optimized for  that can be used with both bi-blade and tri-blade 6" propellers.
  • High-end GPS is used to minimize the risk of failure during proximity flights
  • Long backbone with enough space up to fit 3000mAh 6S batteries
  • Solid antenna mount for less oscillations when using long antennas
  • Gladiator shell protects from dust and water droplets
  • ESCs with built-in spike absorbers for more reliability
  • Built-in BEC to directly power a GoPro camera
  • 9-minute flight time with 3000mAh 6S Lipo
  • Front-mounting XT-60
  • DJI O3 Air Unit

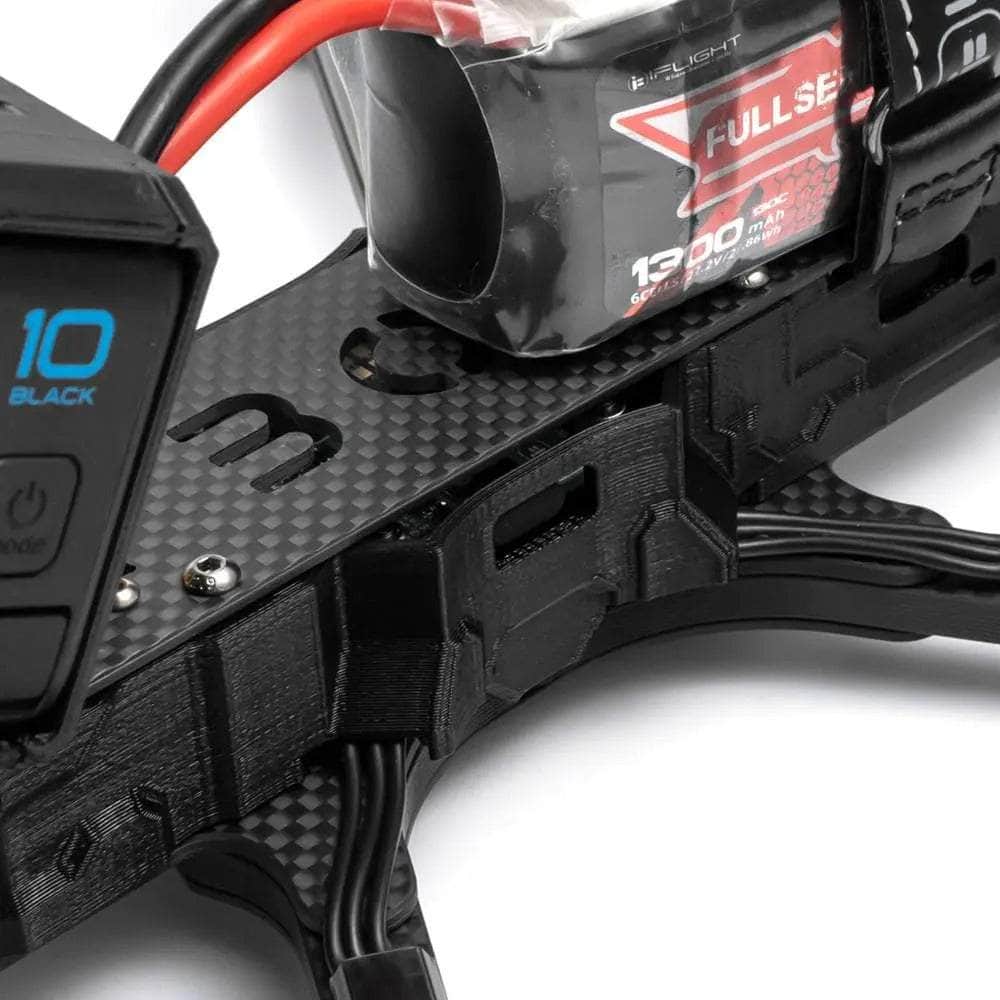

VERSATILE BODY

The Body is designed to carry small to large batteries for agile or long-range missions.

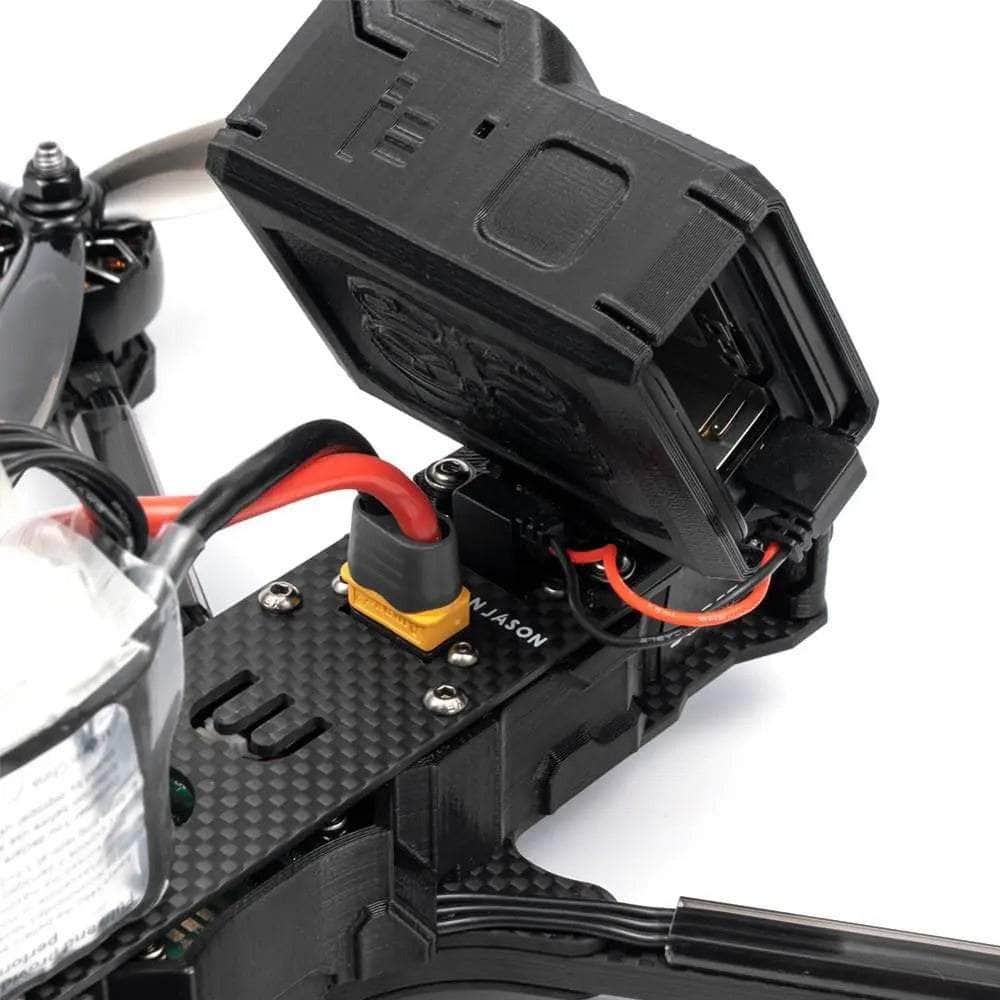

SMART XT60 AND USB-C PLUG

The XT60 plug is located in the front to gain more space. With the USB-C plug you can directly power your GoPro/Action Cams.

OPTIMIZED MOTOR AND PROPS

The Motor is designed for 6inch to give both great performance and efficiency. The prop is specifically optimized for this drone.

RELIABILITY

The BOB57 comes with a shell that protects against hits, droplets, and dust. It also has a high-quality GPS and components for more reliability, like a spike absorber & extra capacitor.

PRE-TUNED AND PRE-SETUP

  • Don't worry about tuning, iFlight did that for you already! A basic PID and Filter tuning were applied for a great flight experience!

Links

Specifications

  • Product Name: BOB57 O3 6S HD BNF
  • FC: BLITZ F722
  • ESC: BLITZ E55 55A 4-IN-1 ESC
  • Video Transmission: DJI O3 Air Unit
  • Frame: 280mm wheelbase
  • Motor: XING2 2506 motors
  • Prop: GEMFAN 6032-3 propellers
  • Takeoff Weight: Approx. 580 g
  • Dimensions (L×W×H)：226×166×34 mm
  • Max Speed: 180 Km/h (Manual Mode)
  • Maximum Takeoff Altitude: 7000 m
  • Max Hover Time: Approx. 8 mins (With 6S 1400 no load.)
  • Max Wind Speed Resistance: Level 7
  • Operating Temperature Range: -10° to 40° C (14° to 104° F)
  • Antennas: 2 Antenna
  • GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission

  • Product Name: DJI O3 Air Unit
  • Weight: Approx. 36.4 grams（headband included）
  • Dimensions (L×W×H): L32.5x W30.5xH 14.5mm
  • Communication Bandwidth： Max 40 MHz
  • FOV (single screen): 155°
  • Communication Frequency: 2.400-2.4835 GHz；5.725-5.850 GHz
  • End-to-End Latency
  • With DJI FPV Goggles V2:
  • 810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
  • 810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
  • With DJI Goggles 2:
  • 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
  • 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
  • Max Video Transmission Bitrate: 50 Mbps
  • Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)
  • Operating Temperature Range: -10º to 40º C (14° to 104° F)
  • Power Input: 7.4-26.4 V
  • Audio Transmission: N/A

 Includes

  • 1x BOB57 6S HD BNF
  • 2x Antennas
  • 2x Battery pads
  • 2x Prop(Pairs)

More Information:

  • SKU: 19905
  • Barcode: 691023517585
