GEPRC BNF Mark5 HD 6S 5" Quad w/ Caddx Air Unit Micro - Choose Version

Description

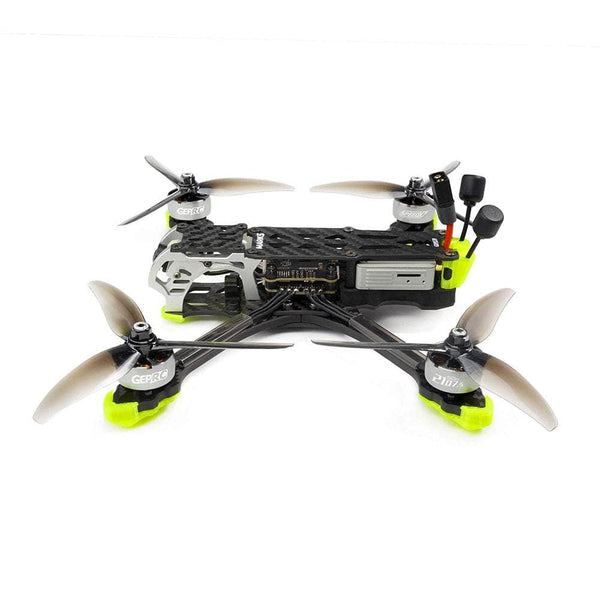

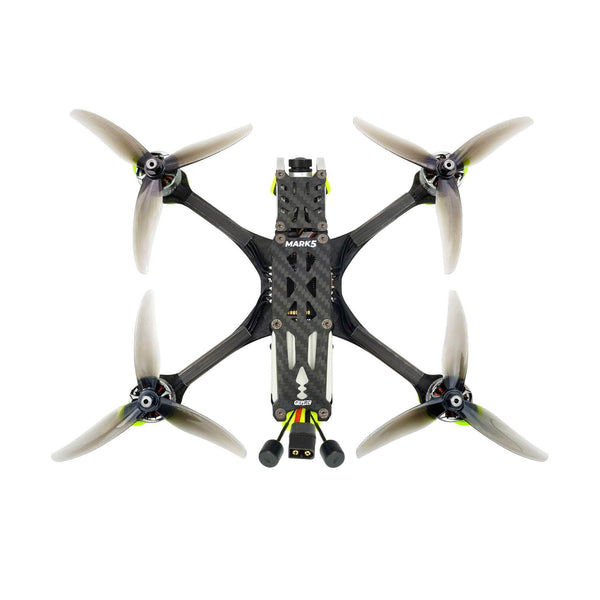

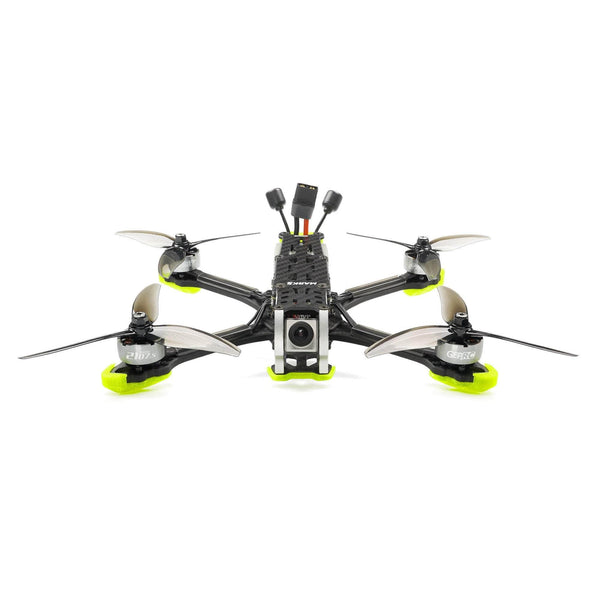

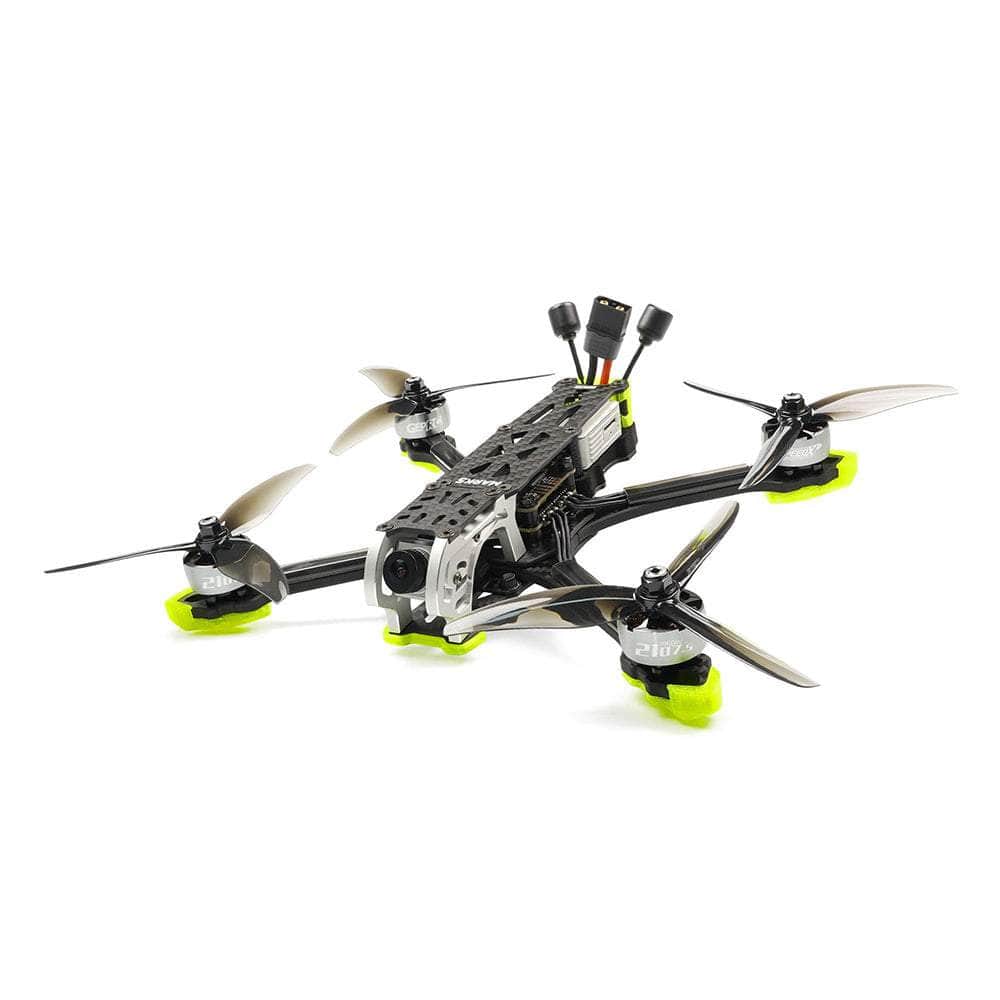

The GEPRC BNF Mark5 HD Quad w/ Caddx Air Unit Micro is developed specifically for freestyle with squashed X arm design. Unique shock absorbing structure design, less vibrations and resonance, to provide a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning, but also reduce weight and add more endurance.

Make sure to check the ELRS Version!

Gopro case available separately.

Check out all our pre-built quads, and all our GEPRC selection!

Specifications

• Input Voltage: 6S
• Wheelbase: 225mm
• Top plate: 2.5mm
• Bottom plate: 2.5mm
• Arm: 5mm
• Charge connector: XT60
• Motor: 2107.5 1960Kv
• Weight: 385.5g

SPAN F722-HD-BT FC

• MCU: STM32F722
• IMU: MPU6000(SPI)
• OSD: BetaFlight OSD w/AT7456E chip
• Blackbox: 16Mb Flash
• BEC: 5V, 9V

• LC Filter: Yes

G50A ESC

• MCU: STM32F051K86
• Max Continuous Current: 50A
• Max Burst Current: 55A
• BEC: No
• Current Sensor: Yes

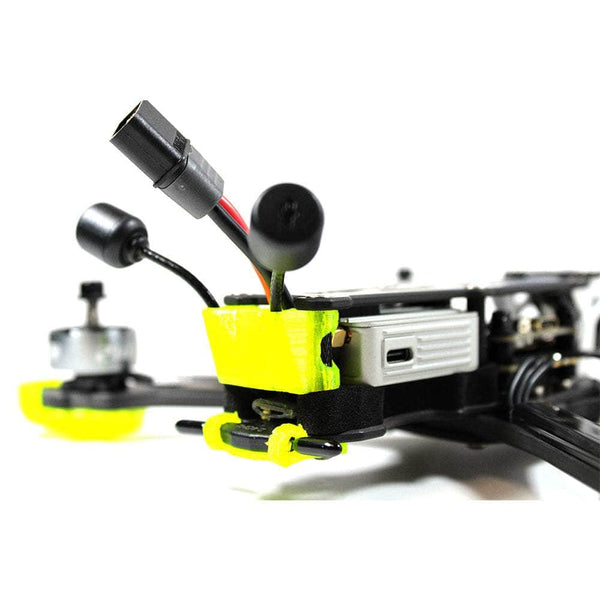

Caddx Air Unit

• Operating Temperature: 32 to 104 F (0 to 40 C)Input Power: 7.4-17.6V
• Transmitter Power: FCC/SRRC: <30dBm CE: <14dBm
• I/O Interface: USB-C, MMCX, 3-in1 Port, MicroSD
• Output Power: 25mW3200mW/500mW/700mW
• Video Transmission: 28ms Low Latency
• Dimensions:
• Air Unit: 44x37.8x14.4mm
• Camera:20.7x19x19mm
• Flight Control System: BetaFlight
• Max Transmission Range: 4km
• Coaxial Cable Length: 100mm
• FOV: 150(D); 122(H); 93(V)
• Goggle Compatibility: DJI
• Closed Loop 4-in-1: Yes
• Frequency Channels: 8
• Shutter: Rolling Shutter
• Sensor: 1/3.2" CMOS
• Effective Pixels: 4 M
• Image: 720p/120fps
• Video Format: MP4
• Video: 1080p/60fps
• Lens: 2.1mm, F/21
• ISO: 100-256000

Includes

• 1x GepRC BNF Mk5 Quad
• 4x Freestyle 4S propellers (pair)
• 1x Battery strap M15x250mm
• 2x Battery strap M20x220mm
• 2x Battery Silicone Pads
• 1x Camera cage carbon top plate
• 1x 3D print mountings combination
• 2x Action camera mount holder
• 1x Set of screws
• 1x Set of screwdrivers
• 1x Antenna fixed tube
