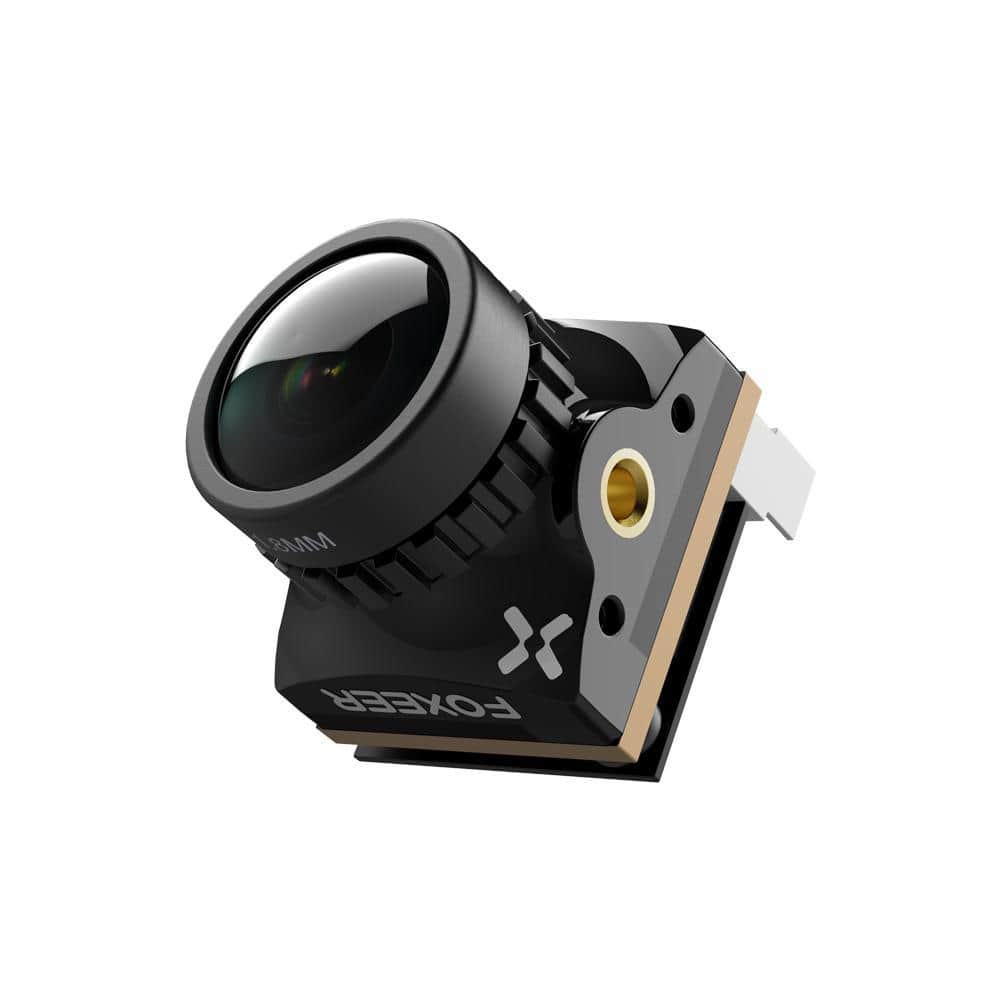

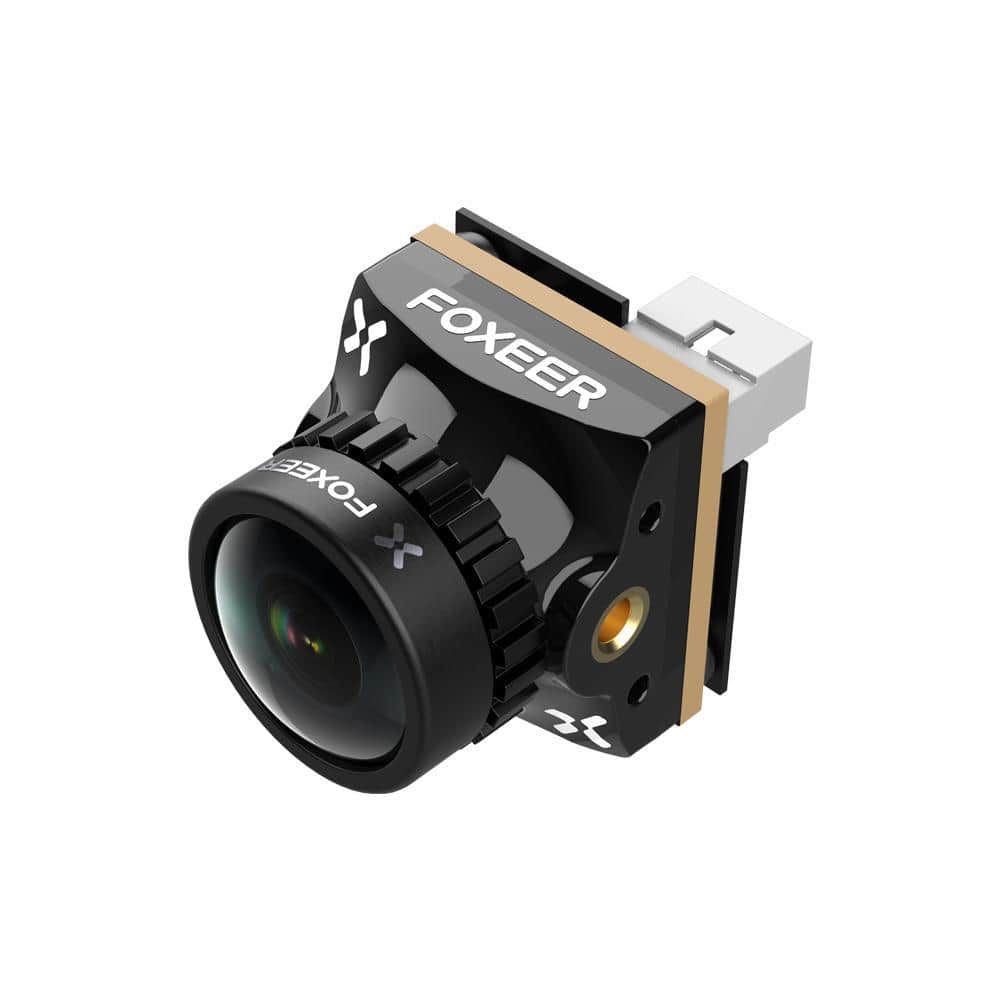

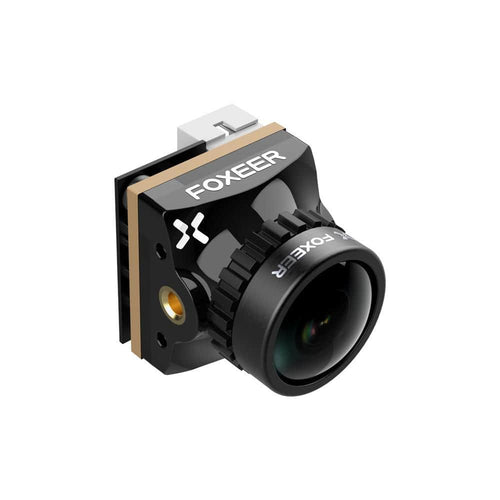

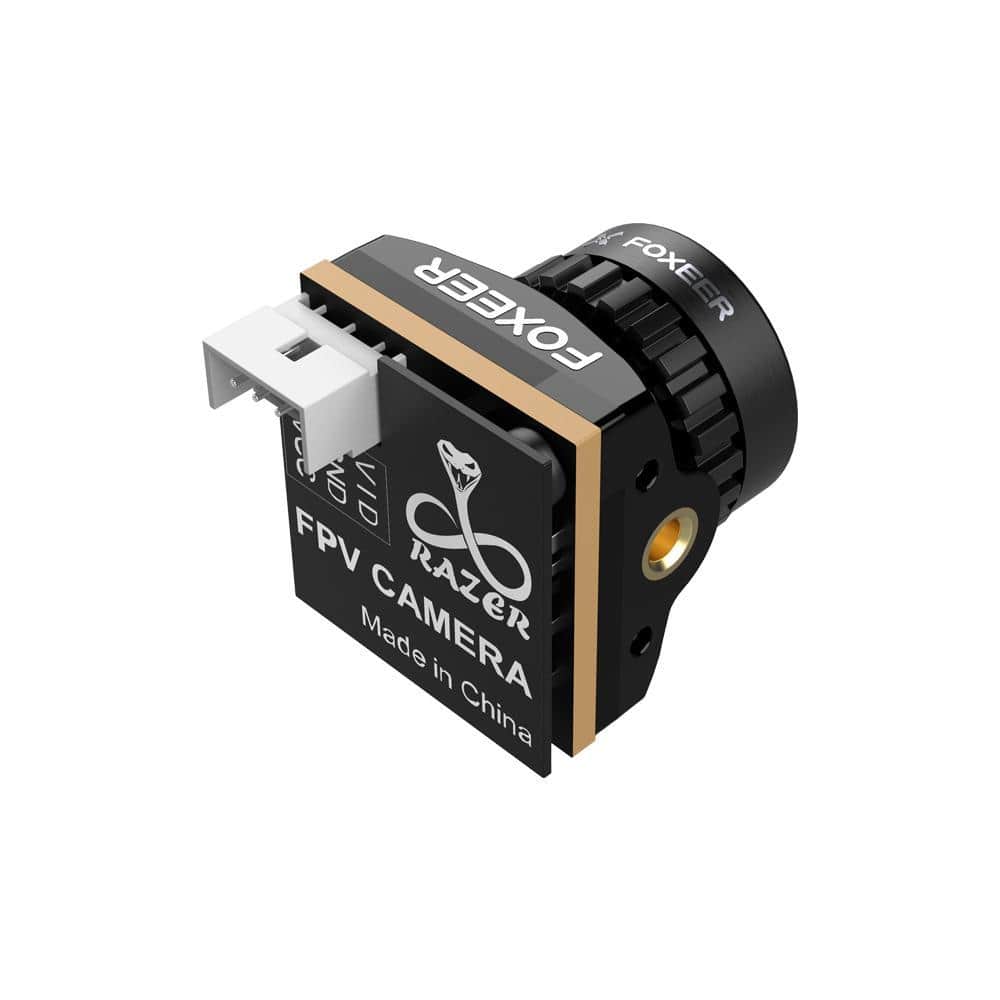

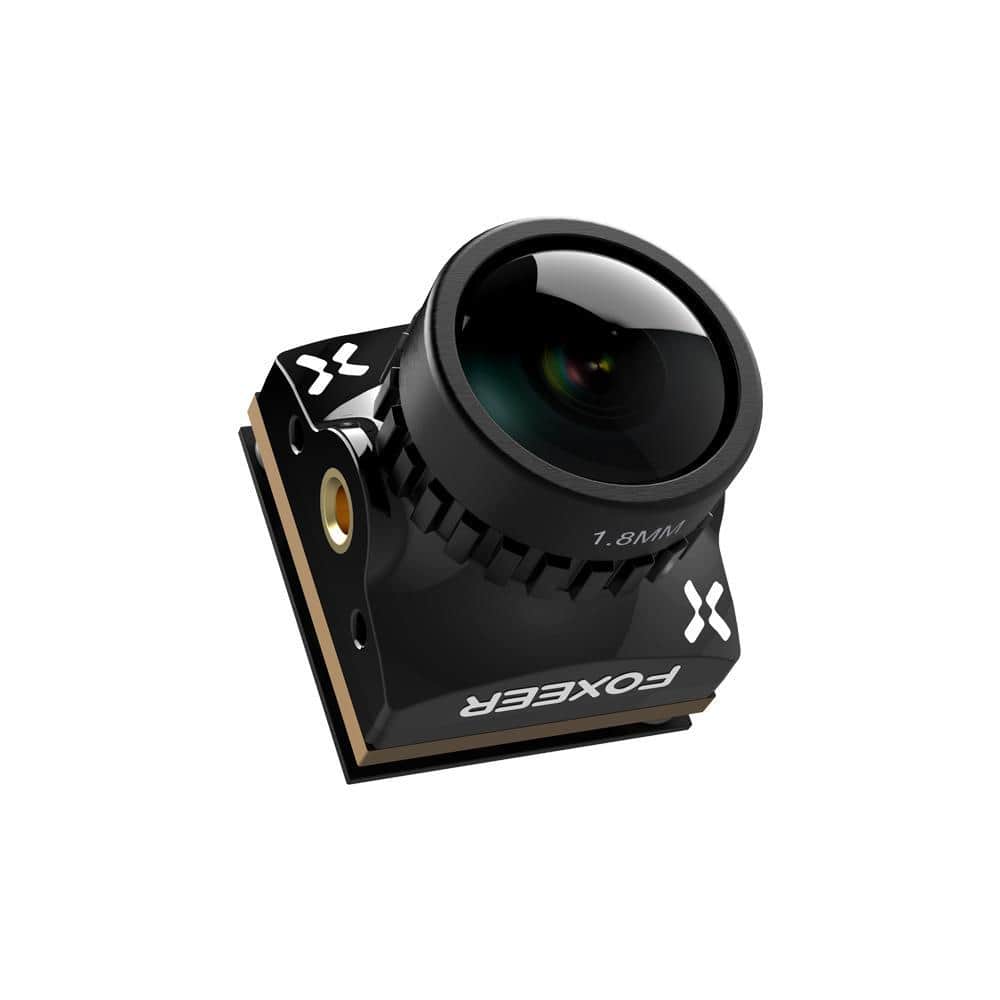

Foxeer Razer Nano 1200TVL CMOS 16:9 NSTC FPV Camera (1.8mm) - Black

$19.89
$19.89 - $19.89
$19.89 - $19.89
$19.89
Out Of Stock
Add to Wishlist
Ask a Question

Details

Description

The wildly popular Razer is now available in a nano form factor! This camera is an incredible value! Also available in nano 4:3, as well as micro and mini sizes.

Be sure to check out all our nano FPV cameras and our entire Foxeer selection!

Features

  • 1200TVL High Definition Natural Image
  • Low Latency
  • Good Low Light Performance
  • NTSC/PAL Switchable
  • Wide Input Voltage Range
  • Supports OSD & Menu Remote Control

Specifications

  • Sensor Type: CMOS 1/3
  • Scale: 16:9
  • TV System: NTSC
  • Resolution: 1200TVL
  • FOV: 4:3: FOV-H 125° / FOV-D 150° ; 16:9: FOV-H 125° / FOV-D 140°
  • Shutter Speed (CCD IRIS): PAL: 1/25 ~ 1/10000 sec; NTSC: 1/30~10000 sec
  • Video Out: CVBS
  • Min. Illimination: 0.01Lux
  • White Balance: Auto
  • DNR: 3DNR
  • WDR: 90db
  • Day/Night: Color
  • Power Requirement: DC 4.5V~7V
  • Working Temperature: -10℃~+50℃ RH90% MAX
  • Working Humidity: 20~80%
  • Storage Temperature: -20℃~+70℃
  • Storage Humidity: 20~95%
  • Dimension: 14x15mm (W*L)(without bracket)
  • Weight: 3.9g

Includes

  • 1x Foxeer Razer Nano Camera
  • 1x  Servo Cable
  • 1x Screws


More Information:

  • SKU: 12062
  • Barcode: 691023494176
