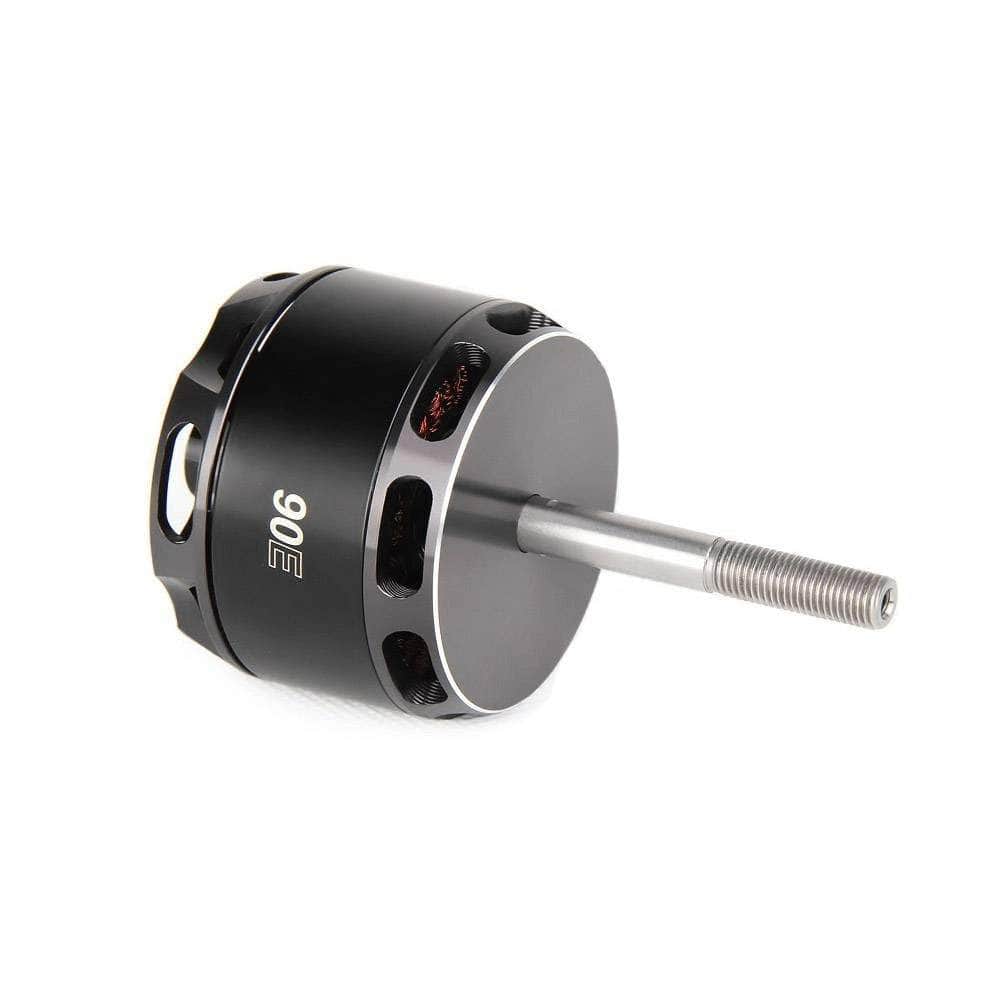

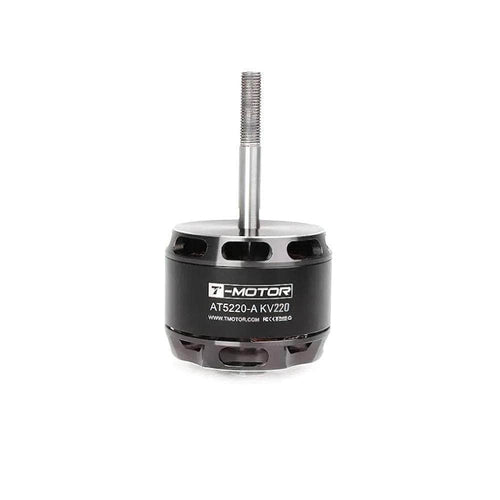

T-Motor AT5220A 20-25CC Long Shaft Fixed Wing Power Motor - 220KV

Description

The T-Motor AT5220 series offers a new motor, specificatlly designed and tested for fixed-wing aircraft.  Its durable, balanced, but powerful. Ready for 6S–12S LiPo setups and capable of handling up to 100A bursts. Perfect for 90E–140E aircraft, these motors are equivalent to 20–25CC gasoline engines, providing unmatched reliability and power.

Check out our other motors, and all our T-Motor products!

Features

• Safety and Long Endurance
• Balanced & Powerful

• Excellent Heat Dissipation

Specifications

• Stator Diameter: 10mm IN, 8mm OUT
• Rated Voltage (LiPo): 6-12S
• Max. Power(180s): 2700W
• Model: T-Motor AT5220A
• Internal Resistance: 36m
• Peak Current(180s): 70A
• Idle Current (10V): 1.8A
• Configuration: 24N28P
• Weight: 450g
• KV: 220

Includes

• T-Motor AT5220A 20-25CC Long Shaft Fixed Wing Power Motor - 220KV
• 1x Hardware Kit
