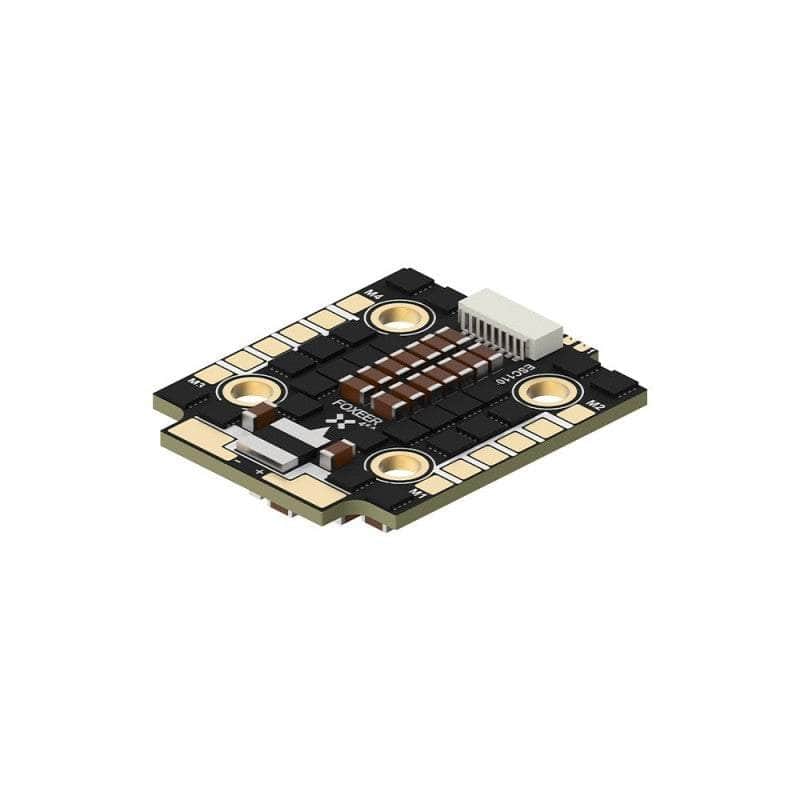

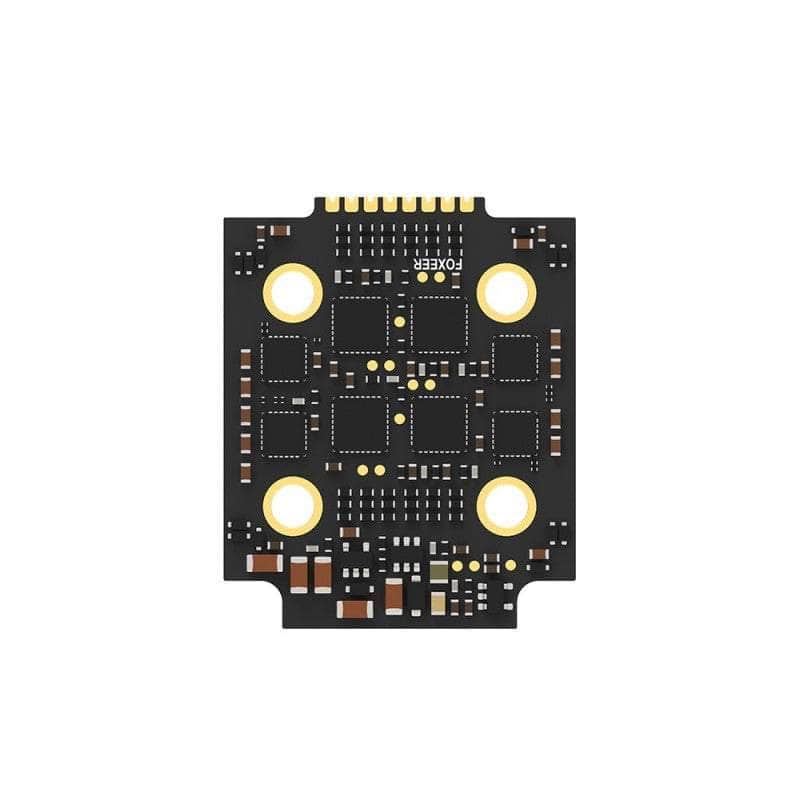

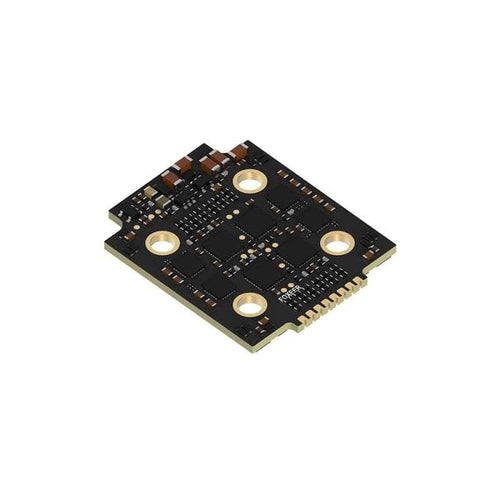

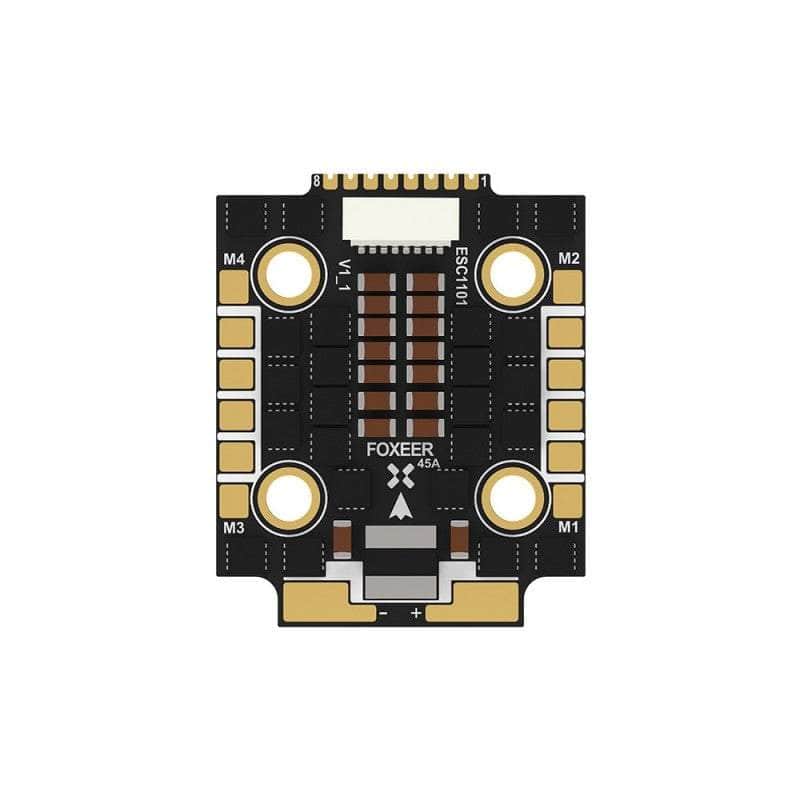

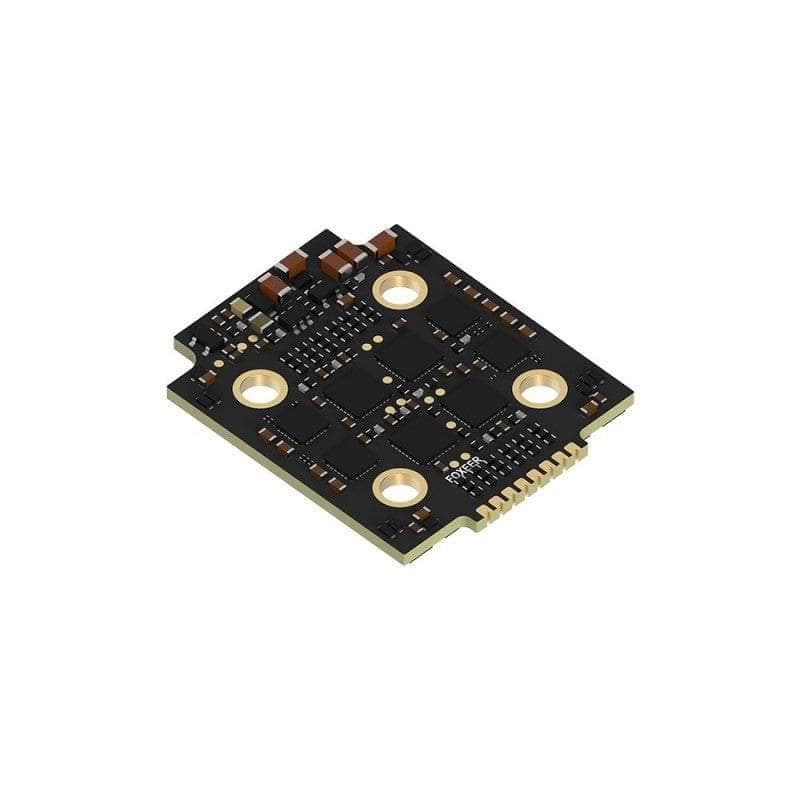

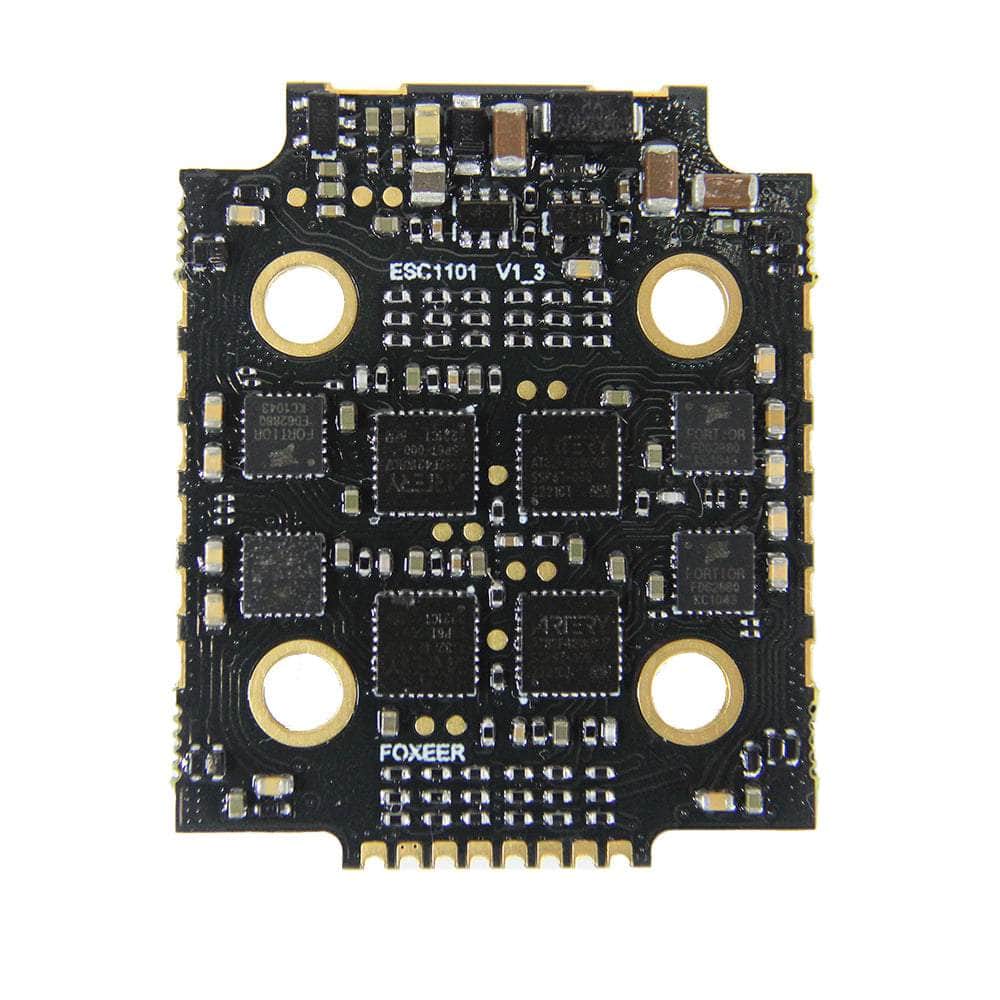

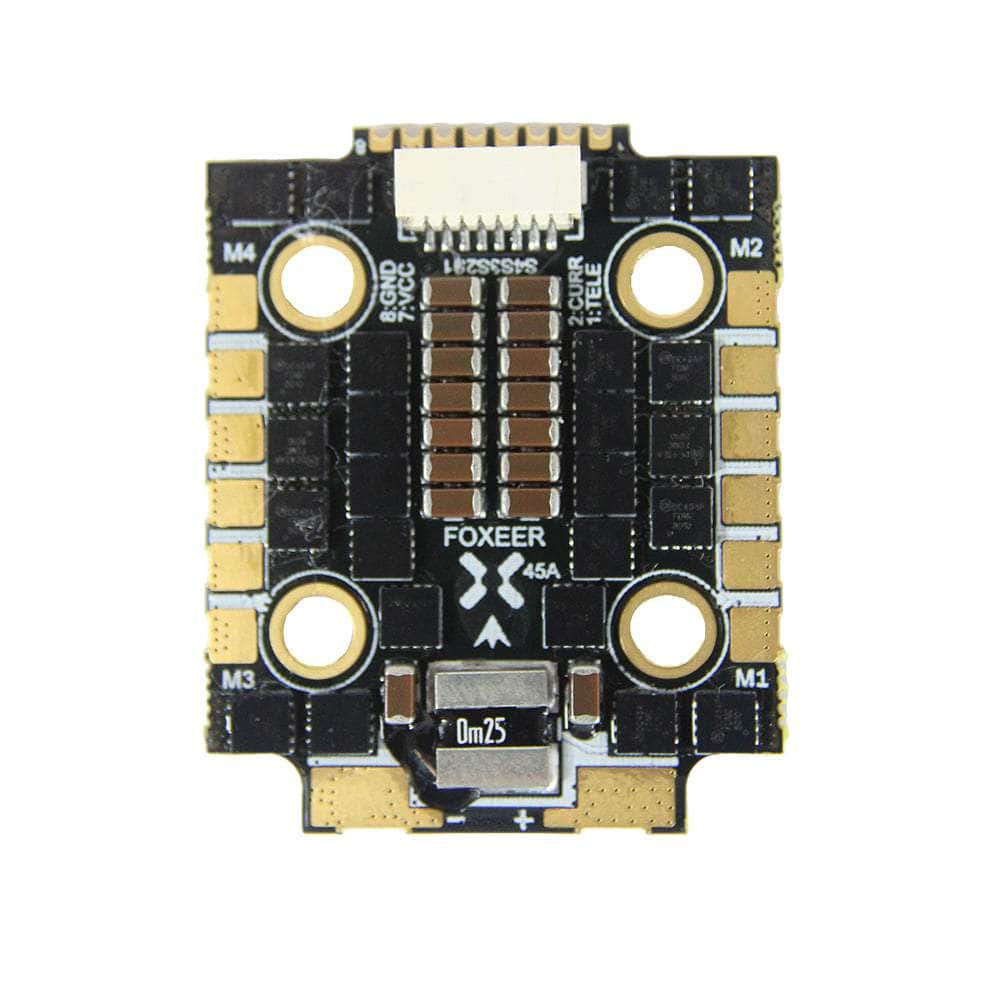

Foxeer Reaper F4 Mini V1.3 128K 32Bit 45A 3-6S 20x20 4in1 ESC

Description

The Foxeer Reaper F4 Mini 128K is the next evolution of the Reaper ESC series. With its low heat generation and high-quality mosfets, this new version has a smoother flight, with fewer desyncs.

Check out the rest of our 20x20 ESCs, as well as the rest of our Foxeer offerings!

Specifications

• Firmware: FOXEER_ReaperM4IN1_F4_45A_128_Multi_32_9

• Continuous /Burst Current: 45Ax4 / 65Ax4

• Input Voltage: DC 10V~26.2V (3-6S Lipo)

• BEC: No

• Telemetry: Supported

• ESC Programming BLHeli32

• Current Scaling:115

• Input Signal: DShot 150/ 300/ 600/ 1200 /MultiShot/ OneShot etc.

• Working Temperature: -20℃ ~ +55℃

• Working Humidity: 20～95%

• Storage Temperature: -20℃ ~ +70℃

• Mounting Hole: 20x20mm, Φ4mm/ M3

• Dimension: 40.5x33x5.5mm

• Weight: 10g

Includes

• 1x Foxeer Reaper F4 Mini V1.3 128K 32Bit 45A 3-6S 20x20 4in1 ESC

Wiring Diagram
