Luma Quads Luma 30 Cinewhoop 3" Micro Frame Kit

$70.84
Original price $70.84 - Original price $70.84
Original price
$70.84 - $70.84
Current price $70.84
In Stock
Add to Wishlist
Ask a Question

Details

Description

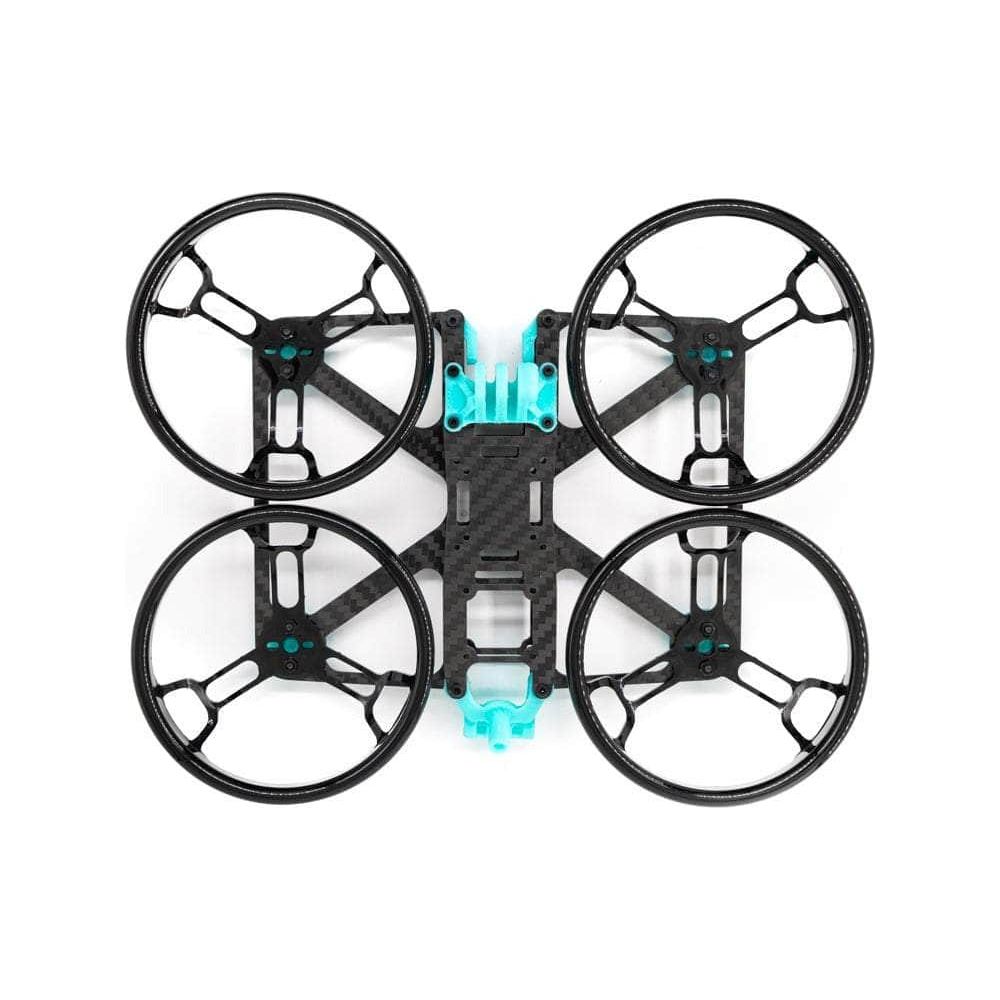

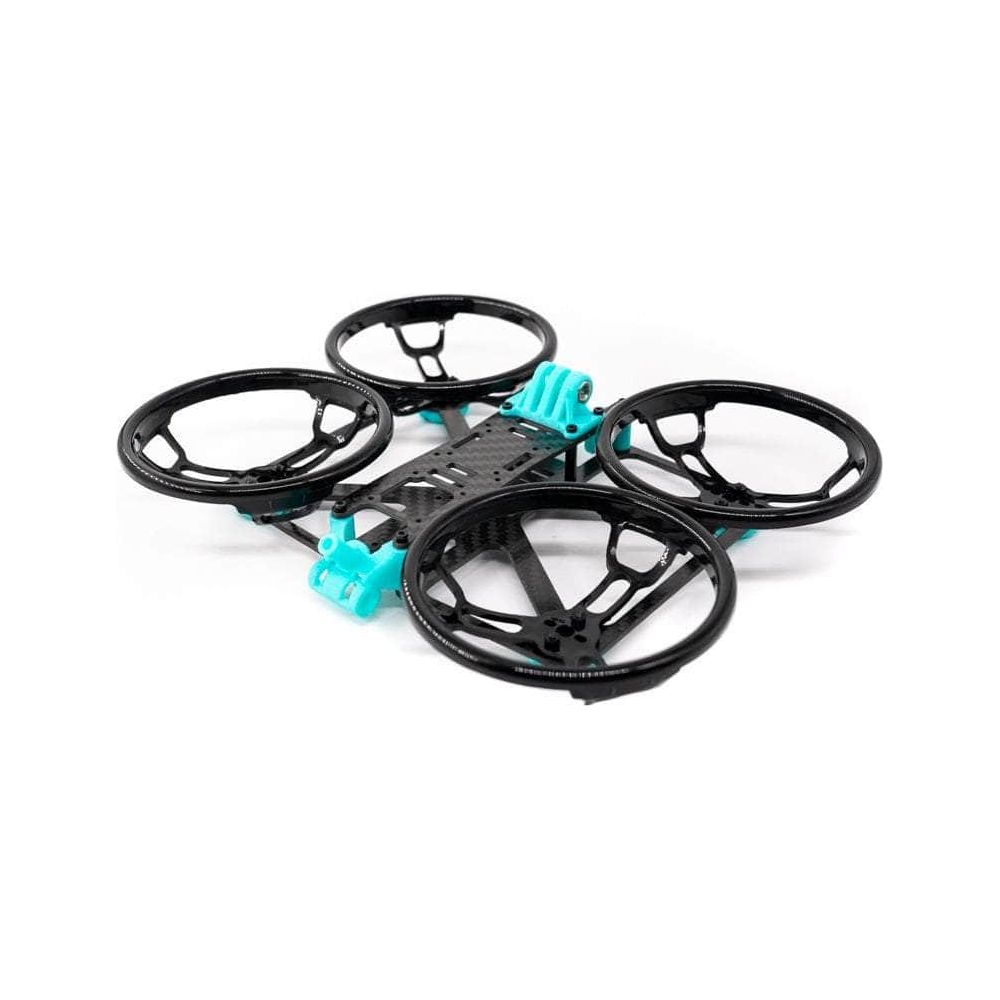

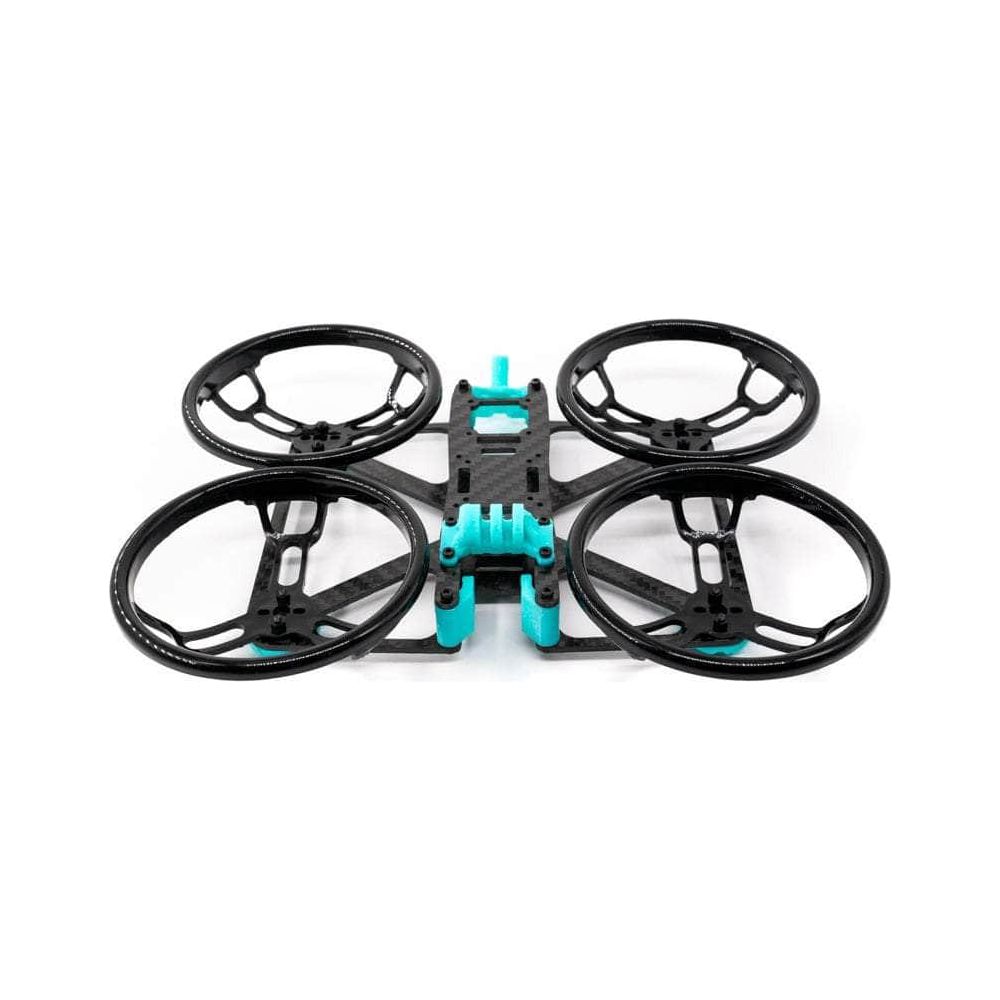

The Luma 30 is an ultra-lightweight and super high-performance 3" cinewhoop that can be powered by the same 6S setup as its predecessor, the Luma 3, while still being able to carry a full-size GoPro. It has the same symmetrical bolt patterns on its top and bottom plates that allow it to be built in "puller" or "pusher" configurations, plus a 15mm slammed deck height for a low center of gravity and room for O3 Air Unit, Vista or analog VTX. Weighing just 85g (Frame hardware and prints) and 238g when fully built (without Gopro), it offers longer flight times and improved maneuverability over other 3" whoops. The only drawback is the durability of the injection-molded guards, which will break if you hit anything hard. To make sure customers are satisfied, they have included five guards in each kit. This version comes with black ducts and blue tpu.

Check out our selection of 3" Frame Kits as well as our Luma Quads Products!

Features

  • HD Vista / analog compatible.
  • Slammed 15mm stack height.
  • Both Mini, Micro, and Nano FPV camera mounts are included - supporting all FPV cameras from 20-14mm.
  • Support for all 3" propellers.
  • Front Standard GoPro mount (suits any GoPro mounting style camera)
  • Symmetrically designed to be built in either "Puller" or "Pusher" configurations.
  • Both SMA and Vista/ Airunit 03 Rear mount with VTX antenna and Immortal T Style Antenna Mount included.
  • Download the 3d model .stl files for this kit here.

Come on, can any other 3" Cinewhoop do moves like this?



The Ideal setup

  Specifications

  • Stack Mounting: 20x20mm and 25.5x25.5mm
  • Rear Mounting: 20x20mm
  • Motor Mount Pattern: 12x12mm M2 & 16x16mm M3
  • Top Plate Thickness: 2mm
  • Bottom Plate Thickness: 2.5mm
  • Motor to Motor: 157.5mm
  • Frame Weight: 85g  (238g built with no battery or HD cam)

Includes

  • 1x Luma Quads Luma 30 Cinewhoop 3" Micro Frame Kit - Black

LUMA 30 FRAME ASSEMBLY GUIDE. V1.0

Kit contents:

HARDWARE BAG BREAKDOWN:

Bag A - MAIN Quantity
M2 8mm Bolt 12x
M2 15mm Standoff 6x
Bag B - STACK
M2 14mm Bolt 4x
M2 Plastic Nut 4x
Bag C - REAR STACK
M2 18mm Bolt 4x
M2 Steel Nut 4x
Bag D - MOTORS
M2 10mm Bolt 16x
M2 Washer 16x
Bag E - HD MOUNT
M2 8mm Bolt 2x
M2 10mm Bolt 2x
M2 Steel Nut 4x
M2 Steel Washer  4x
M5 Steel Nut 1x

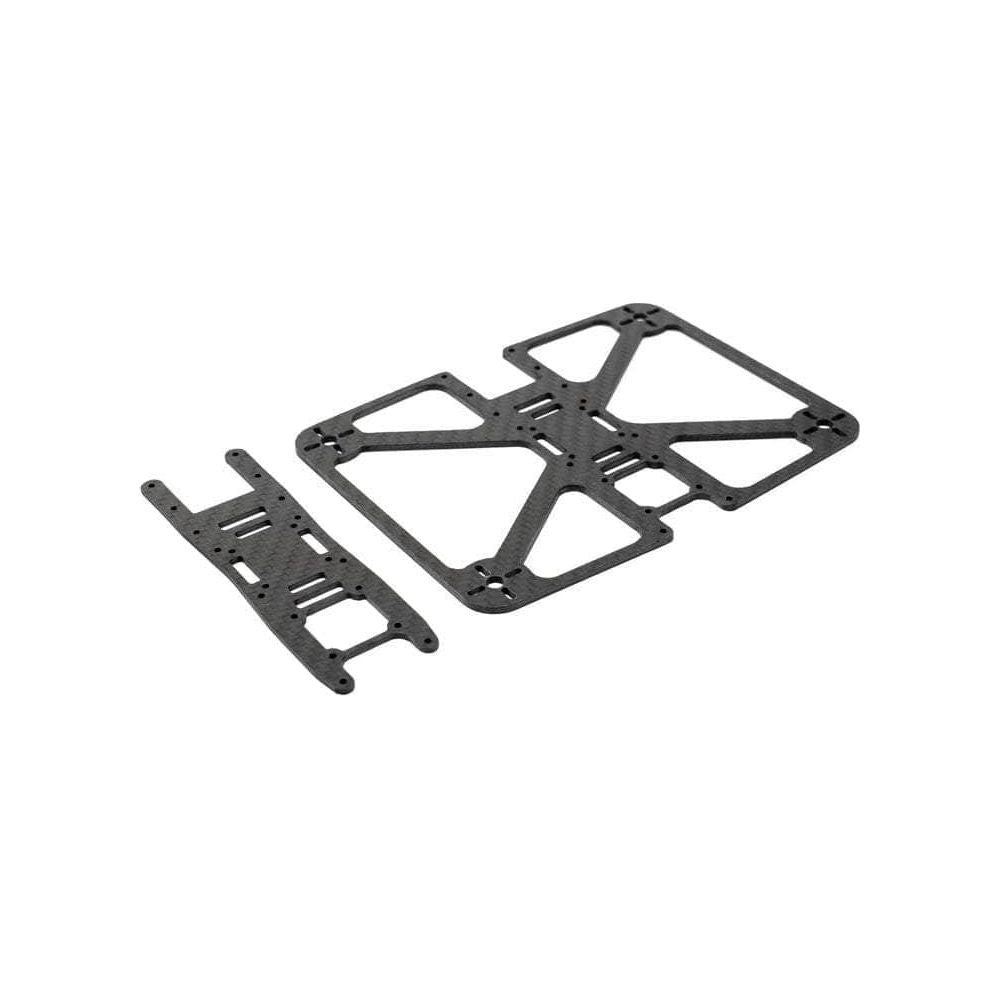

CARBON PARTS.

2mm Top-plate 1x
2.5mm Bottom-plate 1x

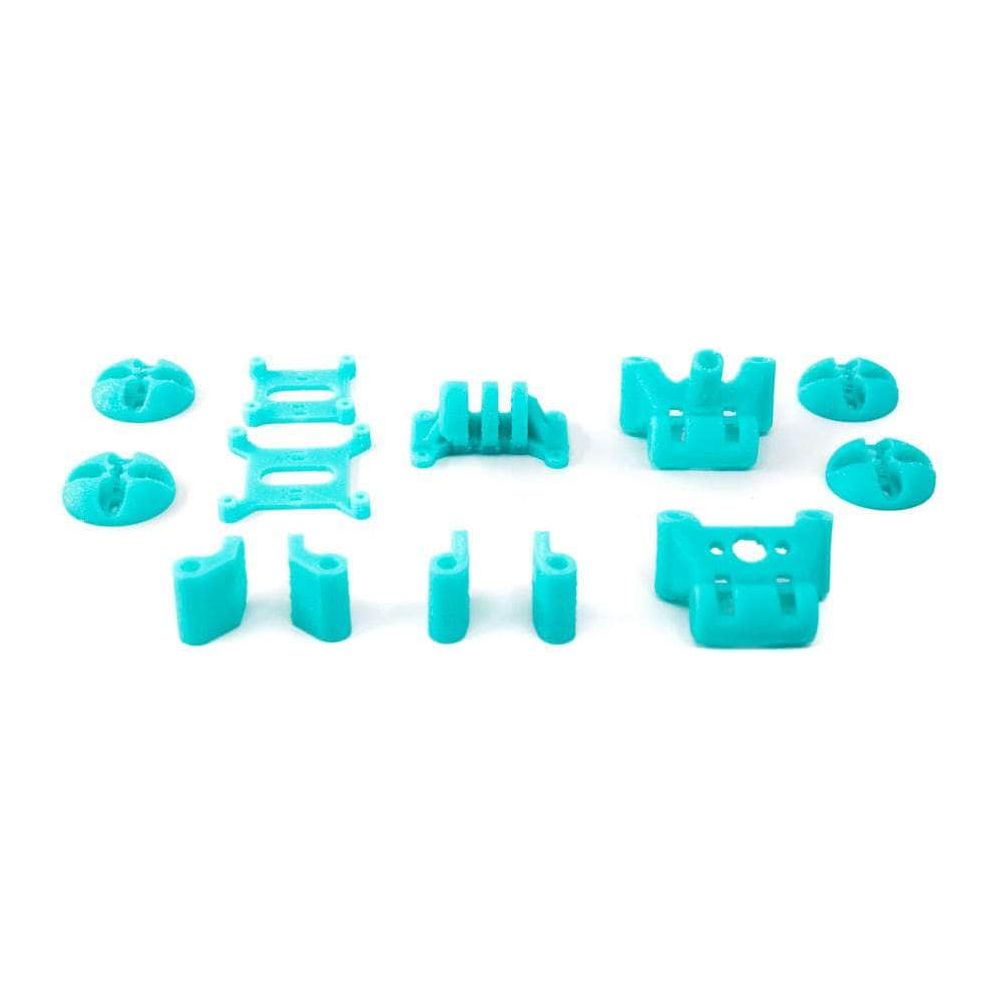

3D PRINTED PARTS.

Front FPV Camera mounts 2x
Front GoPro Hard-mount 1x
Rear Immortal T & Vista Antenna Mount 1x
Rear Immortal T & SMA Antenna Mount 1x
25.5x25.5 Stack RX Mount 1x
Rear 20x20 Analog RX/VTX Mount 1x

Plastic Parts.

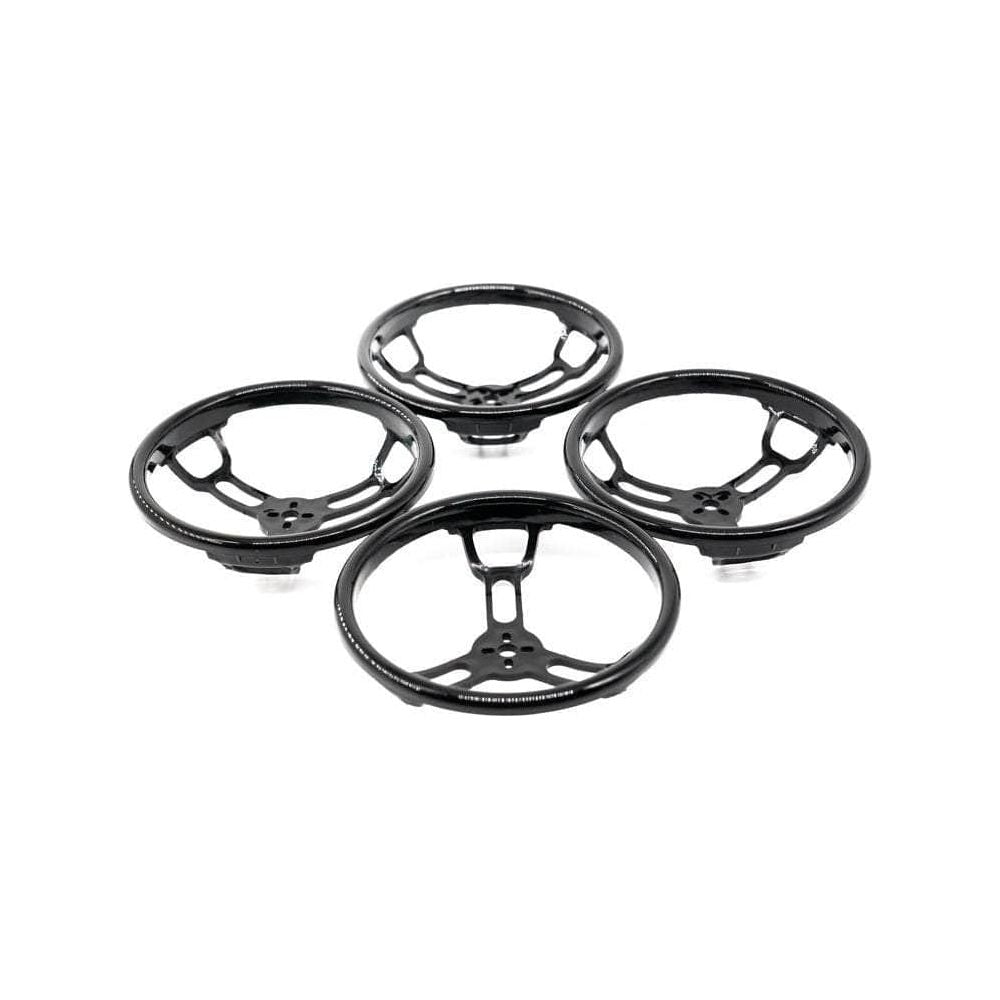

3" Prop Guards 6x

Extras.

Zipties 4x

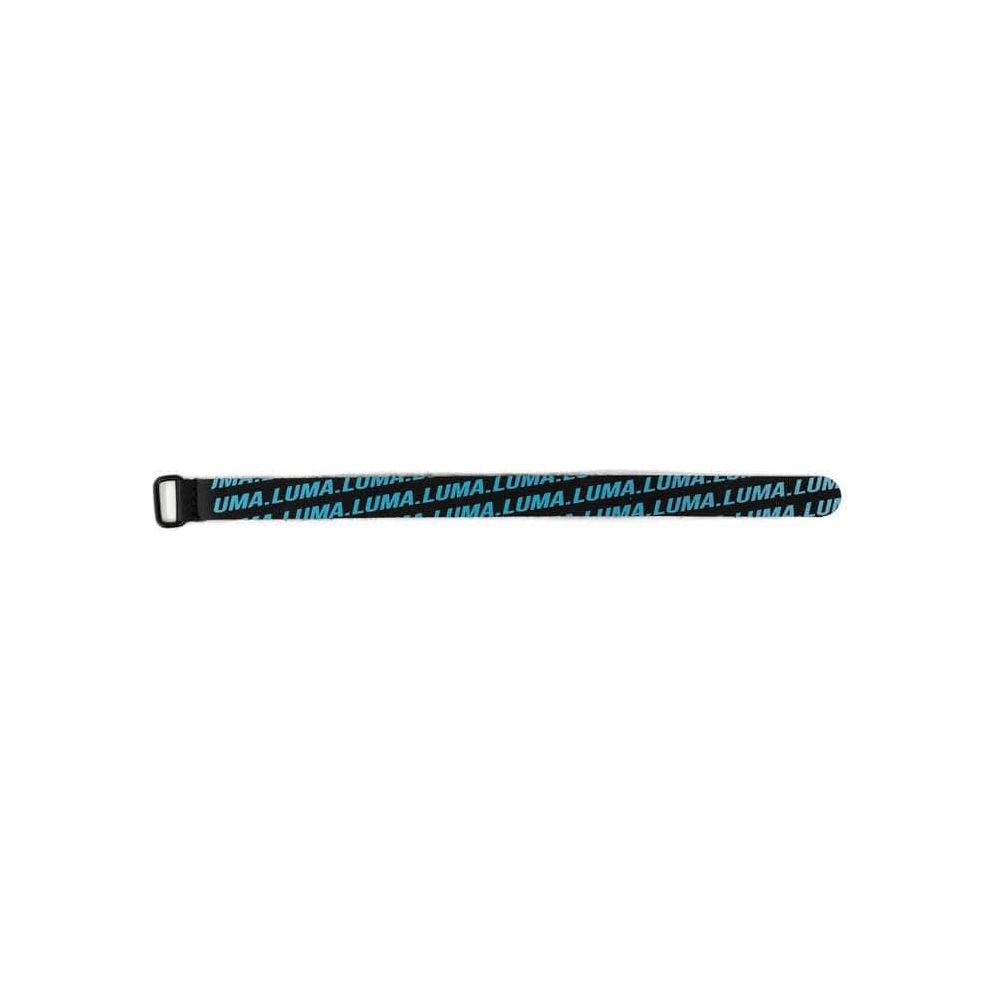

Luma 250mm Lipo Strap. 2x

Assembly guide.

The Luma 30 is designed to be built in either Standard or Pusher configuration.

The following guide is for Standard configuration, if you want to build the Luma 30 as a Pusher the two carbon plates as well as the guards need to be flipped upside down and you attach the HD mount to the Bottom plate and the standoffs to the Top plate instead.

1) HD Mount

Insert 1x M5 Steel Nut into the GP mount as shown.



Secure the Gopro mount to the top plate using 2x 8mm M2 bolts washers and steel nuts through the front 2 holes of the mount.

2) Main Frame.

Install 6x 15mm Standoff onto bottom plate.



Secure with 6x 8mm M2 bolts from below.





Insert front FPV camera mounts over front 2 standoffs.



Insert Rear antenna mount over rear 2 standoffs.

Align top plate over the standoffs

Secure with 4x 8mm M2 bolts

Insert 2 more 8mm bolts with M2 washers through the back 2 holes on the GoPro mount into the middle two standoffs.



3) Prop Guards and bumpers

Align and orientate the prop guards as shown.



Secure the guards and bumpers using 16x 10mm M2 bolts and M2 washers.

These are screwed through the bumpers, carbon plate and guards into the base of the motors.

NOTE: M2 BOLTS HAVE SKINNY CAPHEADS
DO NOT FORGET TO INSTALL THE WASHERS!

DEPENDING ON WHAT MOTORS YOU RUN IT MAY BE NESSASARY TO EXPAND THE CENTER HOLE IN THE GUARDS
BY A FRACTION OF A MM TO ALLOW THE BASE SCREW TO SPIN FREELY.

BE SURE NOT TO LET THE MOTOR BOLTS TOUCH THE WINDINGS OF THE MOTORS

4) Rear Antenna
Secure the Immortal T antenna Into the rear mount using zipties.

5) Other

The included 25.5x25.5mm or 20x20mm RX mounts can be used either on top of main stack to secure an RX if using Vista or in the rear 20x20mm stack mount position for rear mounted Analog VTX/RX.

IMPORTANT:
Do not let electrical components come in contact with the carbon, use spacers that came with your with FC stack and the included RX/VTX Mounts to space your components away from carbon.

More Information:

  • SKU: LUMA-LQL-30-FK-Black
  • Barcode: 6910236001129
