Description

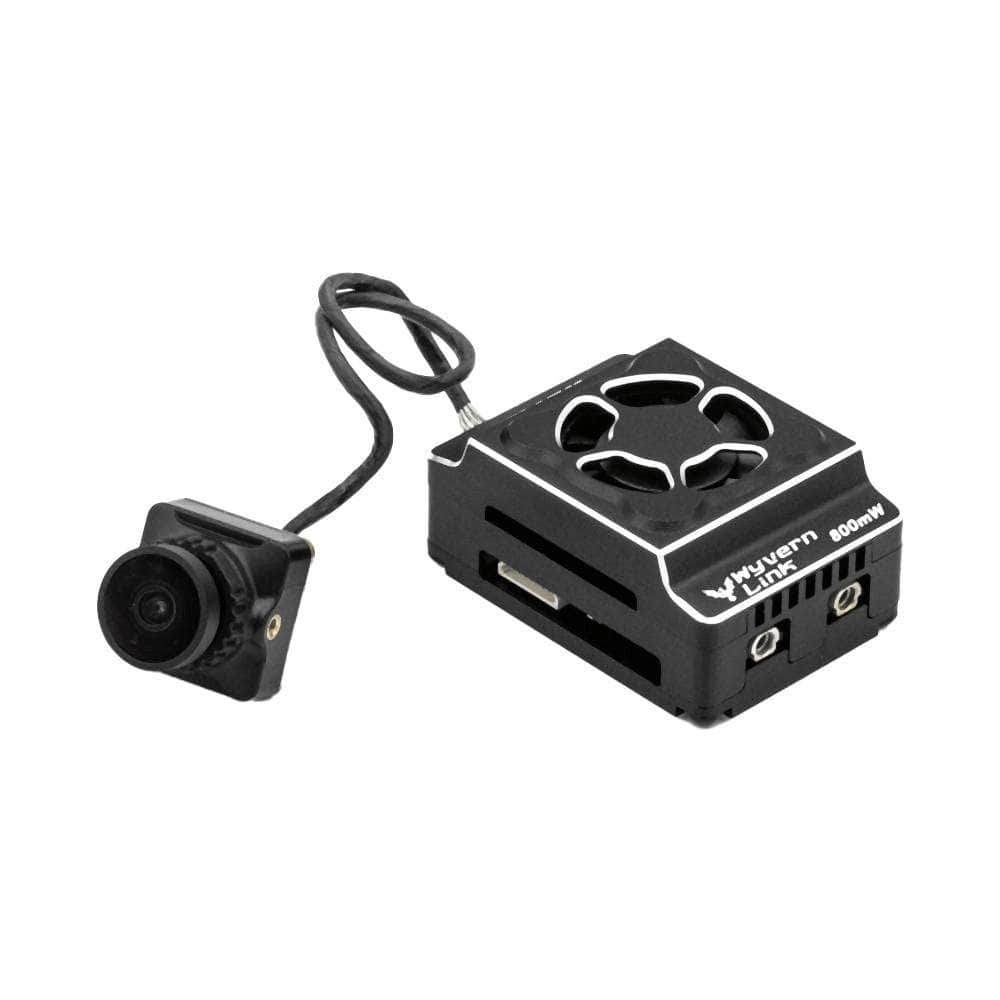

Introducing the EMAX Wyvern Link All-In-One 800mW VTX - a powerful, long-range FPV system built for smooth, stable HD video transmission. Featuring the IMX415 sensor and OpenIPC firmware, it delivers low-latency performance with up to 1080p 90fps or 720p 120fps video. With its durable aluminum frame, active cooling, and easy computer configuration via Ethernet or USB-C, the Wyvern Link is ready for serious pilots who want top-tier image quality and control.

Check out our EMAX selection and all our VTXs!

Features

• The Alpha release program offers early access to cutting-edge FPV technology with the chance to influence development.
• Video output options include up to 1080p at 90fps or 720p at 120fps for smooth, low-latency streaming.
• Multiple resolution and frame rate settings allow balancing image clarity and latency for any flight style.
• IMX415 image sensor delivers crisp, high-definition image quality with excellent low-light performance
• Active cooling system with a built-in fan prevents overheating and thermal throttling
• OpenIPC firmware provides a fully customizable, open-source HD video platform.
• Easy configuration via USB-C and Ethernet adapter for direct computer setup
• 800mW transmitter power ensures a strong, stable, long-range signal
• Durable aluminum frame protects internal components from impacts
• Broad drone compatibility optimized for 5-inch and larger drones

Specifications

• Weight: 48.2g (Including camera, not including antenna cable)
• Video specifications: 1280x720 / 1920x1080
• Hole spacing: 20x20mm / 25.5x25.5mm
• Camera Dimensions: 19x19mm
• Video FPS: 120fps / 60fps
• Camera sensor: IMX415
• Input Voltage: 2–6S
• Aperture: 2.0mm

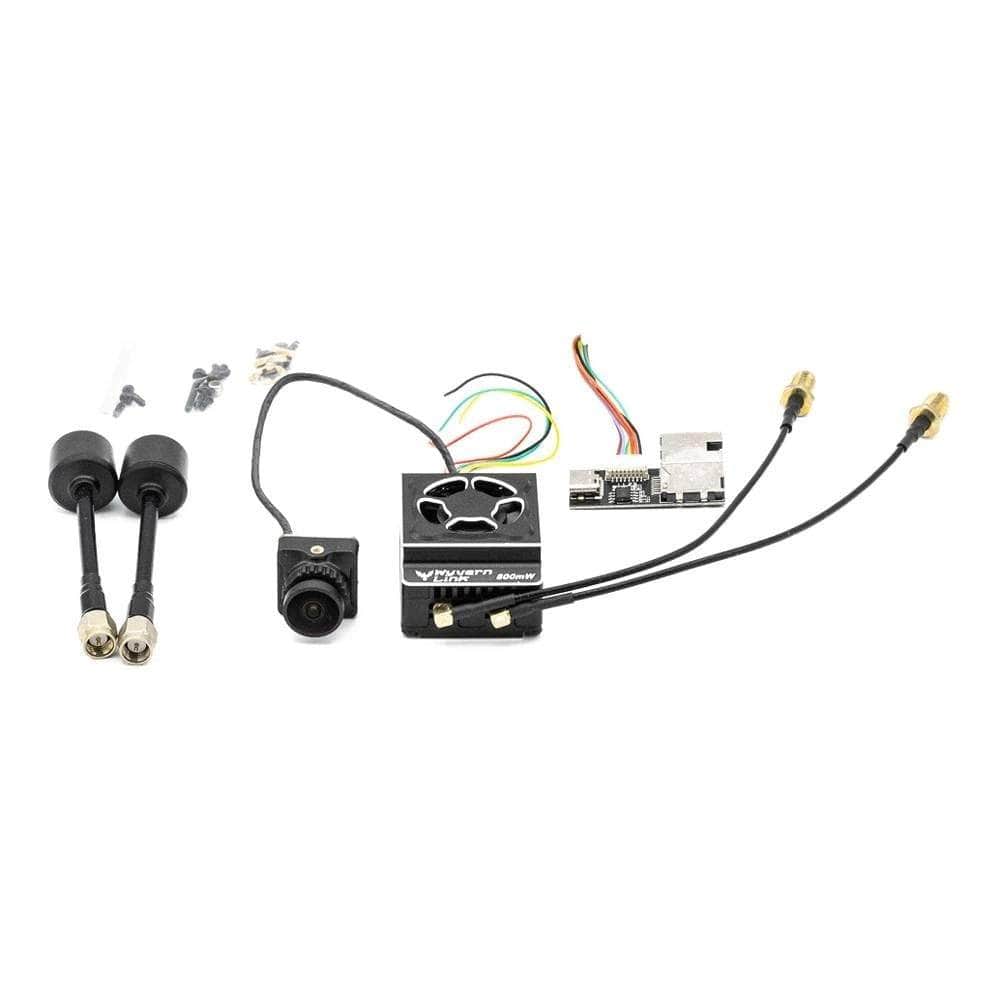

Includes

• 1x EMAX Wyvern Link All-In-One 800mW VTX
• 1x Camera (Sony IMX415 sensor, 19x19)
• 2x Antenna extension cable
• 1x 8-pin downloader cable
• 1x Screw accessory pack
• 2x Matching antennas
• 1x 4-pin power cable
• 1x MIPI cable
